Dixon Orange LPG hose, 5mm x 100 m

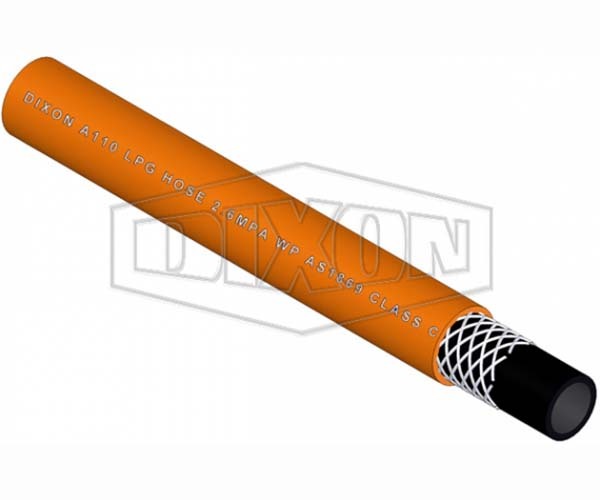

This Dixon orange rubber hose is made for transferring LPG for welding, cutting and allied processes, and it is designed to meet AS/NZS 1869 Class C. It has a black NBR/PVC blend tube, a smooth orange NBR/PVC cover with a pin-pricked finish and polyester yarn reinforcement, and it is extruded. It comes in the 5mm and 10mm sizes in 100 m coils.

All sizes are rated at 375 PSI (25 bar) working pressure and 1500 PSI (100 bar) burst, for temperatures from -20 to 70°C. The hose is ozone, weather and abrasion resistant.

Where this product is used

• Transferring LPG for welding, cutting and allied processes
• LPG lines where an orange, pin-pricked cover is specified

Features

• Tube: NBR/PVC blend, black, cover: NBR/PVC, smooth, orange, pin pricked
• Reinforcement: polyester yarn, extruded
• Working pressure 375 PSI (25 bar), burst 1500 PSI (100 bar)
• Temperature range -20 to 70°C
• Designed to meet AS/NZS 1869 Class C

Key specifications

Choosing the right option

LPG is a flammable gas, so check the hose, fittings and regulators are all rated for LPG and for the pressure you run, and have the assembly made up and tested by a competent person.
