Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, alternate view
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, view 3
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, view 4
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, alternate view
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, view 3
Dixon Rubber Multi-Purpose Non-Conductive Hose, 6 mm to 50 mm, view 4

Dixon A104010BL020 10 mm x 20 m Blue Rubber Multi-Purpose Non-Conductive Hose

$148.27
$148.27
Inc. GST

Available

This Dixon extruded rubber hose is a multi-purpose hose that Dixon lists for conveying air, oil, water, kerosene, some chemicals and other media where oil resistance matters (manufacturer-stated). It has a black NBR blend tube, a red, yellow or blue NBR blend cover and polyester yarn reinforcement, and it is non-conductive and UV stabilised (manufacturer-stated). The coloured covers allow colour coding where cross contamination of media could affect safe operation (manufacturer-stated).

Dixon rates the A104 range from 300 PSI (20 bar) at the 6 to 25 mm sizes down to 200 PSI (14 bar) at 50.8 mm, with a temperature range of -20 to 100 degrees C (manufacturer-stated). The store lists sizes from 6 to 50 mm in red, with 10 to 25 mm also in blue and yellow, as 20 m and 100 m coils and 30 m coils for the larger sizes.

Where this product is used

  • Conveying air, oil, water, kerosene and some chemicals where oil resistance is needed (manufacturer-stated).
  • Colour-coded lines where red, yellow and blue hose keep different media apart (manufacturer-stated).
  • Lines where a non-conductive hose is wanted.

Features

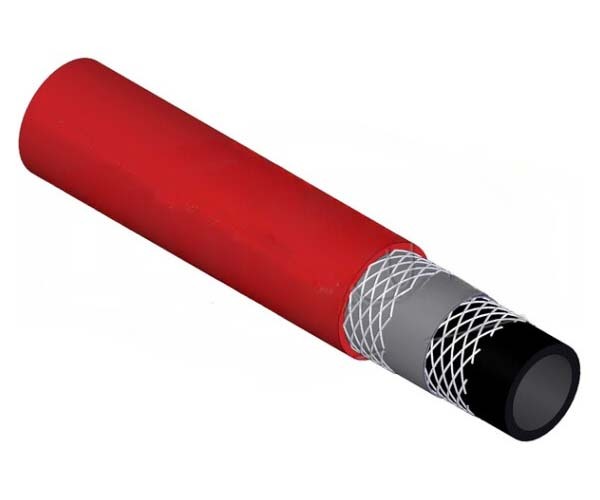

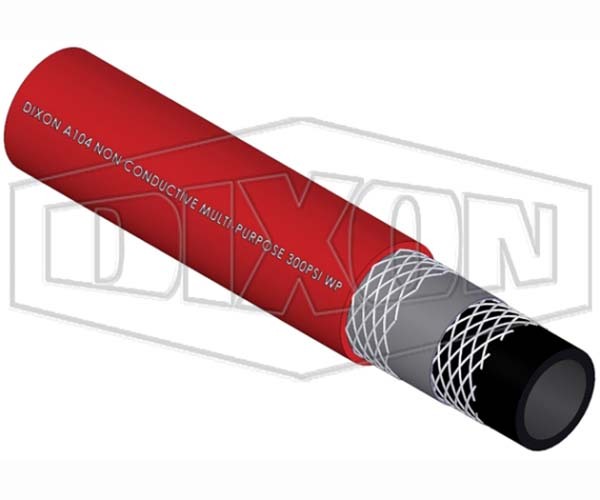

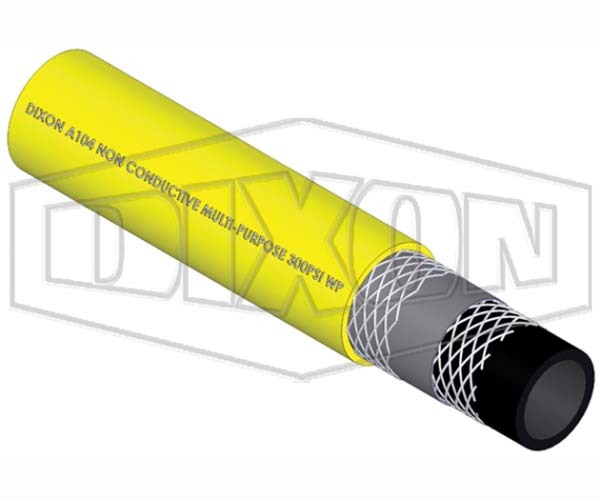

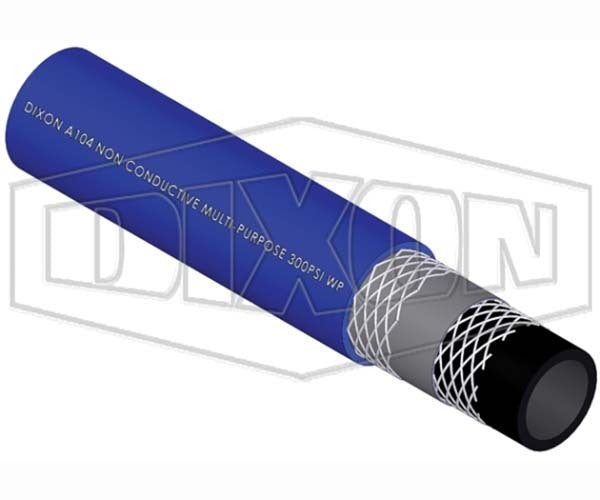

  • Tube: NBR blend, black; cover: NBR blend in red, yellow or blue; polyester yarn reinforcement (manufacturer-stated)
  • Working pressure 300 PSI (20 bar) up to 25.4 mm, 250 PSI (17 bar) at 31.8 and 38.1 mm, 200 PSI (14 bar) at 50.8 mm (manufacturer-stated)
  • Temperature range -20 to 100 degrees C (manufacturer-stated)
  • Non-conductive, UV stabilised and oil mist resistant (manufacturer-stated)
  • Red, yellow and blue covers for colour coding (manufacturer-stated)

Common specifications

Specification Detail
Tube NBR blend, black
Cover NBR blend, red, yellow or blue
Reinforcement Polyester yarn
Working pressure 300 PSI (20 bar) to 25.4 mm; 250 PSI (17 bar) at 31.8 and 38.1 mm; 200 PSI (14 bar) at 50.8 mm
Burst pressure 1200 PSI (80 bar) to 25.4 mm; 1000 PSI (68 bar) at 31.8 and 38.1 mm; 800 PSI (56 bar) at 50.8 mm
Temperature -20 to 100 degrees C
Conductivity Non-conductive
Lengths 20 m and 100 m coils; 30 m coils for 32 to 50 mm; 5 m and 10 m cut lengths (store options)

Key specifications

Dixon part number Size Colour Length Catalogue ID (mm) Catalogue OD (mm) Working pressure Bend radius (mm) Weight (kg/m)
A104010BL020 10 mm Blue 20 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104010BL100 10 mm Blue 100 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104012BL020 12.5 mm Blue 20 m 12.7 22 300 PSI (20 bar) 100 0.40
A104012BL100 12.5 mm Blue 100 m 12.7 22 300 PSI (20 bar) 100 0.40
A104020BL 19 mm Blue 5 m 19.1 30.2 300 PSI (20 bar) 155 0.67
A104020BL020 19 mm Blue 20 m 19.1 30.2 300 PSI (20 bar) 155 0.67
A104025BL020 25 mm Blue 20 m 25.4 38 300 PSI (20 bar) 205 1.00
A104025BL100 25 mm Blue 100 m 25.4 38 300 PSI (20 bar) 205 1.00
A104006020 6 mm Red 20 m 6.4 15.9 300 PSI (20 bar) 50 0.29
A104006100 6 mm Red 100 m 6.4 15.9 300 PSI (20 bar) 50 0.29
A104008020 8 mm Red 20 m 7.9 17 300 PSI (20 bar) 65 0.28
A104008100 8 mm Red 100 m 7.9 17 300 PSI (20 bar) 65 0.28
A104010020 10 mm Red 20 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104010100 10 mm Red 100 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104012020 12.5 mm Red 20 m 12.7 22 300 PSI (20 bar) 100 0.40
A104012100 12.5 mm Red 100 m 12.7 22 300 PSI (20 bar) 100 0.40
A104016020 16 mm Red 20 m 15.9 26 300 PSI (20 bar) 125 0.52
A104016100 16 mm Red 100 m 15.9 26 300 PSI (20 bar) 125 0.52
A104020020 19 mm Red 20 m 19.1 30.2 300 PSI (20 bar) 155 0.67
A104020100 19 mm Red 100 m 19.1 30.2 300 PSI (20 bar) 155 0.67
A104025020 25 mm Red 20 m 25.4 38 300 PSI (20 bar) 205 1.00
A104025100 25 mm Red 100 m 25.4 38 300 PSI (20 bar) 205 1.00
A10403230 32 mm Red 30 m 31.8 45 250 PSI (17 bar) 255 1.25
A10404030 38 mm Red 30 m 38.1 53 250 PSI (17 bar) 305 1.68
A104050 50 mm Red 10 m 50.8 67 200 PSI (14 bar) 405 2.36
A10405030 50 mm Red 30 m 50.8 67 200 PSI (14 bar) 405 2.36
A104010YE020 10 mm Yellow 20 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104010YE100 10 mm Yellow 100 m 9.5 18.2 300 PSI (20 bar) 75 0.30
A104012YE020 12.5 mm Yellow 20 m 12.7 22 300 PSI (20 bar) 100 0.40
A104012YE100 12.5 mm Yellow 100 m 12.7 22 300 PSI (20 bar) 100 0.40
A104025YE020 25 mm Yellow 20 m 25.4 38 300 PSI (20 bar) 205 1.00
A104025YE100 25 mm Yellow 100 m 25.4 38 300 PSI (20 bar) 205 1.00

ID, OD, pressure, bend radius and weight are the A104 figures printed in Dixon's Industrial Hose catalogue for the matching size. The catalogue lists part numbers ending 020 as the 20 m coil, 100 as the 100 m coil and 30 as the 30 m coil. Store sizes 6, 8, 10, 12.5, 16, 19, 25, 32, 38 and 50 mm are the 6.4, 7.9, 9.5, 12.7, 15.9, 19.1, 25.4, 31.8, 38.1 and 50.8 mm catalogue sizes.

Selecting the right option

Choose the colour to suit your colour-coding scheme and the size from your fitting bore. Check the working pressure for the size you pick, because it drops from 300 to 200 PSI as the size increases. Dixon lists the hose for oil, kerosene and some chemicals, so check the actual media against the NBR tube and cover before you use it with chemicals. For an uncoloured general air and water hose see the A101 range in Related products.

Related products

Related Dixon hose: Dixon Rubber General Purpose Black Hose, Dixon Rubber Contractors Yellow Air Hose, Dixon 12.5mm x 60m ID Rubber Hose Multi-Purpose Non-Conductive Red and Dixon Rubber Super Heavy Duty Air & Water Delivery Hose.
Product Highlights −

This Dixon extruded rubber hose is a multi-purpose hose that Dixon lists for conveying air, oil, water, kerosene, some chemicals and other media where oil resistance matters (manufacturer-stated). It has a black NBR blend tube, a red, yellow or blue NBR blend cover and polyester yarn reinforcement, and it is non-conductive and UV stabilised (manufacturer-stated). The coloured covers allow colour coding where cross contamination of media could affect safe operation (manufacturer-stated).

Dixon rates the A104 range from 300 PSI (20 bar) at the 6 to 25 mm sizes down to 200 PSI (14 bar) at 50.8 mm, with a temperature range of -20 to 100 degrees C (manufacturer-stated). The store lists sizes from 6 to 50 mm in red, with 10 to 25 mm also in blue and yellow, as 20 m and 100 m coils and 30 m coils for the larger sizes.
