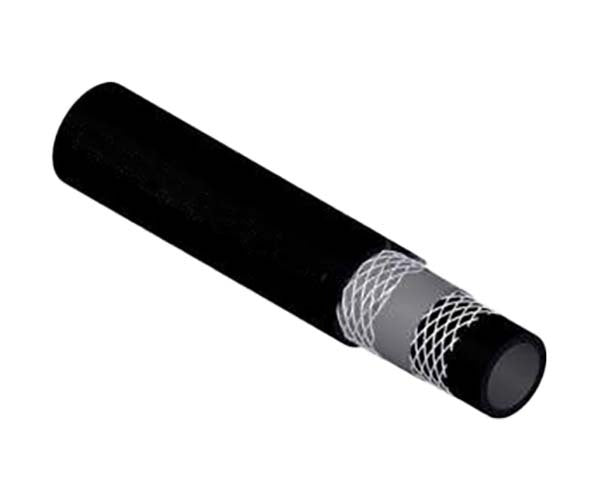

Dixon A101006020 6 mm x 20 m Rubber General Purpose Black Hose
Available

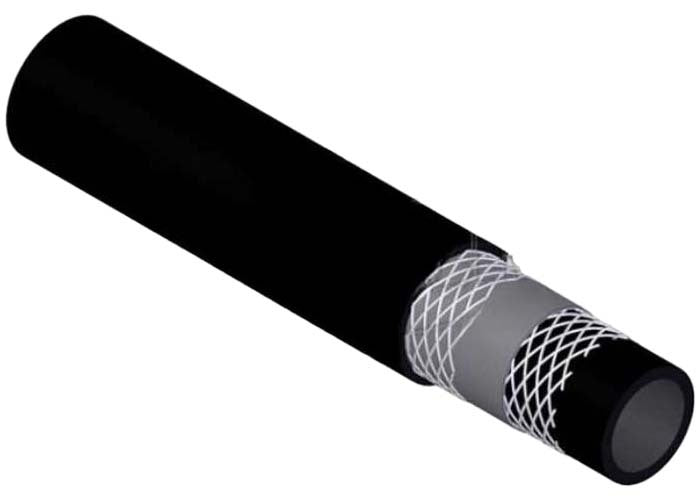

This Dixon rubber hose is a general purpose air and water hose that Dixon lists for industrial, agricultural and construction use where oil is not a significant factor (manufacturer-stated). It has a black SBR blend tube, a smooth black SBR blend cover and polyester yarn reinforcement, and it is extruded. The store lists seven sizes from 6 to 25 mm, each as a 10 m cut length, a 20 m coil and a 100 m coil.
Dixon rates every size at 200 PSI (14 bar) working pressure and 696 PSI (48 bar) burst, for temperatures from -20 to 70 degrees C (manufacturer-stated). The hose is abrasion, ozone, weather and oil mist resistant (manufacturer-stated).
Where this product is used
- General purpose air and water lines in industrial, agricultural and construction work (manufacturer-stated).
- Air tool leads and workshop air lines where oil is not a significant factor (manufacturer-stated).
Features
- Tube: SBR blend, black; cover: SBR blend, smooth, black; polyester yarn reinforcement (manufacturer-stated)
- Working pressure 200 PSI (14 bar), burst 696 PSI (48 bar) (manufacturer-stated)
- Temperature range -20 to 70 degrees C (manufacturer-stated)
- Abrasion, ozone, weather and oil mist resistant; extruded (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | SBR blend, black |
| Cover | SBR blend, smooth, black |
| Reinforcement | Polyester yarn |
| Working pressure | 200 PSI (14 bar) |
| Burst pressure | 696 PSI (48 bar) |
| Temperature | -20 to 70 degrees C |
| Sizes on this page | 6, 8, 10, 12, 16, 19, 25 mm |
| Lengths | 10 m cut length, 20 m and 100 m coils (store options) |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A101006 | 6 mm | 10 m | 6.4 | 13 | 50 | 0.19 |
| A101006020 | 6 mm | 20 m | 6.4 | 13 | 50 | 0.19 |
| A101006100 | 6 mm | 100 m | 6.4 | 13 | 50 | 0.19 |
| A101008 | 8 mm | 10 m | 7.9 | 15 | 65 | 0.22 |
| A101008020 | 8 mm | 20 m | 7.9 | 15 | 65 | 0.22 |
| A101008100 | 8 mm | 100 m | 7.9 | 15 | 65 | 0.22 |
| A101010 | 10 mm | 10 m | 9.5 | 17.2 | 75 | 0.30 |
| A101010020 | 10 mm | 20 m | 9.5 | 17.2 | 75 | 0.30 |
| A101010100 | 10 mm | 100 m | 9.5 | 17.2 | 75 | 0.30 |
| A101012 | 12 mm | 10 m | 12.7 | 22 | 100 | 0.47 |
| A101012020 | 12 mm | 20 m | 12.7 | 22 | 100 | 0.47 |
| A101012100 | 12 mm | 100 m | 12.7 | 22 | 100 | 0.47 |
| A101016 | 16 mm | 10 m | 15.9 | 25 | 125 | 0.51 |
| A101016020 | 16 mm | 20 m | 15.9 | 25 | 125 | 0.51 |
| A101016100 | 16 mm | 100 m | 15.9 | 25 | 125 | 0.51 |
| A101020 | 19 mm | 10 m | 19.1 | 29.4 | 155 | 0.65 |
| A101020020 | 19 mm | 20 m | 19.1 | 29.4 | 155 | 0.65 |
| A101020100 | 19 mm | 100 m | 19.1 | 29.4 | 155 | 0.65 |
| A101025 | 25 mm | 10 m | 25.4 | 36.5 | 205 | 0.97 |
| A101025020 | 25 mm | 20 m | 25.4 | 36.5 | 205 | 0.97 |
| A101025100 | 25 mm | 100 m | 25.4 | 36.5 | 205 | 0.97 |
ID, OD, bend radius and weight are the A101 figures printed in Dixon's Industrial Hose catalogue and A101 data sheet. The catalogue lists the part numbers ending 020 as the 20 m coil and 100 as the 100 m coil. The store sizes 6, 8, 10, 12, 16, 19 and 25 mm are the 6.4, 7.9, 9.5, 12.7, 15.9, 19.1 and 25.4 mm catalogue sizes.
Selecting the right option
Pick the size from your tool or fitting bore and the length from the run you need; the 10 m cut length suits short leads and the coils suit longer runs. Dixon lists this hose for air and water where oil is not a significant factor, so for oil or fuel use an oil resistant hose such as the A450 or A430 ranges. If you want a colour-coded hose, see the A104 range in Related products.
