Dixon A10202020 19 mm x 20 m Rubber Contractors Yellow Air Hose
Available

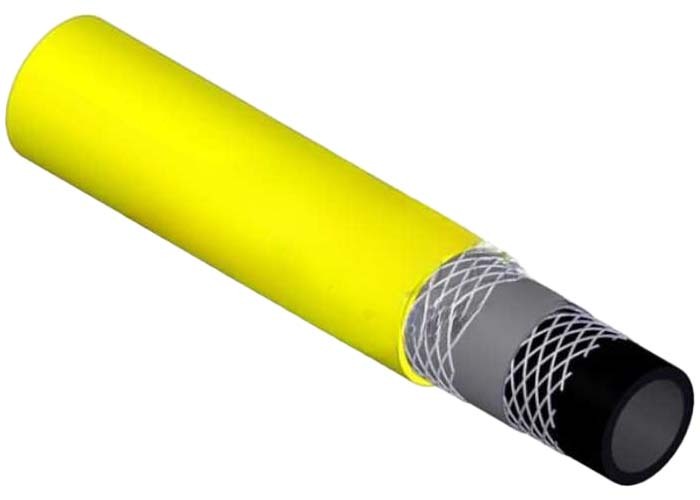

This Dixon rubber hose has a smooth yellow, non-marking cover that makes it easy to see on site, and Dixon lists it as an air and water hose for construction, industrial and agricultural work (manufacturer-stated). It has a black SBR blend tube, a yellow SBR blend cover and 2 and 4 spiral polyester yarn reinforcement, and it is extruded. The store lists the 19 mm size as a 20 m coil and a 100 m coil.
Dixon rates the A102 range at 200 PSI (14 bar) working pressure and gives a temperature range of -25 to 75 degrees C (manufacturer-stated). The catalogue says it suits heavy-duty air compressor use with portable compressors, jackhammers, breakers and stampers (manufacturer-stated).
Where this product is used
- Compressed air supply from portable compressors to jackhammers, breakers and stampers on construction and civil sites (manufacturer-stated).
- General air and water lines in industrial and agricultural work (manufacturer-stated).
- Site air lines where a bright yellow hose is easier to see and keep clear of traffic.
Features
- Tube: SBR blend, black; cover: SBR blend, smooth, yellow and non-marking (manufacturer-stated)
- Reinforcement: 2 and 4 spiral polyester yarn; extruded (manufacturer-stated)
- Working pressure 200 PSI (14 bar) (manufacturer-stated)
- Temperature range -25 to 75 degrees C (manufacturer-stated)
- Ozone, weather, oil mist and abrasion resistant (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | SBR blend, black |
| Cover | SBR blend, smooth, yellow |
| Reinforcement | 2 and 4 spiral polyester yarn |
| Hose ID (catalogue) | 19.1 mm |
| Hose OD (catalogue) | 31 mm |
| Working pressure | 200 PSI (14 bar) |
| Temperature | -25 to 75 degrees C |
| Bend radius | 155 mm |
| Catalogue weight | 0.83 kg/m |
| Lengths | 20 m and 100 m coils (store options) |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A10202020 | 19 mm | 20 m | 19.1 | 31 | 155 | 0.83 |
| A102020100 | 19 mm | 100 m | 19.1 | 31 | 155 | 0.83 |
ID, OD, bend radius and weight are the A102 figures printed in Dixon's Industrial Hose catalogue for the 19.1 mm size. The catalogue lists A10202020 as the 20 m coil and A102020100 as the 100 m coil. Dixon also lists A102 in 12.7 mm and 25.4 mm.
Selecting the right option
Match the hose to your compressor and tool: a 19 mm hose suits most breakers and rock drills, and the 100 m coil is for long site runs, so check pressure drop over the length you plan to run. The catalogue lists no burst or vacuum rating for this hose, so do not use it for suction. Dixon also lists made-up A102 assemblies with Minsup A-Type couplings (see Related products).
