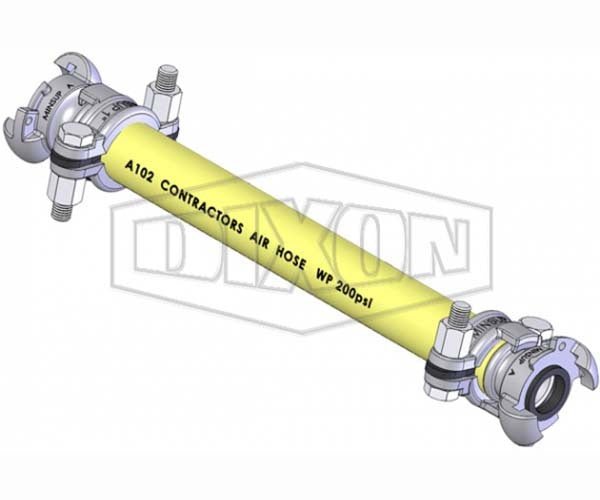

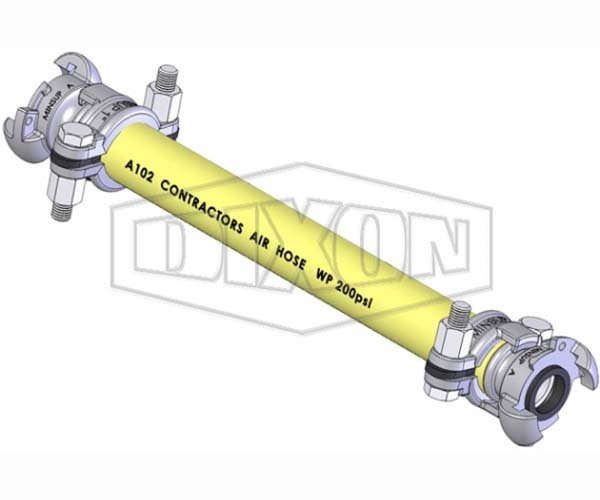

Dixon 20mm x 20m Contractors Yellow Air Hose Assembly A10202020F
Regular price
$259.60
Sale price
$259.60
Regular price
Inc. GST
Available
Length: 20 m. Rated to 200 PSI (14 bar), so you can match it to line pressure with confidence. Includes. 2 Hose Clamps with Safety Claw. Note. We recommend that the user of this product be fully aware of the hazards as listed in section 4 of AS2187.2 before using this product in explosive applications.
Key Specifications
| Size | 3/4" coupling / 1" coupling |
| Length | 20 m |
| ID | 19.1 mm / 25.4 mm |
| OD | 31.0 mm / 37.0 mm |
| Hose ID (mm) | 20 / 25 |
| Working Pressure | 200 PSI (14 bar) |
| Burst Pressure | 696 PSI (48 bar) |
| Temperature Range | -25°C to 75°C |
| Coupling Type | A Type Hose End |
| Color | Yellow |
| Intended Service | Air & Water |
| Unit weight | 0.83 kg/m / 0.92 kg/m |
| Bend Radius | 155 mm / 205 mm |
| Application | Air & Water |
| Coil Length | 20 m |
| Standards referenced | AS2187.2 |
Where This Is Used
- Crafted with a smooth yellow non-marking cover to enhance visibility, this cost-effective pneumatic air and water hose is tailored for diverse applications in construction, industrial, and agricultural fields.
- It’s particularly well-suited for heavy-duty air compressor usage, seamlessly supporting a wide range of pneumatic equipment such as portable compressors, jackhammers, breakers, and stampers.
- Economical general purpose air hose.
- Construction and industrial sites, general maintenance.
Features
- Oil mist resistant.
- Ozone resistant.
- Weather resistant.
- Abrasion resistant.
- Extruded.
- Also available with Surelock couplings.
- Abrasive, heat and ozone resistant.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
20
Model Number: A10202020F
-
25
Model Number: A10202520F
