Dixon Clear silicone clamp gasket, 1-1/2"
Available
This Dixon clear silicone gasket seals clamp-style sanitary joints. The material is meeting 21CFR177.2600 and as having passed USP Class VI cytotoxicity testing. The gasket materials are approved by 3A and USDA and comply with FDA 21CFR177 requirements.
Where this product is used
- Gasket between two ferrules in a clamp-style sanitary joint
- Replacement gasket for Dixon clamp-style sanitary fittings in 1" to 4"
Features
- Material: Silicone, clear
- Colour code: No dot
- Compliance: 21CFR177.2600 and USP Class VI cytotoxicity testing

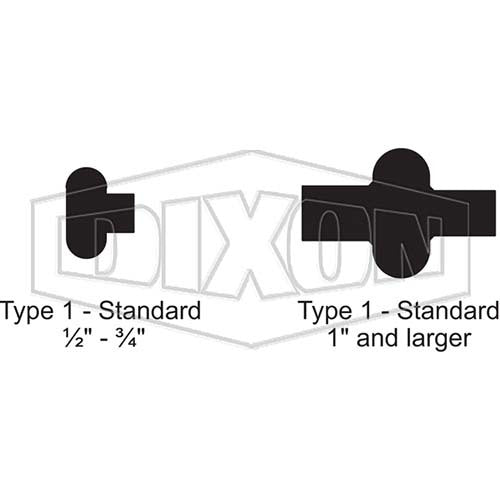

- Gasket style: Type 1 standard gasket for clamp-style sanitary fittings
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Silicone, clear |
| Colour code | No dot |
| Compliance | 21CFR177.2600 and USP Class VI cytotoxicity testing |
| Gasket style | Type 1 standard gasket for clamp-style sanitary fittings |
| Part number series | 40MP-XC |
| Sizes | 1", 1-1/2", 2-1/2", 3", 4" |
Choosing the right option
Match the gasket to the ferrule size of the clamp joint, and to the material that suits your product and cleaning chemicals.
Related Dixon products: Dixon Clear Silicone Standard Clamp Gasket No Dot, Dixon EPDM Black Standard Clamp Gasket Three Green Dots and Dixon 304 Stainless Steel Sanitary Single Pin Squeeze Clamp.
| Option | Part number | SKU |
|---|---|---|
| 1" | 40MP-XC100 | A0068159 |
| 1-1/2" | 40MP-XC150 | A0068160 |
| 2-1/2" | 40MP-XC250 | A0068162 |
| 3" | 40MP-XC300 | A0068163 |
| 4" | 40MP-XC400 | A0068164 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Silicone Clear STD Gasket for Clamp Style No Dot: 1-1/2"
SKU: A0068160 | Model: 40MP-XC150
Dixon 40MP-XC150: Clear silicone clamp gasket, 1-1/2".
