Dixon Clear silicone clamp gasket

This Dixon clear silicone gasket seals a 3/4" clamp-style sanitary joint. The colour code is no dot, and the material is meeting 21CFR177.2600 and as having passed USP Class VI cytotoxicity testing. The gasket materials are approved by 3A and USDA and comply with FDA 21CFR177 requirements.

The part number is 42MP-XC75, from the 42MP series used for the 1/2" and 3/4" gaskets.

Where this product is used

• Gasket between two ferrules in a 3/4" clamp-style sanitary joint
• Replacement gasket for Dixon fractional-size clamp-style sanitary fittings

Features

• Material: Silicone, clear
• Colour code: No dot
• Compliance: 21CFR177.2600 and USP Class VI cytotoxicity testing

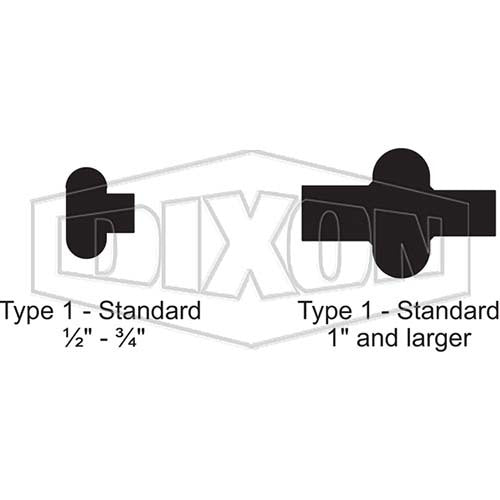

• Gasket style: Type 1 standard gasket for clamp-style sanitary fittings

Key specifications

Choosing the right option

Match the gasket to the ferrule size of the clamp joint, and to the material that suits your product and cleaning chemicals.

Related Dixon products: Dixon Silicone Clear STD Gasket for Clamp Style No Dot, Dixon White PTFE Standard Clamp Gasket No Dot, 1/2 and 3/4" and Dixon Black EPDM Standard Clamp Gasket Three Green Dots.
