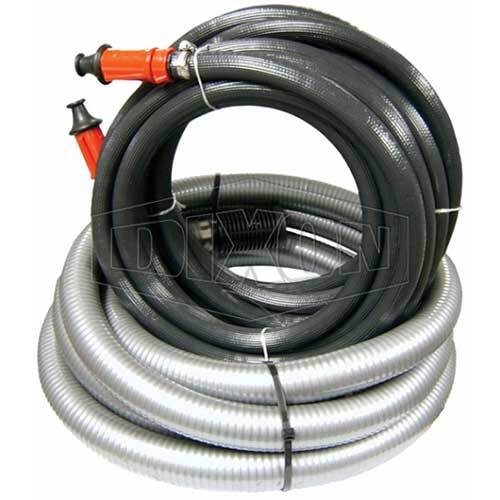

Dixon Spotfire fire hose kit

This Dixon Spotfire kit is built around two 6 m lengths of PVC fire hose, each fitted with brass nut and tails, and two 20mm adjustable fire nozzles. It also includes a grey PVC suction hose with a poly strainer. The kit working pressure is 145 PSI (1.0 MPa).

The contents are: 1 x 4 m of grey PVC suction hose, fitted with a poly strainer and a brass nut and tail; 2 x 6 m of PVC fire hose, fitted with brass nut and tails; and 2 x 20mm adjustable fire nozzles. That gives 12 m of discharge hose in total.

Where this product is used

• Fitting out a pump set: the kit supplies the suction hose with strainer, the discharge hose with fittings and the nozzles, and you provide the pump

Features

• Working pressure 145 PSI (1.0 MPa)
• Suction hose: 1 x 4 m of grey PVC suction hose, fitted with a poly strainer and a brass nut and tail
• Discharge hose: 2 x 6 m of PVC fire hose, fitted with brass nut and tails
• Nozzles: 2 x 20mm adjustable fire nozzles

Key specifications

Choosing the right option

Compare the working pressure with your pump's maximum output pressure before you connect the kit.

Related Dixon fire hose kits: Dixon Inferno Fire Hose Kit, 100 PSI (0.7 MPa) - FK6P, Dixon Blaze Fire Hose Kit, 145 PSI (1.0 MPa) - FK420 and Dixon Backburn Fire Hose Kit, 145 PSI (1.0 MPa) - FK6.
