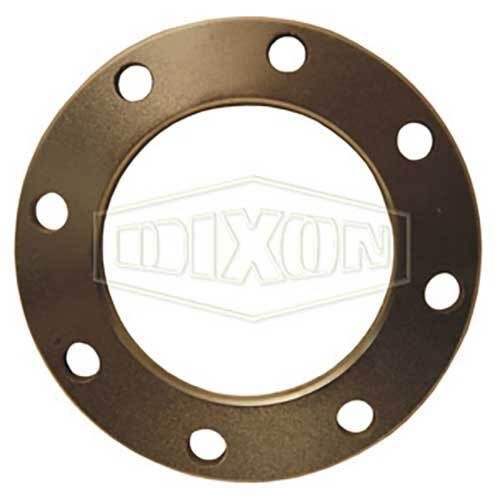

Dixon 3" TTMA buttweld flange
Out of stock
This Dixon flange is an 80mm (3") TTMA flange in aluminium, 10mm (3/8") thick, for welding to TTMA aluminium pipe on petroleum tankers. Its part number is TTF3AL, "3" TTMA buttweld on flange". The series are solid cast lightweight aluminium with a machined sealing surface and a standard TTMA bolt pattern, and lists a bolt circle diameter of 4.875 in for this 80mm (3") flange.
The butt weld version has a bevelled inside diameter on the weld side to help with butt welding, and a machined flange face for the gasket seal.
Where this product is used
- Welding a TTMA flange onto 80mm (3") aluminium pipe on a petroleum tanker
- Connecting a device with an 80mm (3") TTMA flange to tanker pipework
Features
- 80mm (3") TTMA flange, aluminium, 10mm (3/8") thick
- Bevelled inside diameter on the weld side to aid butt welding
- Machined flange face for an even gasket seal
- Standard TTMA bolt pattern, bolt circle 4.875"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Description | TTMA flange, 80mm (3"), butt weld on |
| TTMA flange size | 80mm (3") |
| Thickness | 10mm (3/8") |
| Material | Aluminium |
| Bolt circle diameter | 4.875" |
Choosing the right option
Related Dixon tanker products: Dixon TTMA Buttweld Flange 4" - Aluminum, Dixon Sightglass Flange 4" TTMA x 25mm and Dixon Camlift Weld In Tank Flange To Suit DBCO402.
