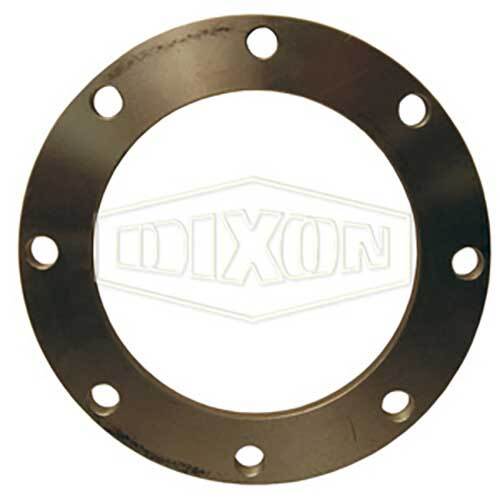

Dixon 4" TTMA buttweld flange

This Dixon flange is a 100mm (4") TTMA flange in aluminium, 10mm thick, for welding to 100mm TTMA aluminium pipe on petroleum tankers. Its part number is TTF4-100AL. The series are solid cast lightweight aluminium, with a machined sealing surface and a standard 100mm (4") TTMA bolt pattern, and it converts threaded components to a standard TTMA flange configuration.

Dixon also offers a bolt circle diameter of 5.875 in for the 100mm (4") flange in the series.

Where this product is used

• Welding a TTMA flange onto 100mm (4") aluminium pipe on a petroleum tanker
• Connecting a device with a 100mm (4") TTMA flange, such as an API adaptor or sight glass flange, to tanker pipework

Features

• 100mm (4") TTMA flange, aluminium, 10mm thick
• Solid cast lightweight aluminium, machined sealing surface
• Standard 100mm (4") TTMA bolt pattern, bolt circle 5.875"
• Description: TTMA flange, 100mm (4"), butt weld on

Key specifications

Choosing the right option

Check your pipe and mating device are both 100mm (4") TTMA. The 80mm (3") flange is a different part, sold separately. Check whether you also need a TTMA flange gasket, and have the welding done by someone qualified for aluminium tanker work.

Related Dixon tanker products: Dixon TTMA Buttweld Flange 3 x 3/8" - Aluminum, Dixon Sightglass Flange 4" TTMA x 25mm and Dixon Vapor Return Valve TTMA Flange Bulb Design 4" Adapter x 4" Flange.
