Dixon 316 stainless butt weld and wine female crimp stems

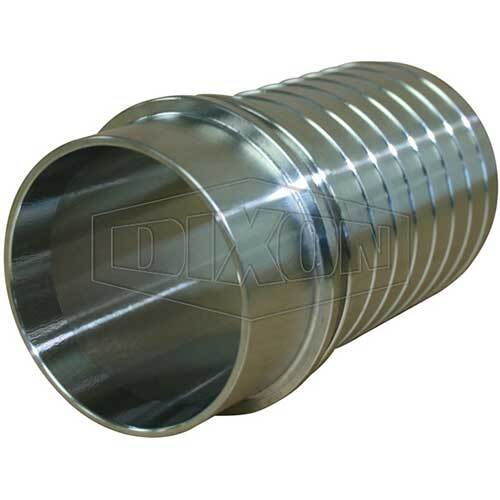

There are two Dixon 316 stainless steel crimp stem styles that are sold together as one product: butt weld tube crimp stems HA0833 to HA0843" sizes from 1" to 4", and wine female crimp stems HA0850, HA0851 and HA0852 for 2", 3" and 4" hose. The butt weld stem has a plain tube end that is welded to pipe or a vessel connection, and a crimp hose end. The wine female stem has Dixon's wine female connection.

Where this product is used

• Hygienic hose assemblies where the stem is butt welded to tube or pipework
• Hose assemblies that use Dixon's wine female end (HA0850 to HA0852)

Features

• 316 stainless steel crimp stems
• Butt weld tube crimp stems: six sizes from 1" (HA0833) to 4" (HA0843)
• Wine female crimp stems: 2" (HA0850), 3" (HA0851) and 4" (HA0852)
• Material: 316 stainless steel

Key specifications

Choosing the right option

Choose the style first: butt weld tube stems are welded in, while wine female stems connect to a wine female fitting. Then choose the size from the hose inside diameter in inches.

Related Dixon products: Dixon External Crimp Female Stem Holedall BSM (RJT) and Dixon Clamp Type / Tri-Clover External Crimp Stem.
