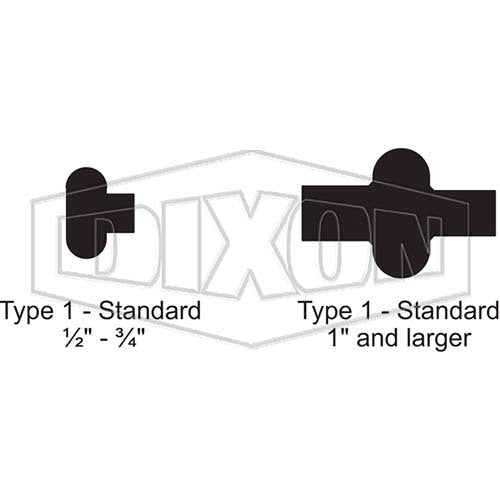

Dixon White PTFE clamp gasket, 2"

This Dixon white PTFE gasket seals clamp-style sanitary joints in the 1" to 4" sizes. The colour code is no dot, and it meets 21CFR177.1550 and as having passed USP Class VI cytotoxicity testing. The gasket materials are approved by 3A and USDA and comply with FDA 21CFR177 requirements.

Where this product is used

• Gasket between two ferrules in a clamp-style sanitary joint where a PTFE gasket is needed
• Replacement gasket for Dixon clamp-style sanitary fittings in 1" to 4"

Features

• Material: PTFE, white
• Colour code: No dot
• Compliance: 21CFR177.1550 and USP Class VI cytotoxicity testing
• Not recommended for use with bolted clamps

Key specifications

Choosing the right option

Match the gasket to the ferrule size of the clamp joint, and to the material that suits your product and cleaning chemicals. Ptfe gaskets are not recommended with bolted clamps, and its clamp pressure ratings do not apply to 1" and larger joints with PTFE. PTFE is subject to plastic flow: after heat cycling the gasket does not return to its original shape and keeps compressing, which allows leakage if clamp torque is not maintained.

Related Dixon products: Dixon White PTFE Standard Clamp Gasket No Dot, 1/2 and 3/4", Dixon Black Buna-N Standard Clamp Gasket Red Dot, 1 to 4" and Dixon 304 Stainless Steel Sanitary Single Pin Squeeze Clamp.
