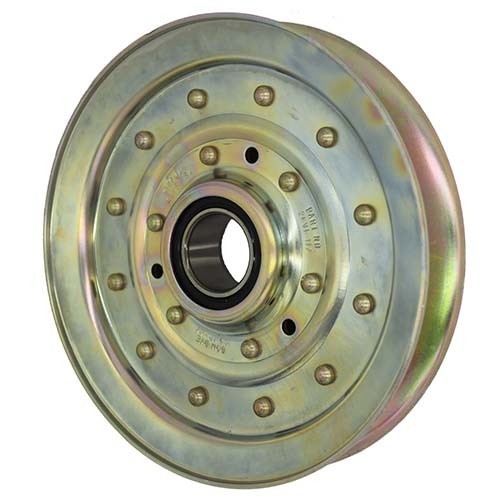

Double Row V-Belt Idler Pulley C Section

Double Row V-Belt Idler Pulley C Section

• C Section.
• Double row v-belt idler pulley.

All About Double Row Bearing Idler Pulley

• Heavy-duty double row ball bearing flat, flanged, and V groove idlers was developed to handle heavier loads that exceed the capacity of single-row ball bearing idlers.
• The double-row idlers are more stable when side loads or off-center loads occur.
• They are available with 3/8", 1/2", 5/8", and 3/4" bolt mounting.
• These riveted idlers are constructed from 13 gauge material.
• The high-quality precision bearings made of 52100 bearing steel are pre-lubricated, have contact-type seals for retention of high-temperature lubricant to ensure protection against dust, dirt, or other foreign matter. No re-lubrication is required.
• A compression ring is compressed between the center of O.D. of bearing and center I.D. of pulley bearing pocket to assure a firm reliable fit of pulley more evenly to the outer bearing race resulting in minimum distortion of bearing O.D, (USA patent 4518372 foreign patents pending).
• Our tests have proven this method of bearing installation to give longer and more reliable bearing life.
