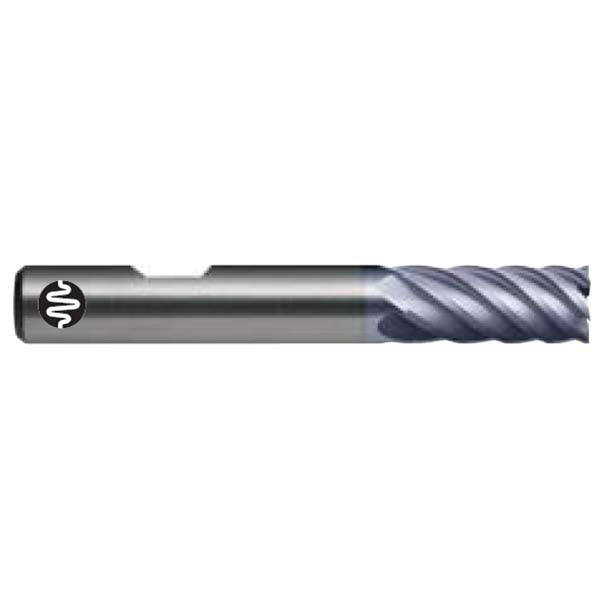

Sutton E433 16mm Endmill 6 Flute - Carbide VHM Ultra - AlCrN - Regular
Available
The Sutton E433 is an endmill with 6 to 8 flutes, depending on size, made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 9 metric sizes from 6 mm to 25 mm.
The cutting edge has a 50/35° variable helix and the designation is NH. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h5 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L.
Where this product is used
- Super fine finishing.
- Hard, short chipping materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 6 to 8 flutes, 50/35° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E433 0600 | 6 | 57 | 13 | 6 | 6 |
| E433 0800 | 8 | 63 | 19 | 8 | 6 |
| E433 1000 | 10 | 72 | 22 | 10 | 6 |
| E433 1200 | 12 | 83 | 26 | 12 | 6 |
| E433 1400 | 14 | 83 | 26 | 14 | 6 |
| E433 1600 | 16 | 92 | 32 | 16 | 6 |
| E433 1800 | 18 | 92 | 32 | 18 | 8 |
| E433 2000 | 20 | 104 | 38 | 20 | 8 |
| E433 2500 | 25 | 120 | 45 | 25 | 8 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E433 |
| Type | Endmill, 6-8 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50/35 |
| Designation | NH |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 9 sizes, 6 to 25 mm |
Related products
Related Sutton carbide endmills: E432 metric endmill (regular), AlCrN, plain shank, E434 metric endmill (extra long), AlCrN, plain shank, E435 metric endmill (extra long), AlCrN, Weldon flat shank, E427 metric endmill (regular), AlCrN, Weldon flat shank, E426 metric endmill (regular), AlCrN, plain shank.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton E433 Metric 6-8 Flute Endmill - Carbide VHM Ultra - AlCrN - Regular - HB: 16
SKU: A0130149 | Model: E4331600
This is the cutting tip 16 option of the Sutton E433 Metric 6-8 Flute Endmill - Carbide VHM Ultra - AlCrN - Regular - HB. Key details for this option: cutting diameter 16mm, shank diameter 16mm, overall length 92mm, flute length 32mm.
