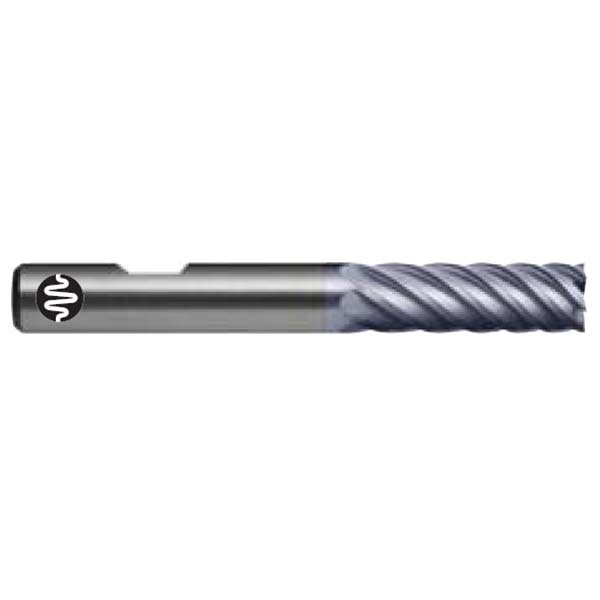

Sutton E435 6mm Endmill 6 Flute - Carbide VHM Ultra - AlCrN - Extra Long
Available
The Sutton E435 is an endmill with 6 to 8 flutes, depending on size, made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the extra long length series. This listing covers 7 metric sizes from 6 mm to 25 mm.

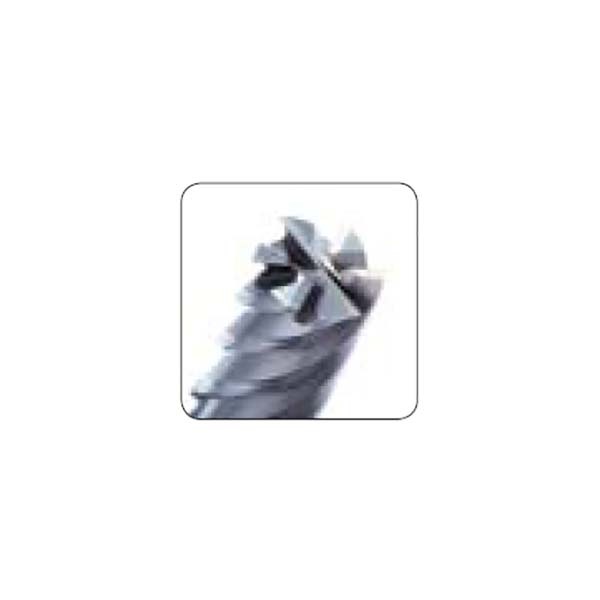

The cutting edge has a 50/35° variable helix and the designation is NH. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h5 shank tolerance and e8 cutting diameter tolerance.
Where this product is used
- Super fine finishing.
- Hard, short chipping materials up to 48 HRC.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 6 to 8 flutes, 50/35° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h5.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

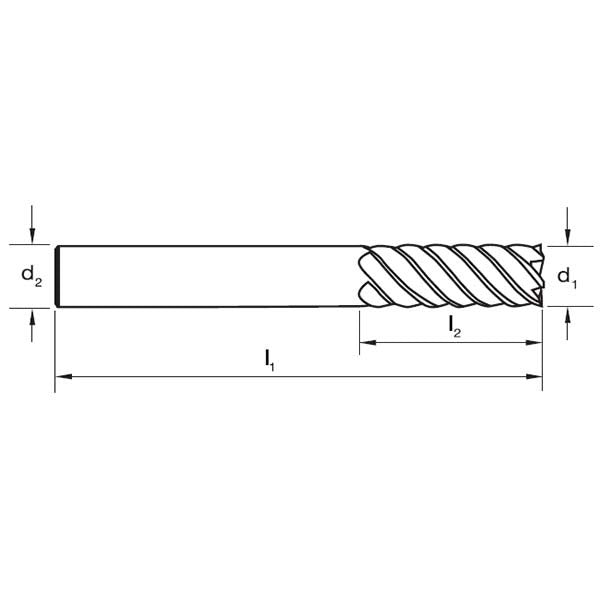

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | d2 shank (mm) | Flutes |
|---|---|---|---|---|---|
| E435 0600 | 6 | 62 | 18 | 6 | 6 |
| E435 0800 | 8 | 68 | 24 | 8 | 6 |
| E435 1000 | 10 | 80 | 30 | 10 | 6 |
| E435 1200 | 12 | 93 | 36 | 12 | 6 |
| E435 1600 | 16 | 108 | 48 | 16 | 6 |
| E435 2000 | 20 | 126 | 60 | 20 | 8 |
| E435 2500 | 25 | 150 | 85 | 25 | 8 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E435 |
| Type | Endmill, 6-8 flute, extra long length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R50/35 |
| Designation | NH |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h5 |
| Sizes in this listing | 7 sizes, 6 to 25 mm |
