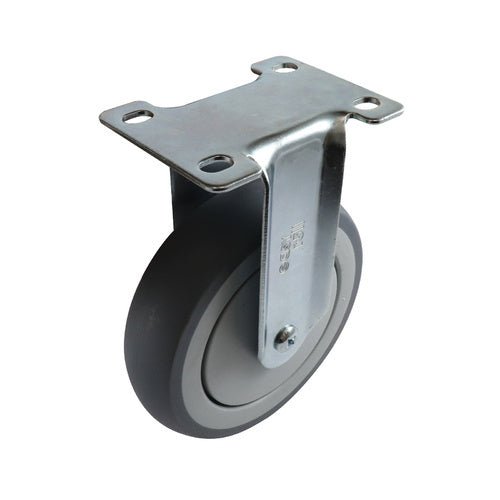

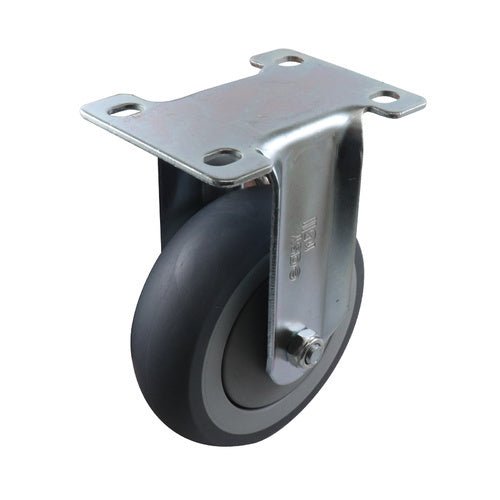

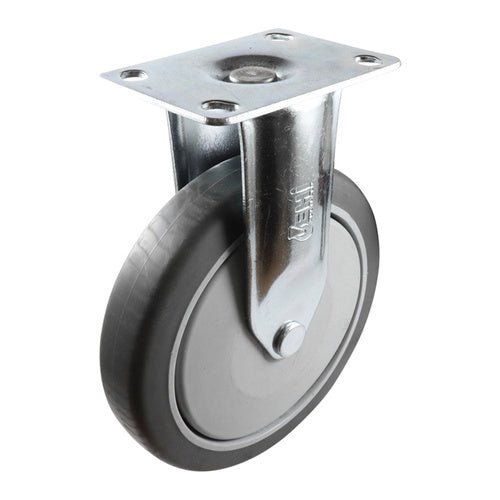

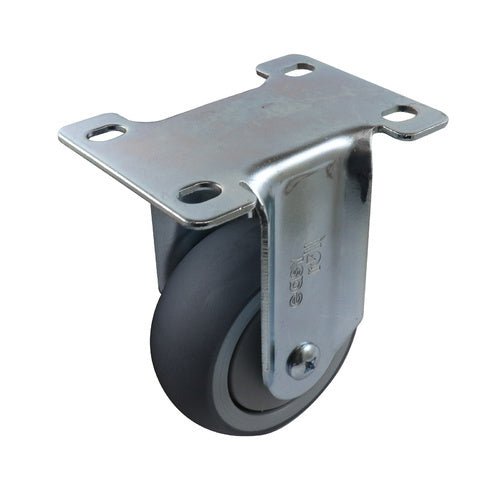

EasyRoll g6 series fixed plate castor, 138mm

The EasyRoll G6 series fixed plate castor is fitted with a grey rubber wheel and is available in 75, 100, 125 and 150mm wheel diameters. Load capacity is 90kg to 130kg per castor depending on the wheel size. The top plate is 95 x 70mm with hole centres of 70-76 x 45mm.

The G6 series is suited to medical trolleys and equipment, hospital beds and medicine trolleys. It has double headset bearings, sealed precision wheel bearings and a bright zinc finish.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Display and shopfitting equipment
• Commercial and domestic furniture

Features

• Grey rubber wheel in 75, 100, 125 and 150mm
• Load capacity 90kg to 130kg per castor
• Sleek design with a bright zinc finish
• Double headset bearings for strength and a smooth swivelling action
• Headset seals protect the bearings from dust and foreign matter
• Non-marking rubber and urethane wheels with sealed precision bearings to reduce rolling resistance and noise

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Grey rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
