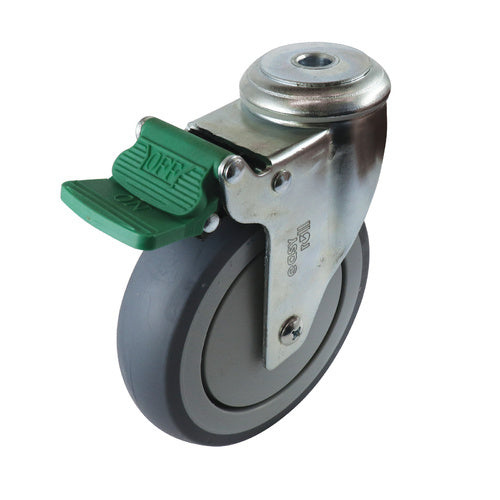

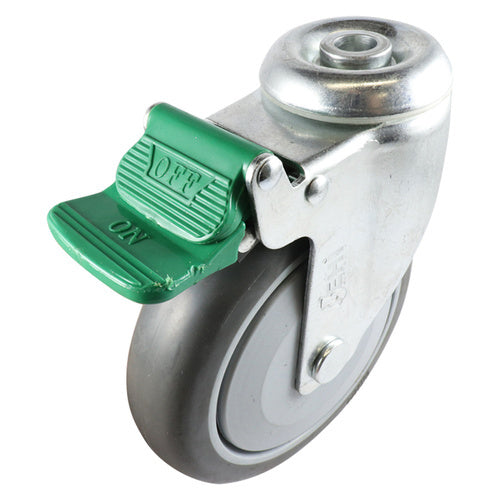

EasyRoll g6 series swivel bolt hole castor with directional

The EasyRoll G6 series swivel bolt hole castor with directional lock is fitted with a grey rubber wheel and is available in 125 and 150mm wheel diameters. Load capacity is 130kg per castor. It fits with a single 1/2" (M12) bolt through the top hole.

The G6 series is suited to medical trolleys and equipment, hospital beds and medicine trolleys. It has double headset bearings, sealed precision wheel bearings and a bright zinc finish.

Where this product is used

• Medical trolleys and equipment
• Hospital beds
• Medicine trolleys
• Food delivery trolleys
• Display and shopfitting equipment
• Commercial and domestic furniture

Features

• Grey rubber wheel in 125 and 150mm
• Load capacity 130kg per castor
• Directional lock holds the castor in line for straight tracking
• Sleek design with a bright zinc finish
• Double headset bearings for strength and a smooth swivelling action
• Headset seals protect the bearings from dust and foreign matter
• Glass-filled nylon brake assembly with colour-coded pedals (total lock red, directional lock green)
• Non-marking rubber and urethane wheels with sealed precision bearings to reduce rolling resistance and noise

Key specifications

Choosing the right option

Check the bolt size and the mounting hole or tube in your equipment before you order. A directional lock does not stop the wheel from rotating. It lets the castor swivel until the wheel faces in line with the unit, then locks the swivel so the castor tracks in a straight line. Grey rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It suits quality flooring and quiet or clean areas. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
