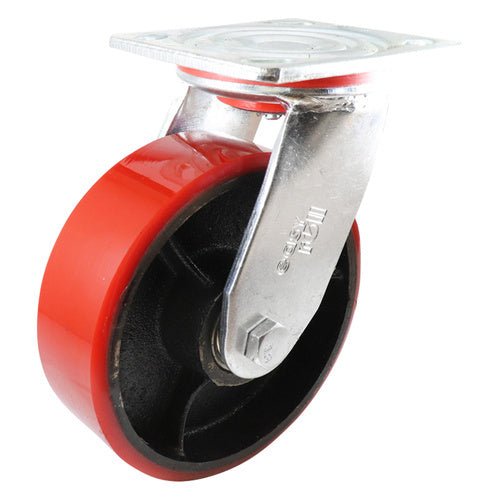

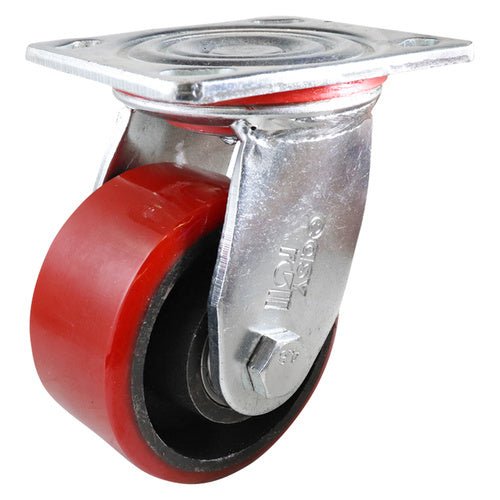

EasyRoll J2 Swivel Plate Castor, Red Urethane on Cast Iron 100 mm | J22AZ85K100

The EasyRoll J2 series swivel plate castor is fitted with a red urethane on cast iron wheel and is available in 100 and 150 mm wheel diameters. Load capacity is 320 kg to 410 kg per castor depending on the wheel size. The top plate is 110 x 100 mm with hole centres of 76-92 x 76-67 mm.

The J2 series is suited to general and stock picking trolleys; dollies and stillages; and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Red urethane on cast iron wheel in 100 and 150 mm
• Load capacity 320 kg to 410 kg per castor
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
