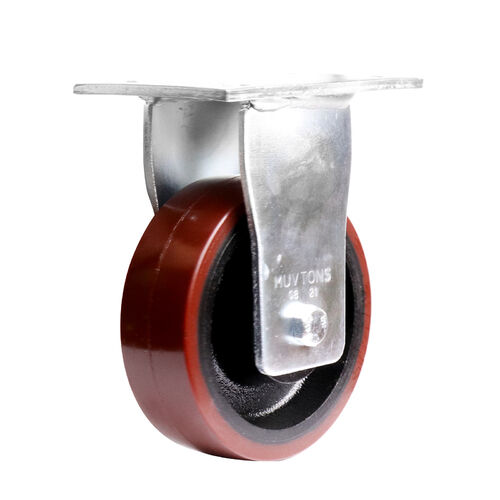

EasyRoll x2 series fixed plate castor X23AZ95K150
Available
The EasyRoll X2 series fixed plate castor is fitted with a polyurethane wheel and is available in 150, 200 and 250mm wheel diameters. Load capacity is 750kg to 1,200kg per castor depending on the wheel size. The top plate is 150 x 110mm with hole centres of 105-121 x 59-80mm.
The X2 series is suited to heavy machinery, dollies and stillages and gantries and mobile work benches. It has sealed precision ball bearings.
Where this product is used
- Heavy machinery
- Dollies and stillages
- Gantries and mobile work benches
- Shipyards
- Mining
Features
- Polyurethane wheel in 150, 200 and 250mm
- Load capacity 750kg to 1,200kg per castor
- Polyurethane tread of 93 Shore A (plus or minus 3), cast iron core
- Sealed precision ball bearings
- Working temperature range of -20 °C to +85 °C
- Non-marking, noiseless running with low rolling resistance and abrasion resistance
- Suited to epoxy coated and smooth cement concrete floors
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | X2 |
| Mounting | Fixed plate |
| Brake | No brake |
| Wheel | POLYURETHANE wheel |
| Wheel diameter | 150, 200 and 250mm |
| Tread width | 50mm |
| Load capacity per castor | 750kg to 1,200kg |
| Overall height | 200mm to 300mm |
| Plate size | 150 x 110mm |
| Hole centres | 105-121 x 59-80mm |
| Bearings | Sealed precision ball bearings |
Choosing the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll X2 Series Swivel Plate Castor with Brake - POLYURETHANE Wheel, EasyRoll X2 Series Swivel Plate Castor - POLYURETHANE Wheel, EasyRoll J7 Series Fixed Plate Castor - Cast Iron (Plain Bearing) Wheel, Black.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| 150mm | X23AZ95K150 | 150 | 50 | 750 | 200 |

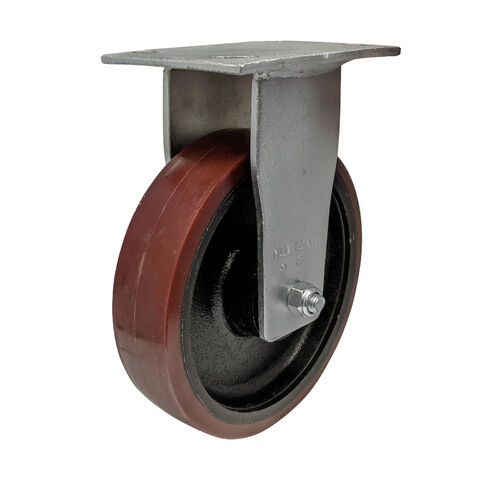

| 200mm | X23AZ95K200 | 200 | 50 | 1000 | 250 |

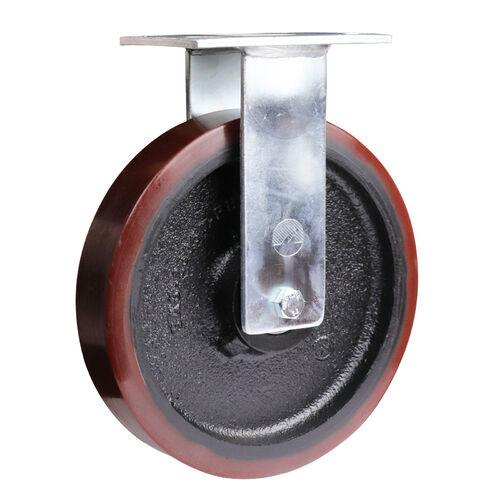

| 250mm | X23AZ95K250 | 250 | 50 | 1200 | 300 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll X2 Series Fixed Plate Castor - POLYURETHANE Wheel: 150
SKU: A0210484 | Model: X23AZ95K150
EasyRoll X23AZ95K150: x2 series fixed plate castor, wheel diameter (mm) 150. Load Capacity (kg): 750. Tyre/Wheel Material: Urethane on Cast Iron.
