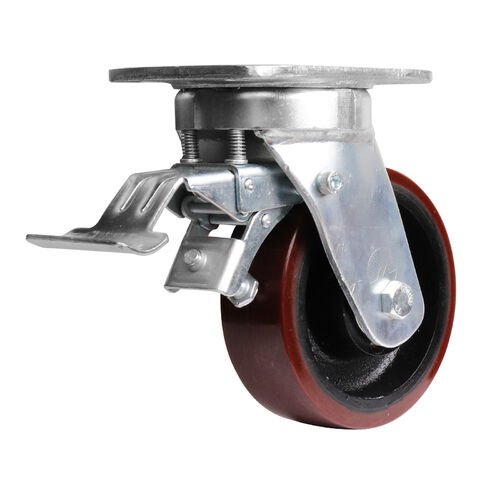

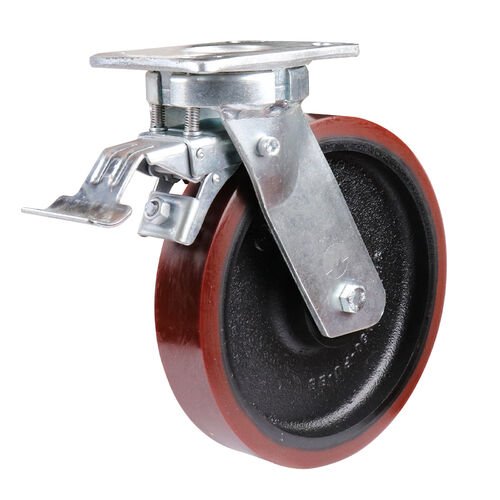

EasyRoll X2 Swivel Plate Castor with Brake, POLYURETHANE 150 mm | X22TZ95K150

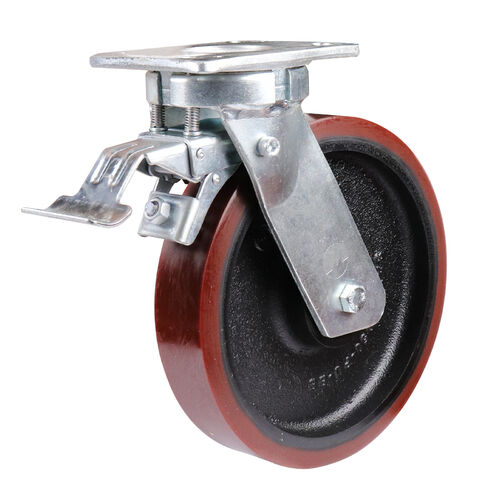

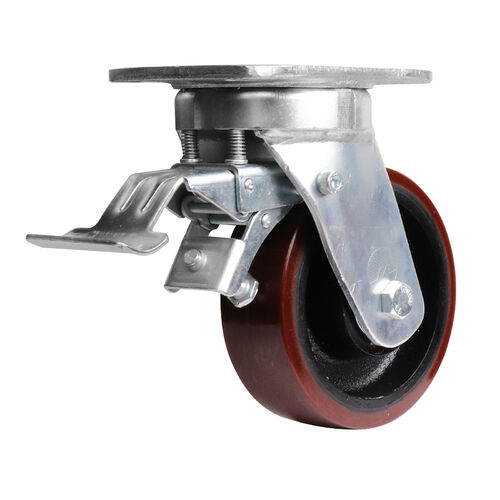

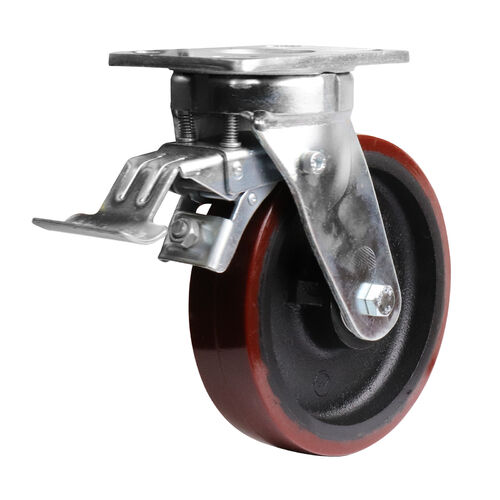

The EasyRoll X2 series swivel plate castor with brake is fitted with a polyurethane wheel and is available in 150, 200 and 250 mm wheel diameters. Load capacity is 750 kg to 1,200 kg per castor depending on the wheel size. The top plate is 150 x 110 mm with hole centres of 105-121 x 59-80 mm.

The X2 series is suited to heavy machinery; dollies and stillages; and gantries and mobile work benches. It has sealed precision ball bearings.

Where this product is used

• Heavy machinery
• Dollies and stillages
• Gantries and mobile work benches
• Shipyards
• Mining

Features

• Polyurethane wheel in 150, 200 and 250 mm
• Load capacity 750 kg to 1,200 kg per castor
• Total lock brake stops both swivel and wheel rotation
• Polyurethane tread of 93 Shore A (plus or minus 3), cast iron core
• Sealed precision ball bearings
• Working temperature range of -20 °C to +85 °C
• Non-marking, noiseless running with low rolling resistance and abrasion resistance
• Suited to epoxy coated and smooth cement concrete floors

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. EHI rates polyurethane wheels as follows: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. EHI describes it as the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
