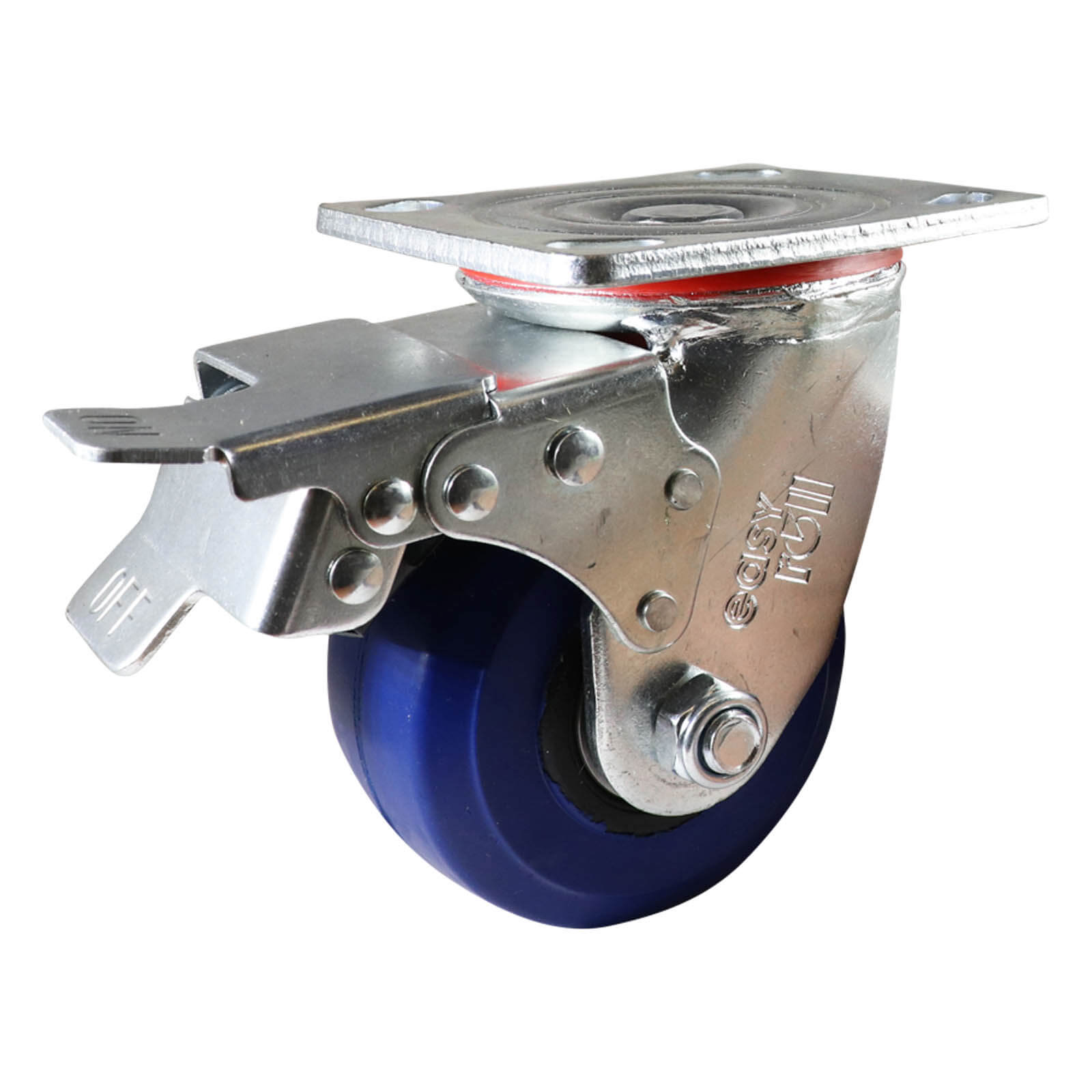

EasyRoll J2 Swivel Plate Castor with Brake, Blue Rubber 100 mm | J22TZ83K100A

The EasyRoll J2 series swivel plate castor with brake is fitted with a blue rubber wheel and is available in a 100 mm wheel diameter. Load capacity is 200 kg per castor. The top plate is 110 x 100 mm with hole centres of 76-92 x 76-67 mm.

The J2 series is suited to general and stock picking trolleys; dollies and stillages; and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Blue rubber wheel in 100 mm
• Load capacity 200 kg per castor
• Total lock brake stops both swivel and wheel rotation
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. EHI rates blue rubber wheels as follows: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. EHI lists it as the highest shock absorbency and suited to quality flooring and rougher surfaces. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
