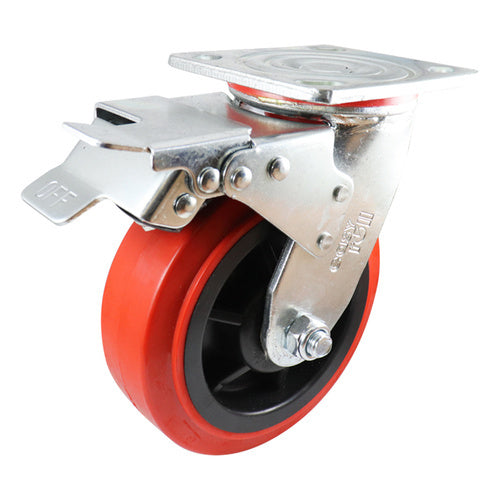

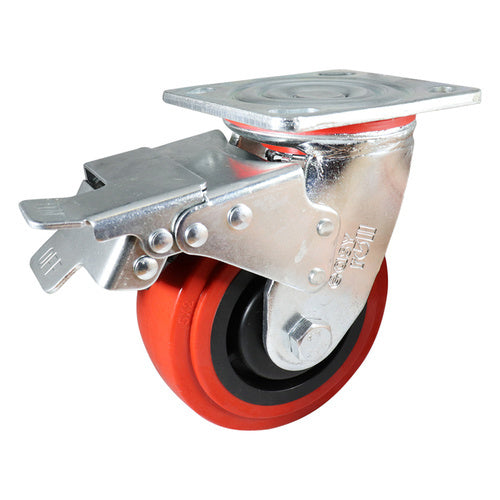

EasyRoll j2 series swivel plate castor with brake

The EasyRoll J2 series swivel plate castor with brake is fitted with a red urethane wheel and is available in 125, 150 and 200mm wheel diameters. Load capacity is 340kg to 455kg per castor depending on the wheel size. The top plate is 110 x 100mm with hole centres of 76-92 x 76-67mm.

The J2 series is suited to general and stock picking trolleys, dollies and stillages and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Red urethane wheel in 125, 150 and 200mm
• Load capacity 340kg to 455kg per castor
• Total lock brake stops both swivel and wheel rotation
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
