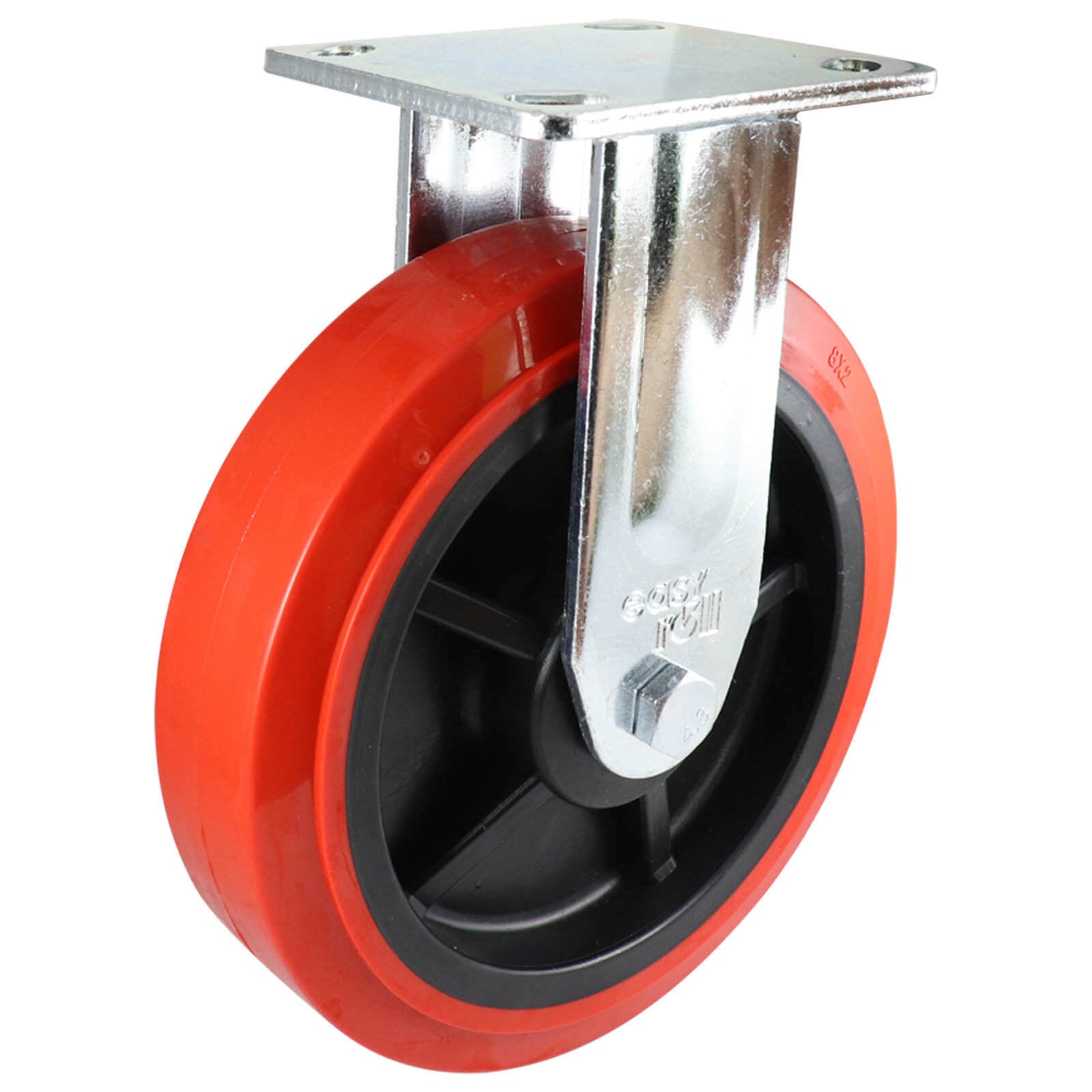

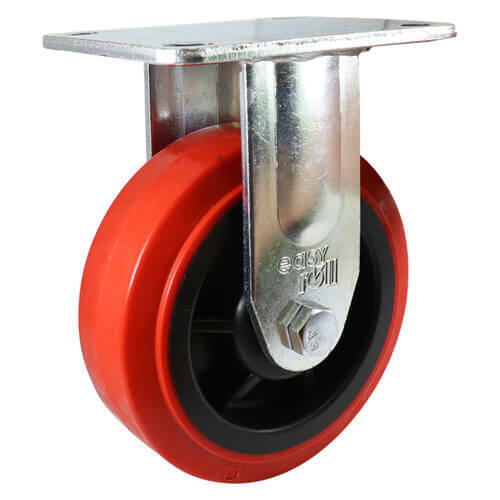

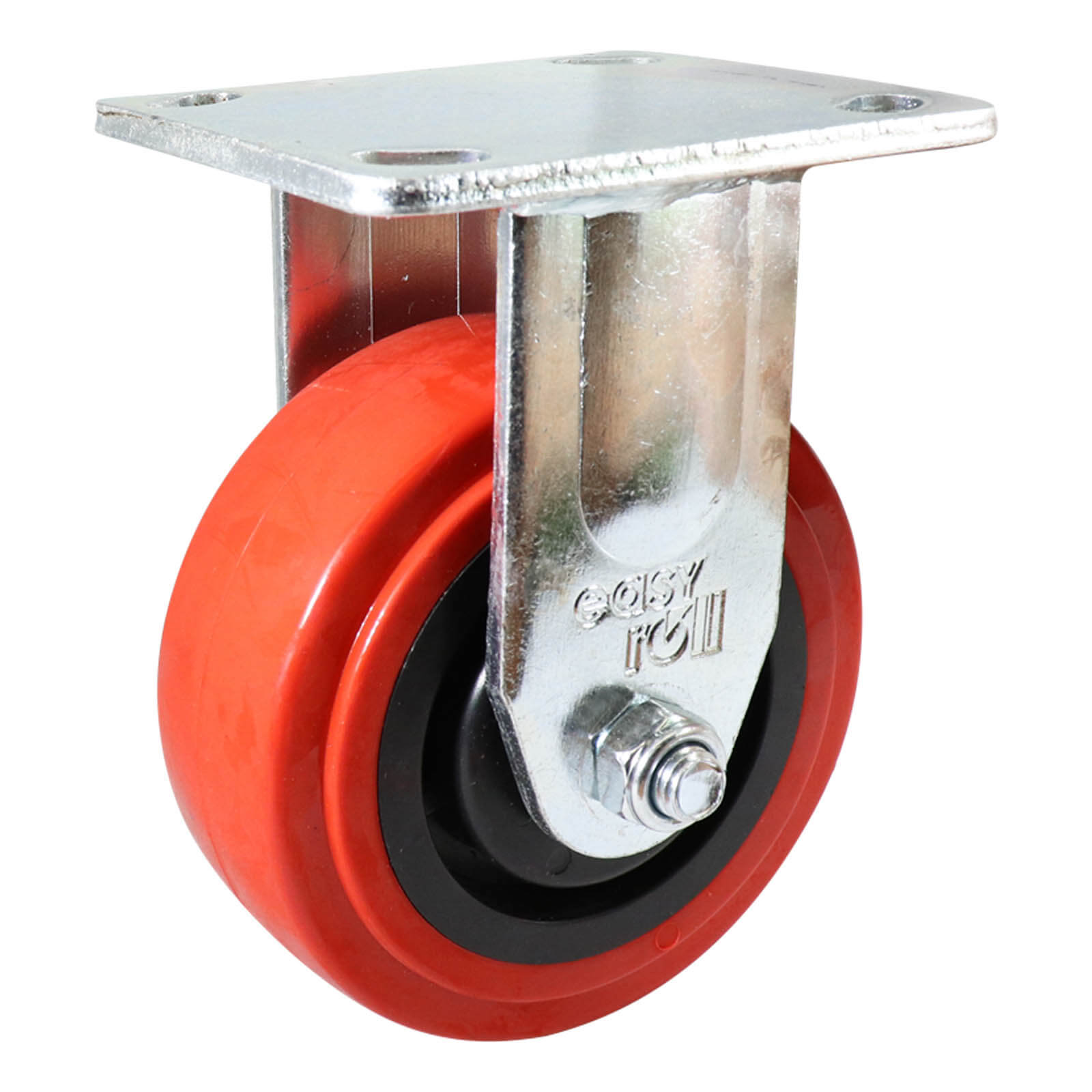

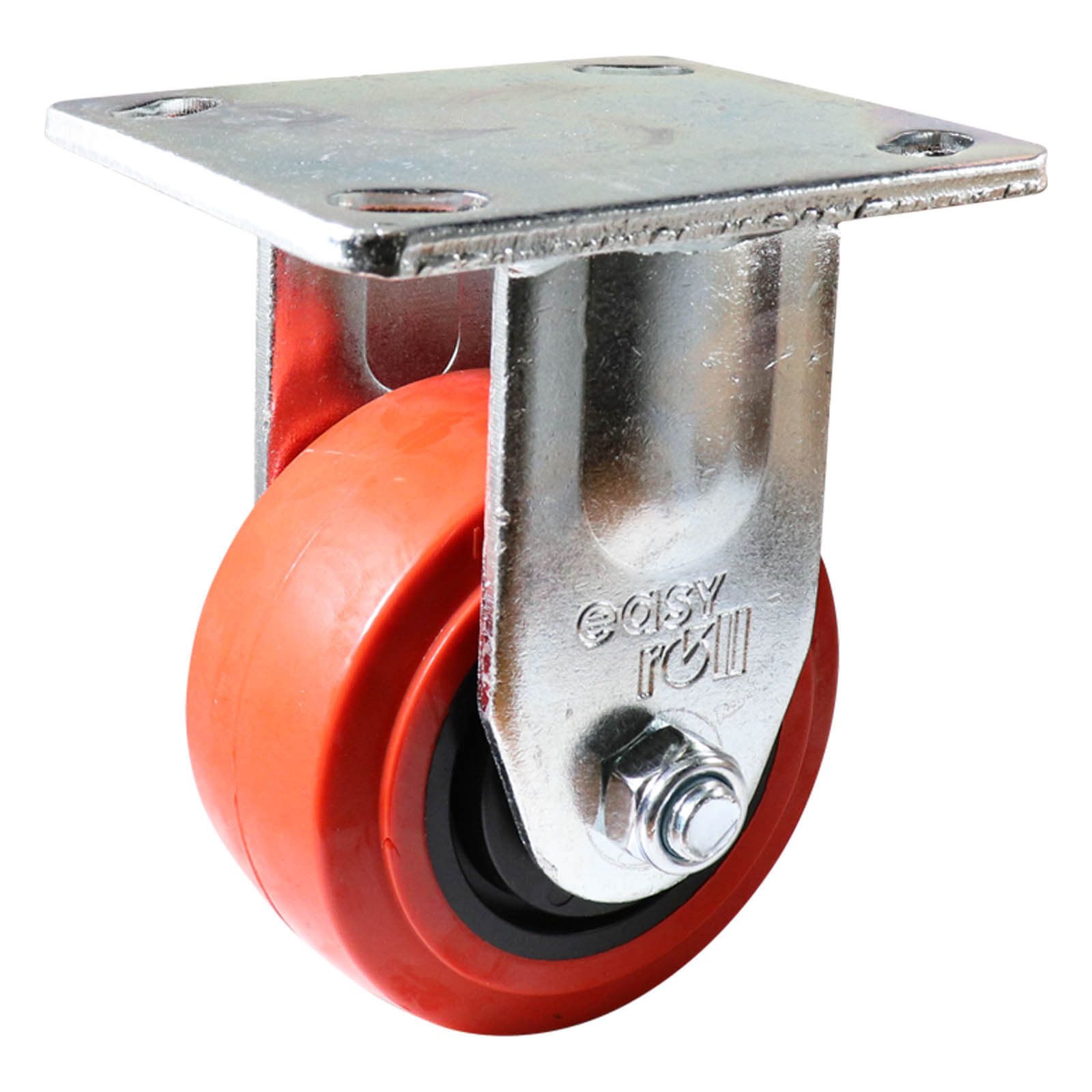

EasyRoll J2 Fixed Plate Castor, Red Urethane 100 mm | J23AZ84K100A

The EasyRoll J2 series fixed plate castor is fitted with a red urethane wheel and is available in 100, 125, 150 and 200 mm wheel diameters. Load capacity is 280 kg to 455 kg per castor depending on the wheel size. The top plate is 110 x 100 mm with hole centres of 76-92 x 76-67 mm.

The J2 series is suited to general and stock picking trolleys; dollies and stillages; and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Red urethane wheel in 100, 125, 150 and 200 mm
• Load capacity 280 kg to 455 kg per castor
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates polyurethane wheels as follows: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. EHI describes it as the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
