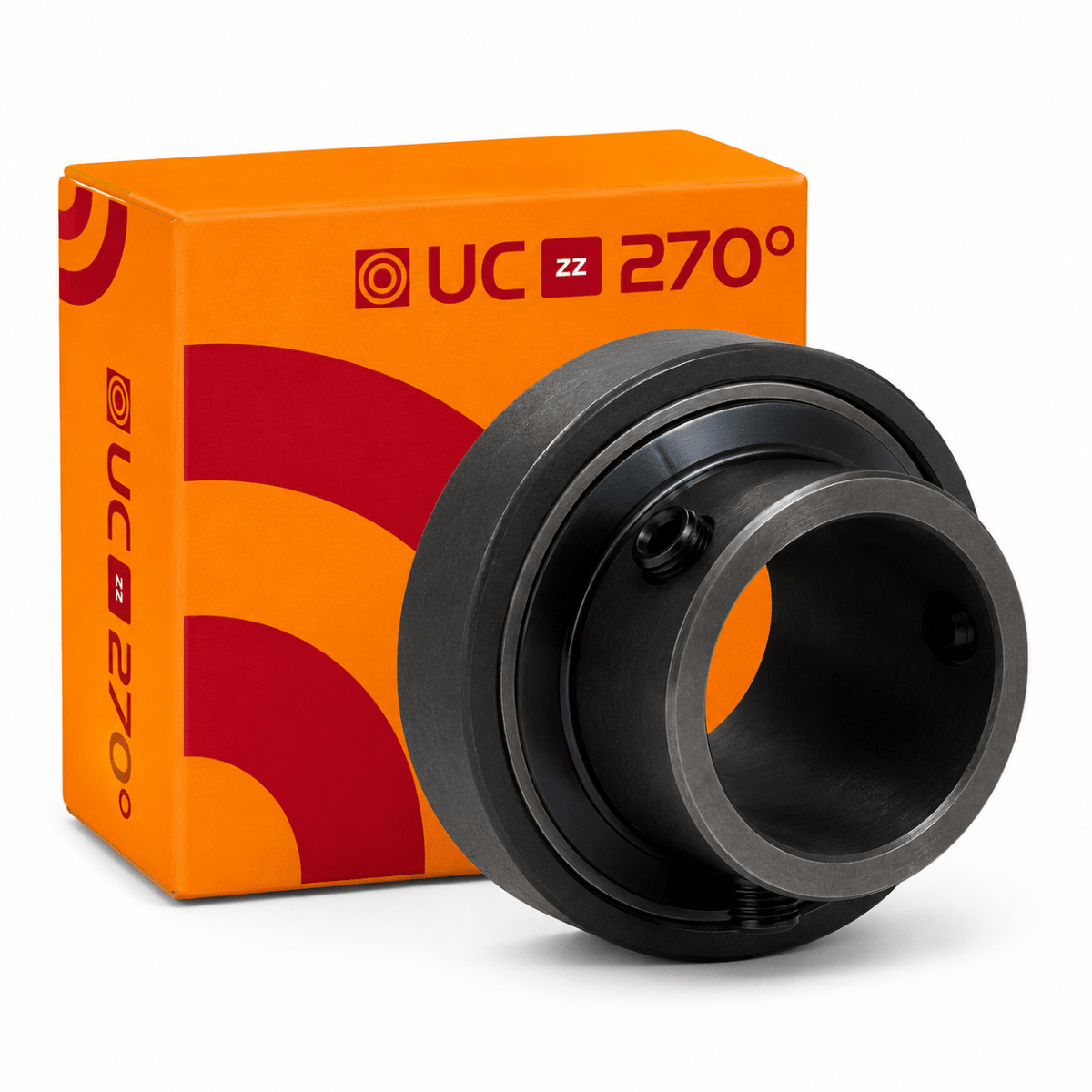

ENC UC201-270C 270°C High Temperature UC Insert Bearing 12 x 47 x 31 mm
Available
This ENC 270°C range covers 15 UC200 series insert bearings with grub screw locking, from 12 to 65 mm bore and 40 to 120 mm outer diameter. Select the size from the drop-down: each size has its own bearing number and dimensions, and the sizes with published figures also list basic dynamic and static load ratings, mass and speed.
Each insert is made from AISI 52100 steel with a manganese phosphate surface treatment and increased radial clearance to compensate for thermal expansion. It is factory greased with Molyguard CF-2 grease, specified from -35°C up to 270°C. The insert locates on the shaft with a grub screw and seats in a matching UC200 series housing.
Where this product is used
- Brick manufacturing kiln karts and ceramic industry kilns
- High temperature rollers
- Steel and glass manufacturing
Features
- Grub screw locking on the shaft, in UC200 series sizes from 12 to 65 mm bore
- AISI 52100 steel with a manganese phosphate surface treatment, increased radial clearance for thermal expansion and Molyguard CF-2 grease from -35°C up to 270°C
- Basic dynamic load ratings 9.81 to 26.97 kN and static load ratings 6.18 to 19.81 kN, with speeds of 85 to 275 rpm, across the sizes with published figures
Key specifications
| Specification | Detail |
|---|---|
| Type | UC200 series insert bearing, grub screw locking |
| Sizes | 15 sizes, UC201 to UC213 |
| Bore d | 12 to 65 mm |
| Outer diameter D | 40 to 120 mm |
| Width B | 31 to 65.1 mm |
| Material | AISI 52100 steel, manganese phosphate surface treatment |
| Radial clearance | Increased, to compensate for thermal expansion |
| Grease | Molyguard CF-2 grease, -35°C to 270°C |
| Basic dynamic load rating Cr | 9.81 to 26.97 kN |
| Basic static load rating Cor | 6.18 to 19.81 kN |
| Speed | 85 to 275 rpm |
Available sizes
Show all 15 sizes

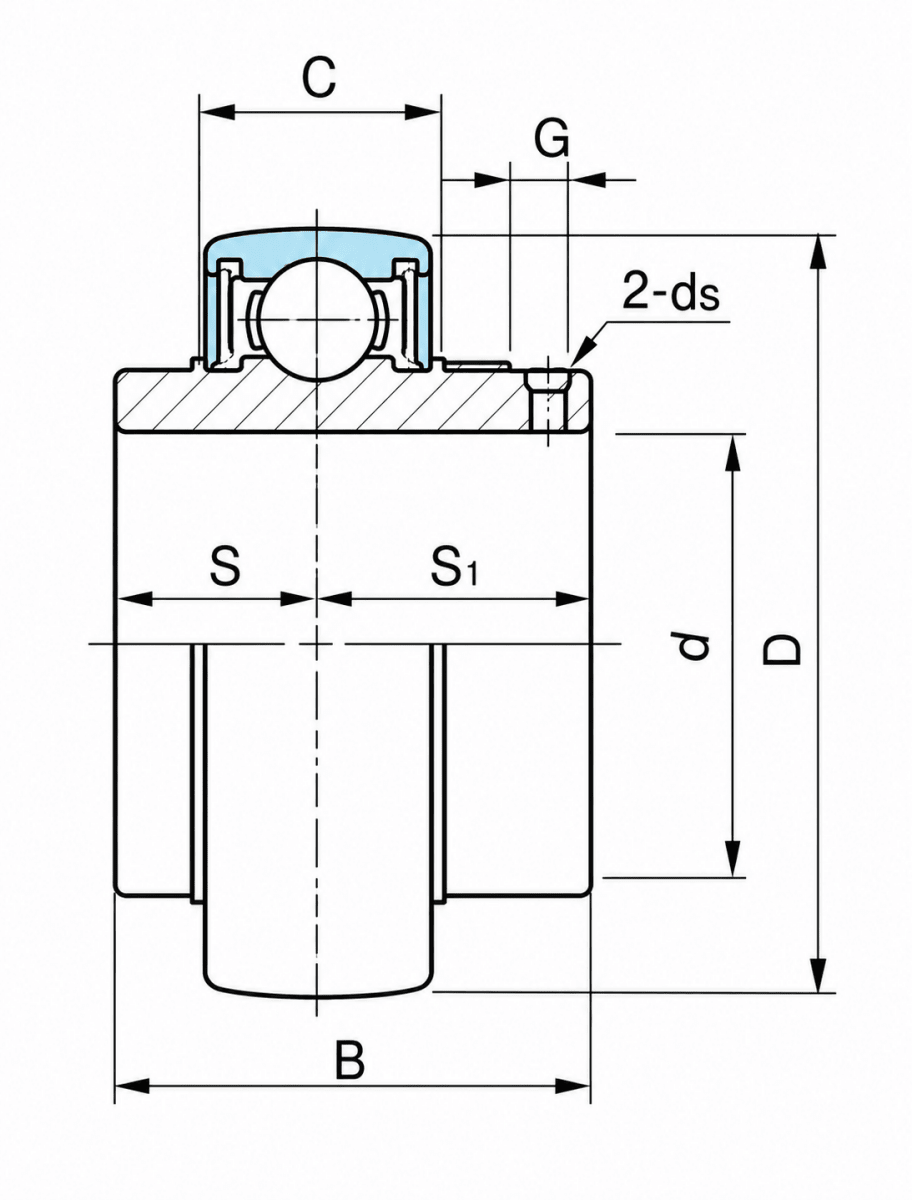

| Model | Size d x D x B (mm) | Grub screw thread | Cr (kN) | Cor (kN) | Mass (kg) | Speed (rpm) |
|---|---|---|---|---|---|---|
| UC201-270C | 12 x 47 x 31 | M6 x 1.0 | 9.81 | 6.18 | 0.21 | 275 |
| UC202/40-270C | 15 x 40 x 31 | – | – | – | – | – |
| UC202-270C | 15 x 47 x 31 | M6 x 1.0 | 9.81 | 6.18 | 0.19 | 195 |
| UC203/40-270C | 17 x 40 x 31 | – | – | – | – | – |
| UC203-270C | 17 x 47 x 31 | M6 x 1.0 | 9.81 | 6.18 | 0.18 | 185 |
| UC204-270C | 20 x 47 x 31 | M6 x 1.0 | 9.81 | 6.18 | 0.16 | 170 |
| UC205-270C | 25 x 52 x 34 | M6 x 1.0 | 10.79 | 6.96 | 0.2 | 155 |
| UC206-270C | 30 x 62 x 38.1 | M6 x 1.0 | 14.91 | 10.00 | 0.32 | 130 |
| UC207-270C | 35 x 72 x 42.9 | M8 x 1.0 | 19.71 | 13.63 | 0.48 | 100 |
| UC208-270C | 40 x 80 x 49.2 | M8 x 1.0 | 25.11 | 17.75 | 0.64 | 95 |
| UC209-270C | 45 x 85 x 49.2 | M8 x 1.0 | 25.11 | 17.75 | 0.68 | 90 |
| UC210-270C | 50 x 90 x 51.6 | M10 x 1.0 | 26.97 | 19.81 | 0.8 | 85 |
| UC211-270C | 55 x 100 x 55.6 | M10 x 1.25 | – | – | – | – |
| UC212-270C | 60 x 110 x 65.1 | M10 x 1.25 | – | – | – | – |
| UC213-270C | 65 x 120 x 65.1 | M12 x 1.5 | – | – | – | – |
A dash means no figure is published for that size, so only its dimensions are given.
Selecting the right option
UC200 series inserts are chosen by shaft diameter (bore d) and need a matching UC200 series housing. Sizes with no rating, mass or speed in the table have dimensions only, so confirm load and speed with AIMS before ordering.
This range is the ENC 270°C range: Molyguard CF-2 grease is specified from -35°C up to 270°C.
Fitting and use
Check the load, speed and working temperature against the figures for your size before ordering and apply a suitable safety factor.
ENC bearings are greased at the factory. Do not wash the grease out.
Fit the insert on a clean shaft and lock it with the grub screw once it is positioned in the housing.
Related products
Also available from ENC: the 250°C 2RS sealed deep groove range and the 270°C ZZ shielded deep groove range.
