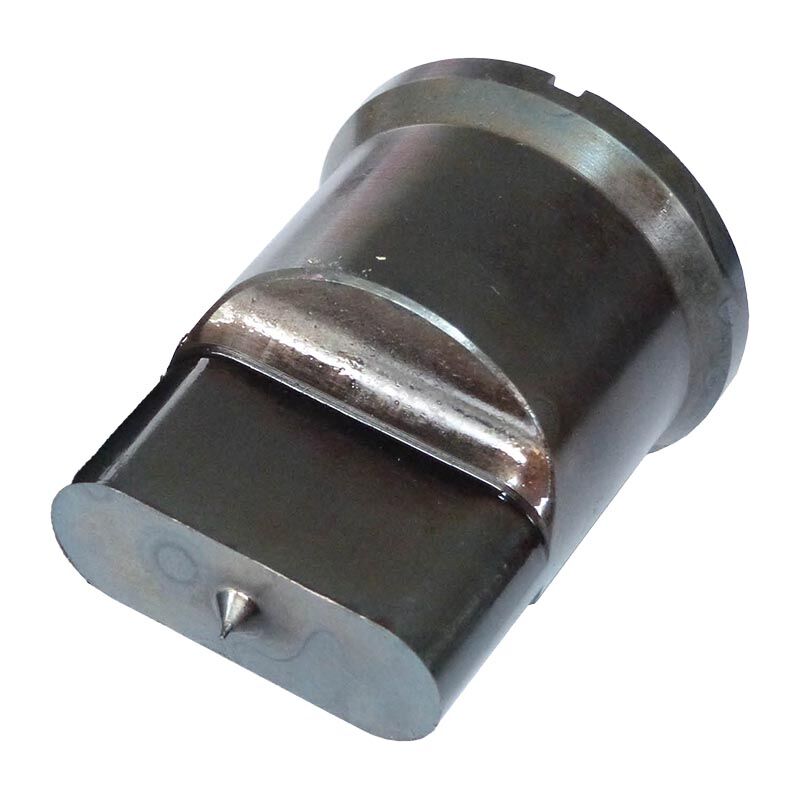

Excision 210/16 Oblong Punch 24106050200 5 x 20mm

Excision 210/16 oblong punches (code 24106) are punch tooling for steelworkers and punching machines, in 48 hole sizes from 5 x 20mm to 26 x 30mm. The punch size is the hole size produced.

They suit Peddinghaus 210/16 and 210/20, Sunrise (after 2002), Geka 8(16), Durma, IMS, Gairu, Kingsland 9001 and Scotchman machines, with a matching 210/16, 210/13 or No.8 die. The part code is the series number 24106 followed by the width and then the length in tenths of a millimetre, so 24106180300 is the 18 x 30mm punch. Other shapes and sizes are made to order.

Where this product is used

• Punching oblong holes on steelworkers and punching machines
• Machines: Peddinghaus 210/16 and 210/20, Sunrise (after 2002), Geka 8(16), Durma, IMS, Gairu, Kingsland 9001 and Scotchman

Features

• The punch size is the hole size produced

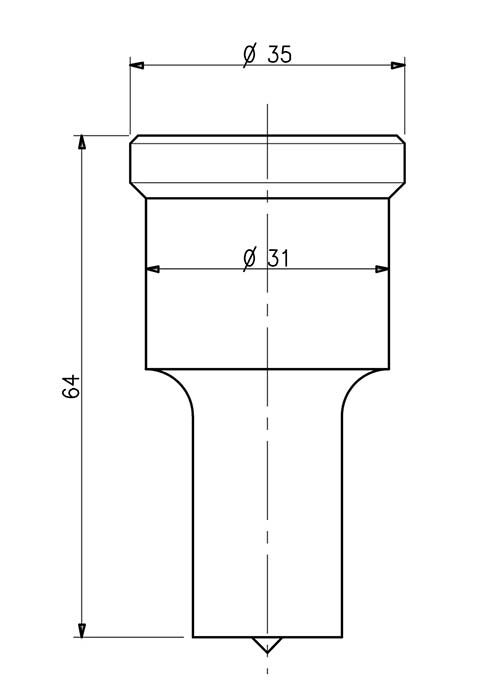

• Head diameter 35mm, body diameter 31mm and length 64mm
• Matching die: 210/16, 210/13 and No.8
• Material thicker than the punch diameter should not be punched
• Die clearance should be about 10% of the material thickness
• Excision Punch & Die Lubricant extends punch life
• Heat treated in a closely controlled process

Key specifications

Choosing the right option

Choose the width and length of the hole you need, because the punch size is the hole size produced, and order the matching 210/16, 210/13 or No.8 die. For round holes see the 210/16 round punches.
