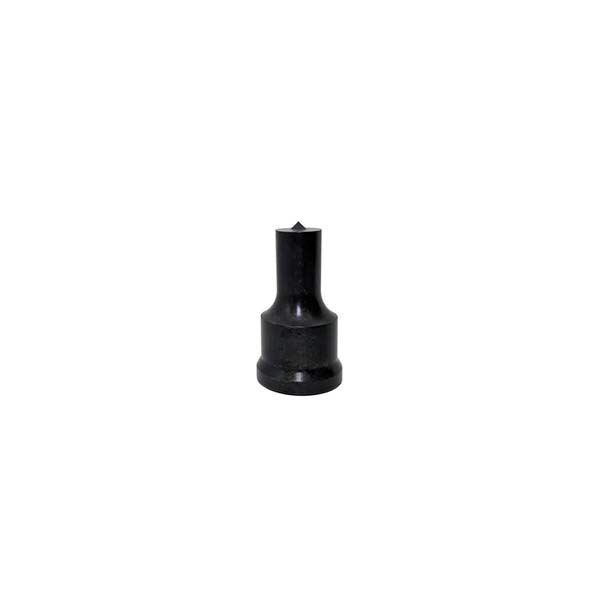

Excision 210/16 Round Punch 24106020 2mm

Excision 210/16 round punches (code 24106) are punch tooling for steelworkers and punching machines, in 38 hole sizes from 2mm to 31mm. The punch size is the hole size produced.

They suit Peddinghaus 210/16 and 210/20, Sunrise (after 2002), Geka 8(16), Durma, IMS, Gairu, Kingsland 9001 and Scotchman machines, with a matching 210/16, 210/13 or No.8 die. The part code is the series number 24106 followed by the hole size in tenths of a millimetre, so 24106140 is the 14mm punch. Other shapes and sizes are made to order.

Where this product is used

• Punching round holes on steelworkers and punching machines
• Machines: Peddinghaus 210/16 and 210/20, Sunrise (after 2002), Geka 8(16), Durma, IMS, Gairu, Kingsland 9001 and Scotchman

Features

• The punch size is the hole size produced

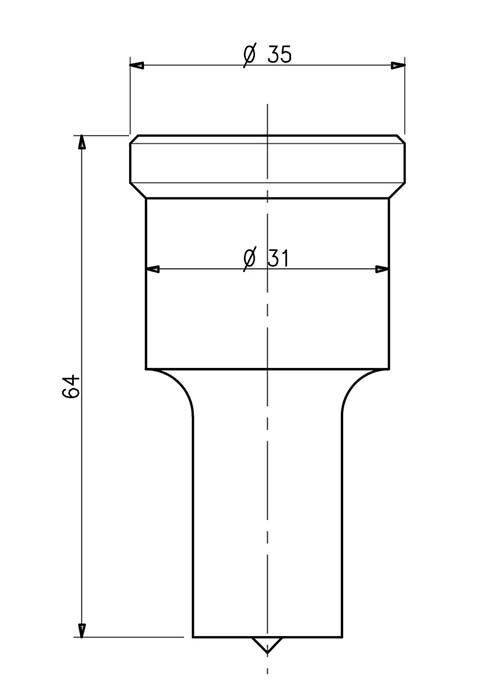

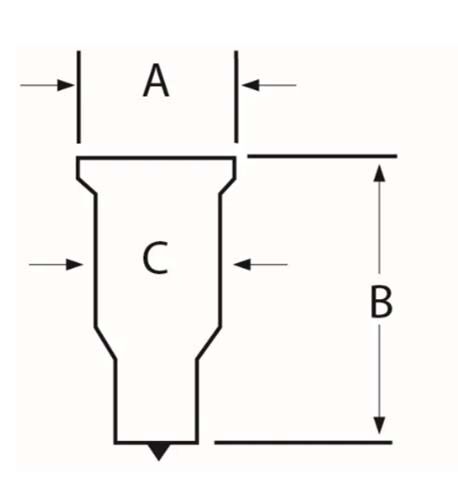

• Head diameter 35mm, body diameter 31mm and length 64mm
• Matching die: 210/16, 210/13 and No.8
• Material thicker than the punch diameter should not be punched
• Die clearance should be about 10% of the material thickness
• Excision Punch & Die Lubricant extends punch life
• Heat treated in a closely controlled process

Key specifications

Choosing the right option

Choose the hole size you need, because the punch size is the hole size produced, and order the matching 210/16, 210/13 or No.8 die. For oblong holes see the 210/16 oblong punches, and for older Mubea and Sunrise machines see the Group 1 round punches.
