Excision Group 1 Round Punch 24101040 4mm

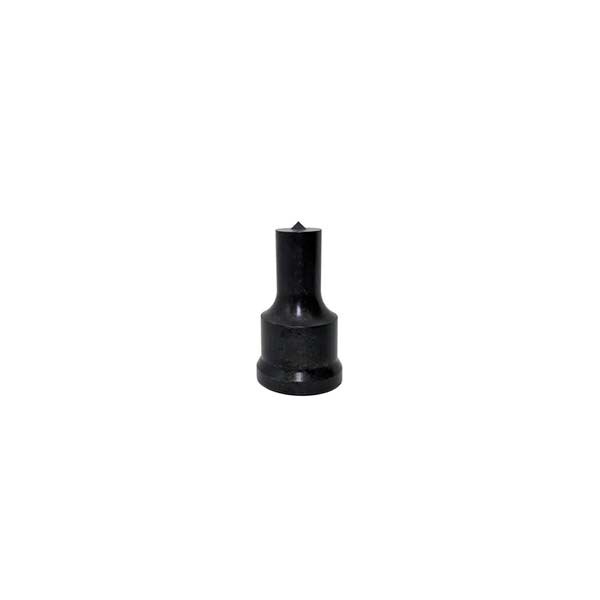

Excision Group 1 round punches (code 24101) are punch tooling for steelworkers and punching machines, in 8 hole sizes: 4, 6, 9, 10, 11, 13, 14 and 15mm. The punch size is the hole size produced.

They suit Mubea, Sunrise (before 2002) and Metalmaster machines, with a matching Group 1 die. The part code is the series number 24101 followed by the hole size in tenths of a millimetre, so 24101100 is the 10mm punch. Other shapes and sizes are made to order.

Where this product is used

• Punching round holes on steelworkers and punching machines
• Machines: Mubea, Sunrise (before 2002) and Metalmaster

Features

• The punch size is the hole size produced

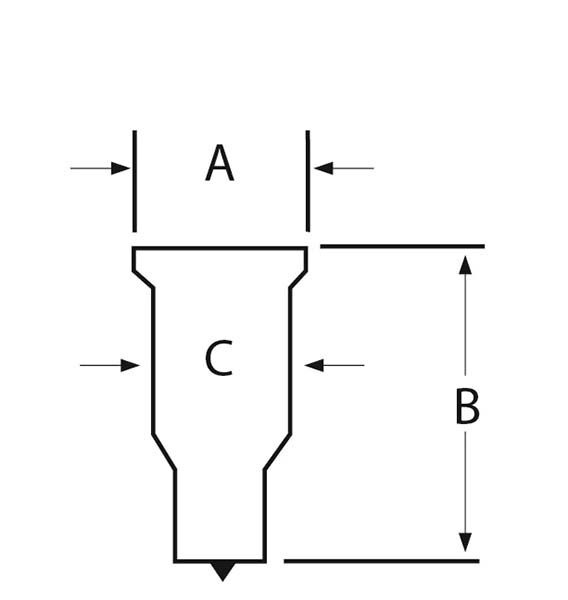

• Head diameter 20mm, body diameter 15mm and length 40mm
• Matching die: Group 1
• Material thicker than the punch diameter should not be punched
• Die clearance should be about 10% of the material thickness
• Excision Punch & Die Lubricant extends punch life
• Heat treated in a closely controlled process

Key specifications

Choosing the right option

Choose the hole size you need, because the punch size is the hole size produced, and order the matching Group 1 die. For punches for Peddinghaus 210/16 machines see the 210/16 round punches and the 210/16 oblong punches.
