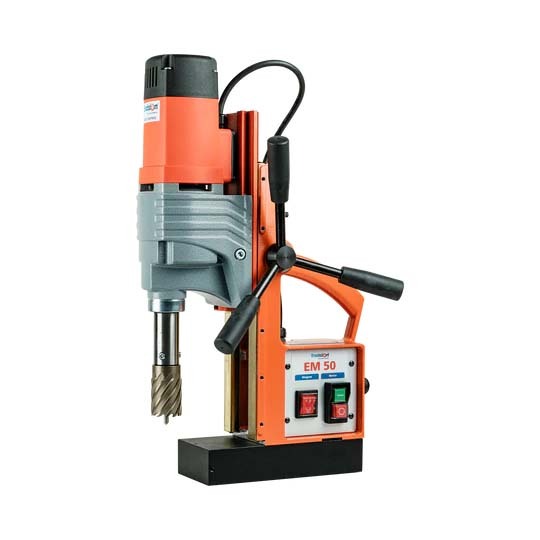

Excision EM50 Magnetic Drill - 18510
Available
Excision EM50 is an electric magnetic based drill for core drilling to 50mm diameter, with a 2-speed gearbox. Two coils give 12,000N of magnetic adhesion, and a spring loaded guide gives rigid gliding and removes vibration.
A height adjustable slide lets you use standard twist drills, and the direct Weldon arbor spindle keeps the cutter concentric. It takes twist drills to 16.0mm with a chuck, and taps M3 to M20 with a tapping attachment. Made in Germany.
Where this product is used
- Core drilling steel with 19mm Weldon shank core drills, 12.0 to 50.0mm diameter
- Twist drilling from 1.0 to 16.0mm with a chuck
- Counterboring from 10.0 to 40.0mm
- Tapping from M3 to M20 with a tapping attachment
Features
- 2-speed gearbox, 250rpm and 450rpm on load
- 2 coil magnet with 12,000N magnetic adhesion
- Spring loaded guide for rigid gliding that removes vibration
- Height adjustable slide for standard twist drills
- Integrated coolant system with coolant unit
- Direct Weldon arbor spindle for concentricity and versatility
- Made in Germany
Key specifications
| Specification | Detail |
|---|---|
| Brand | Excision |
| Model | EM50 magnetic based drill |
| Part number | 18510 |
| Core drill diameter | 12.0 to 50.0mm |
| Cutting depth | 50.0mm |
| Twist drill | 1.0 to 16.0mm with a chuck |
| Counterboring | 10.0 to 40.0mm |
| Tapping | M3 to M20 with a tapping attachment |
| Arbor | 19mm Weldon shank |
| Stroke | 190mm |
| Height adjustment | 100mm |
| Speed on load | 2-speed: 250rpm and 450rpm |
| Power | 1,200W, 230V 50/60Hz |
| Tool force (10mm) / magnetic adhesion | 3,500N / 12,000N |
| Magnetic base | 92 x 220mm |
| Weight | 15.0kg |
| Made in | Germany |
Supplied with
- Metal core drilling machine EM50
- Carrying case
- Safety strap
- Operating instructions
Choosing the right option
This is the EM50 for core drills to 50mm. For smaller cores see the EM40 and the EMB35 kit, or the Magnex Drill 40 for a permanent magnet. A keyed drill chuck, part number 18106, is the matching accessory for twist drills.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Excision EM50 Magnetic Drill - 18510
SKU: A0205269 | Model: 18510
The 18510 is the Excision EM50 magnetic based drill. It is a 2-speed electric magnetic based drill for core drilling to 50mm diameter.
