Excision EMB 35 Magnetic Based 18405 | AIMS Industrial

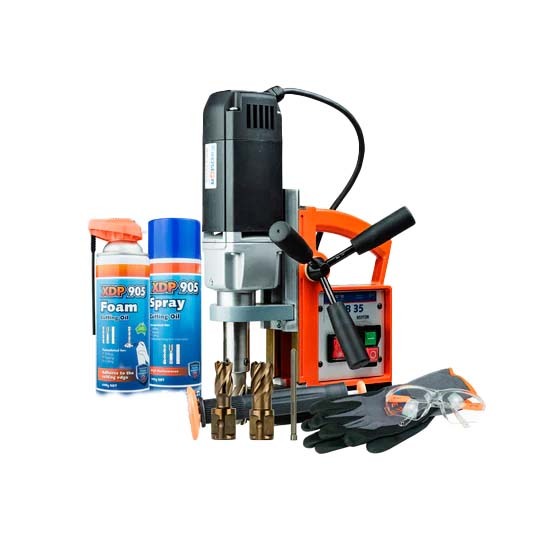

Excision EMB35 Fabricator's Kit

• The Excision EMB 35 magnetic based drill is the machine for the efficient drilling of holes under 35mm.
• Weighing only 10.6kg, this German made drill is durable for any small engineering application.
• The direct Weldon arbor type spindle is capable of handling all 19mm shank core drills.
• Spring loaded guides for rigid gliding and reduced vibration.
• Direct Weldon arbor type spindle for use with all 19mm shank core drills.
• Durable switches for long lasting use.
• 2 Coil 9,000N Magnetic adhesion for industrial use.
• Made in Germany.

Specifications

• Core Drill Dimensions: 12.0-35.0mm
• Cutting Depth: 50.0mm
• Twist Drill: 1.0-13.0mm with MT3 DIN 1897 short
• Arbors: 19mm Weldon Shank
• Stroke: 120mm
• Gearbox-On-load speed: 450rpm
• Power Consumption: 1,100 W
• Voltage: 230V 50/60Hz
• Tool Force (10mm)/Magnetic Adhesion: 2,100N/10,000N
• Magnetic Base: 70 x 185mm
• Weight: 10.6kg

Kit Inclusion

• 14mm core drill
• 18mm core drill
• XDP905 Foam & Spray
• Swarf Remover
• Glasses & Gloves
