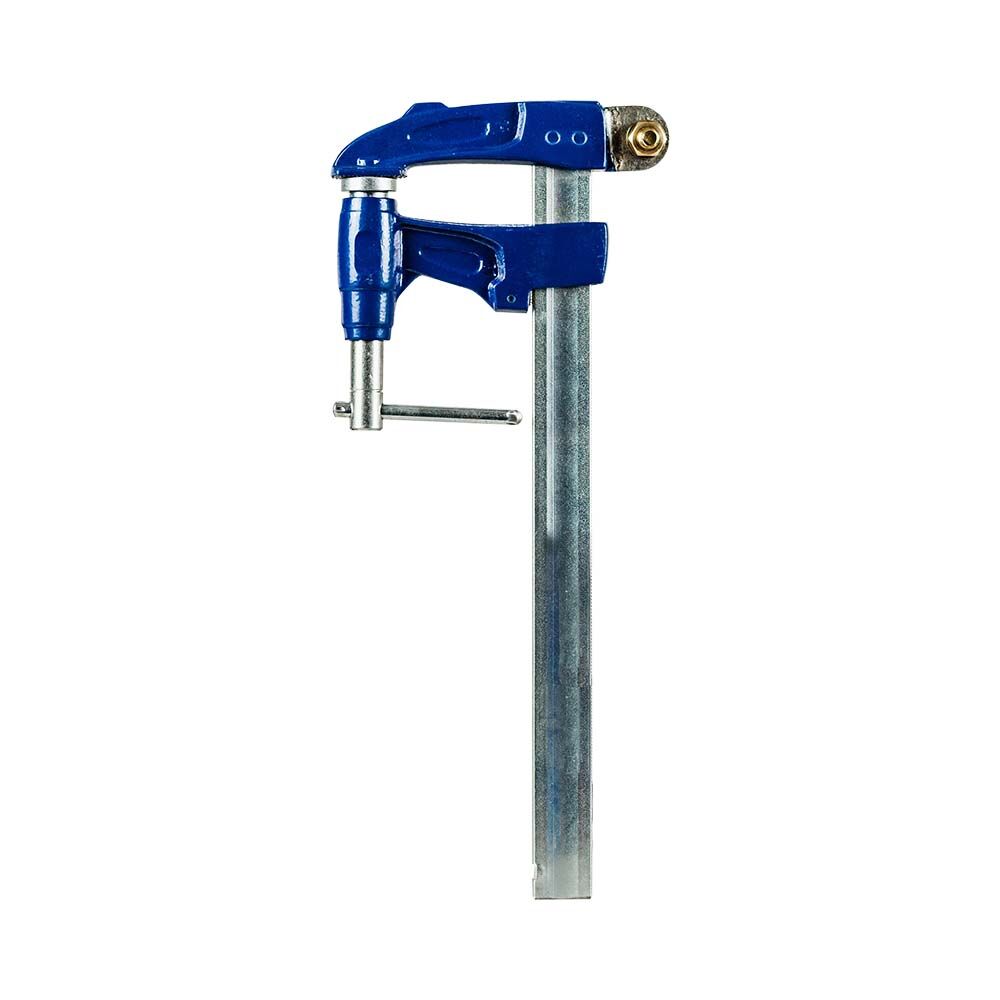

Excision 326300120 EX Earth Xtreme Clamp 300 x 120mm

Excision EX Earth Xtreme clamp, part number 326300120, is a heavy duty clamp with an earth lug and contact plate for a safe and easy earth connection. It has a 300mm bar opening, 120mm jaw depth, 35 x 8mm solid bar and 1200kg clamping force.

The special contact plate is rated to 800amps. A hardened steel bar brake and a trapezoidal thread that is totally sealed and permanently lubricated give powerful clamping force with less effort, and the sealed thread with its internal ball bearing protects against welding slag. Made in Spain.

Where this product is used

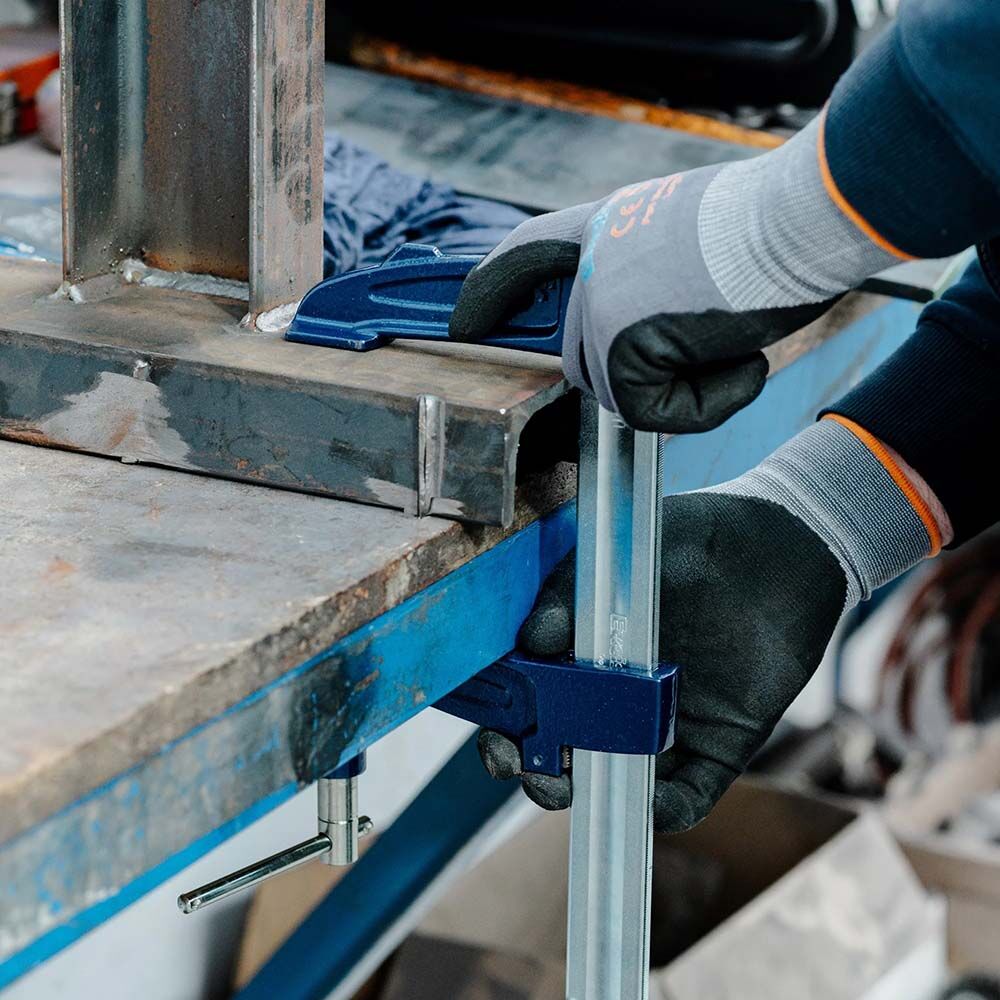

• Welding with an earth connection through the clamp contact plate
• Working with fluids, and humid or salty atmospheres
• All environments and applications including welding

Features

• Earth lug and contact plate for a safe and easy earth connection
• Contact plate rated to 800amps
• Powerful clamping force with less effort
• High precision clamping
• Hardened steel bar brake

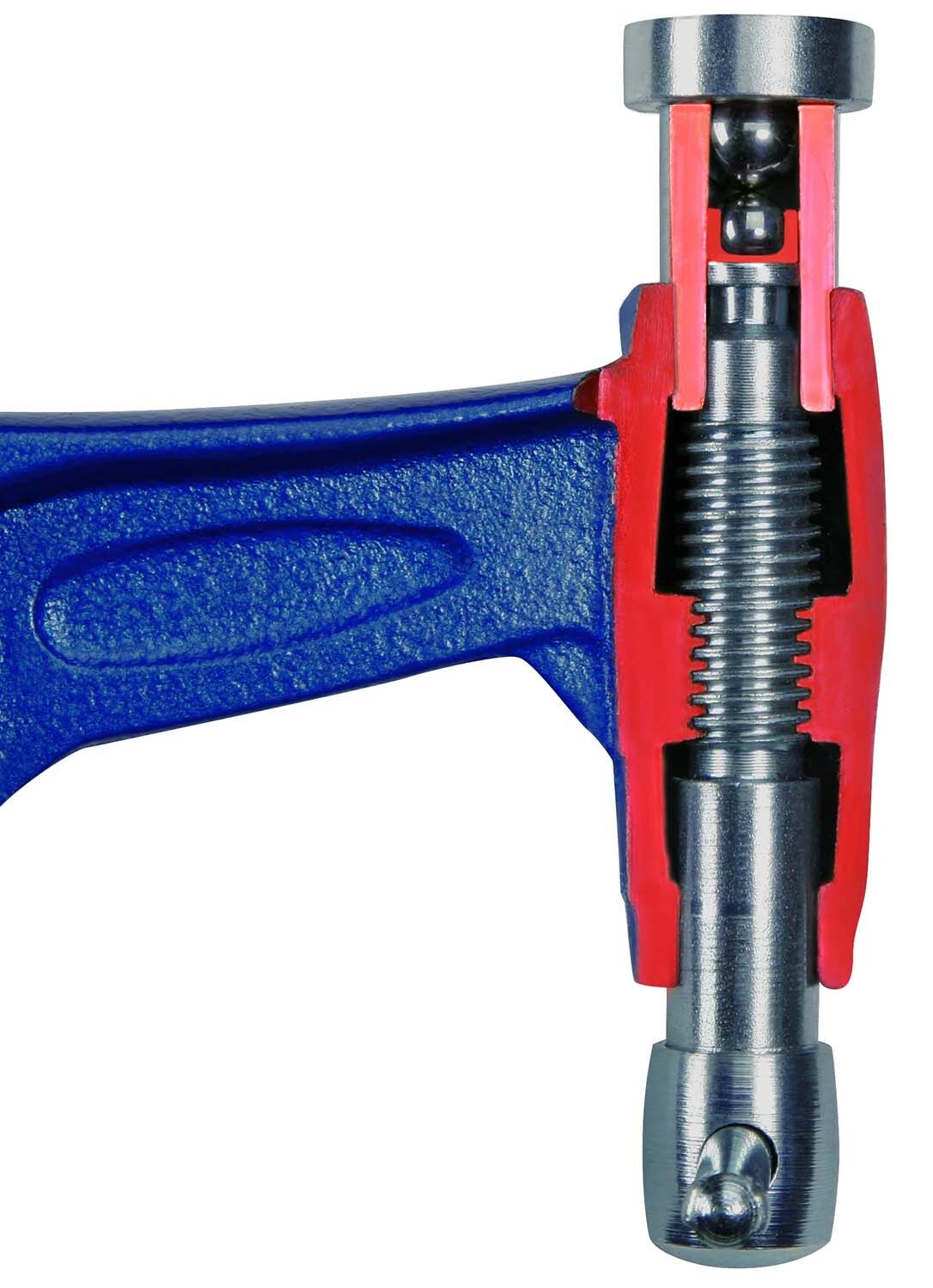

• Trapezoidal thread, totally sealed and permanently lubricated
• Internal ball bearing and completely sealed thread that protects against welding slag
• Made in Spain

Key specifications

Choosing the right option

For a clamp without the earthing plate and in more sizes see the FX Xtreme clamp. For pliers made for welding see the Xtreme Welding GripLox pliers.
