FYH Zinc alloy 2-bolt flange housing, 10mm

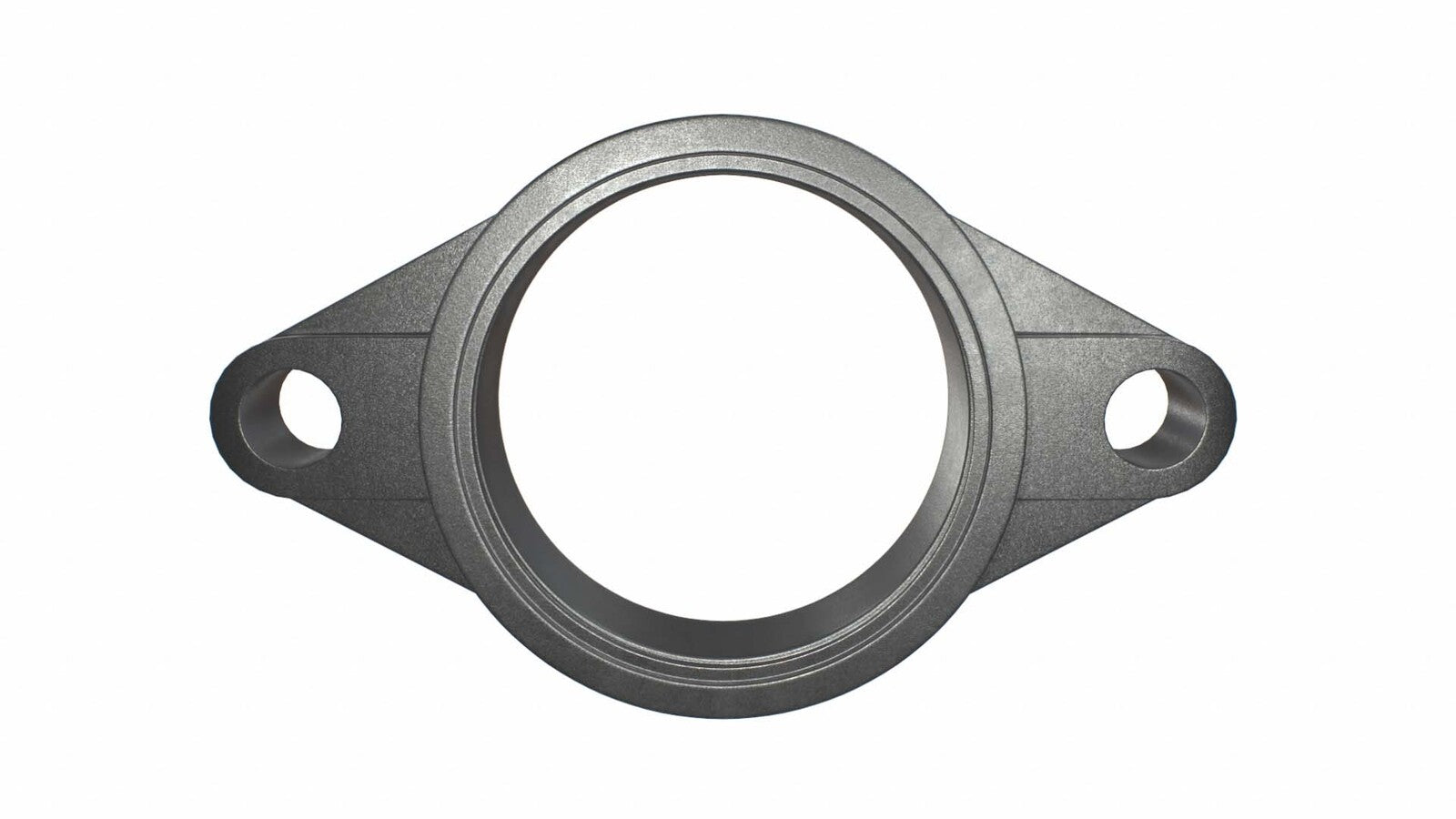

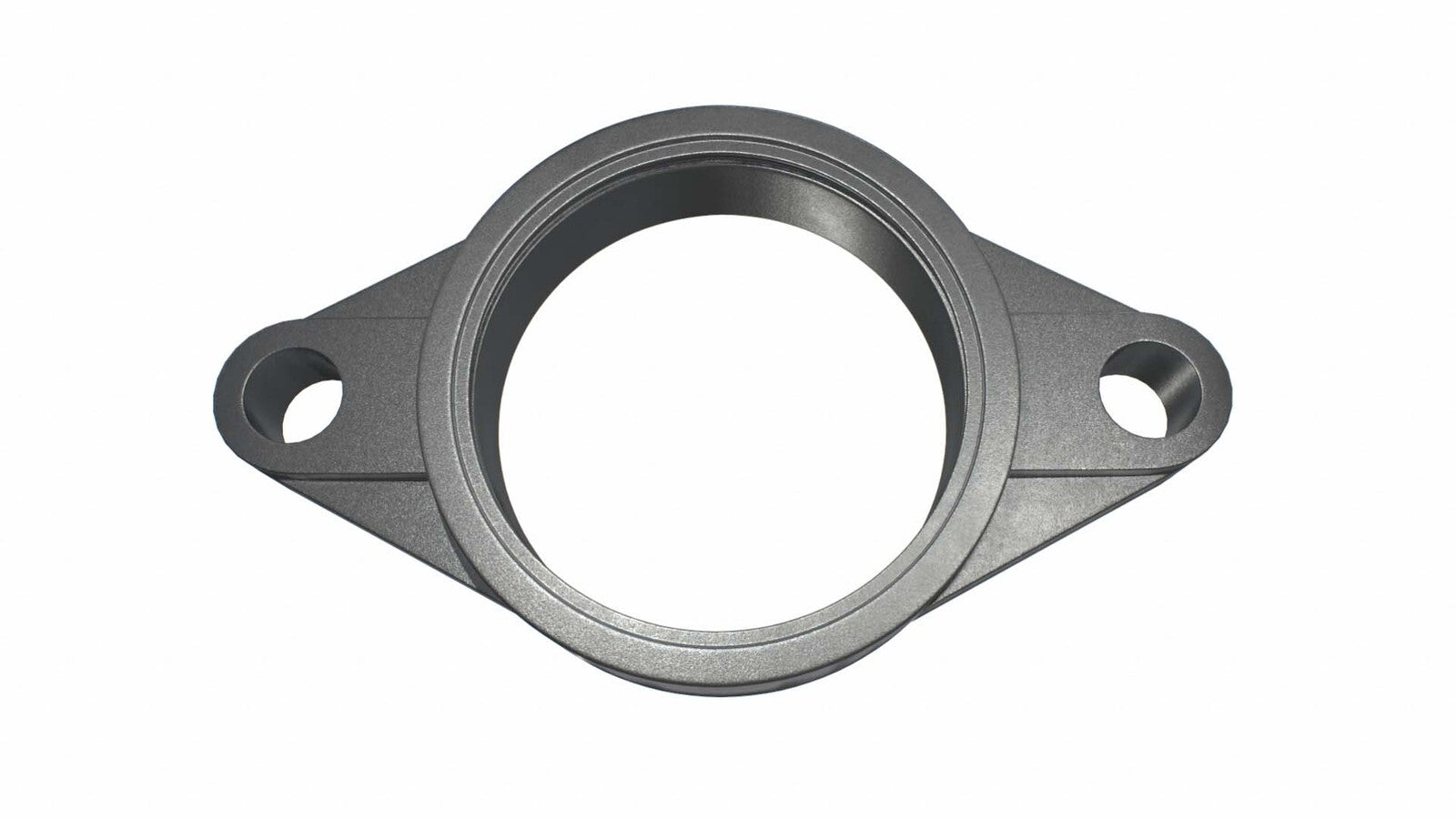

FYH FL000 is a die-cast zinc alloy oval 2-bolt flange bearing housing in the small size light duty range. Select the housing from the drop-down; each size has its own dimension set in the Model Details. These zinc alloy 2-bolt flange housings are supplied without an insert bearing. A complete unit such as UFL003 is the FL003 housing fitted with an SU003 insert bearing, which is ordered separately.

Where this product is used

• Light-duty conveying lines
• Small shafts carrying light loads
• Compact light machinery where space is limited

Features

• Die-cast zinc alloy (ZDC2) housing in the Clean Series, 000 series (diameter series code 0, small size light duty), end covers can be accommodated
• Insert bearings for these housings: SU (set screw, Clean Series) in all sizes
• Housing numbers: FL000 to FL006 (7 sizes)
• Shaft diameter, metric: 10 to 30mm

Key specifications

Fitting and use

The housing is supplied without an insert bearing. Order the insert separately and lock it to the shaft in the way its own type requires: an SU insert locks to the shaft with set screws.

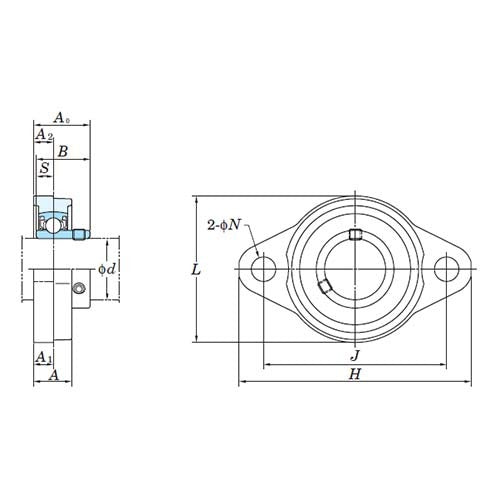

Mount the flange against a flat, rigid face and use the bolt size and bolt hole spacing J shown for the size. J is the bolt hole spacing and N the bolt hole diameter.

Choosing the right option

Match the housing to the insert bearing and the shaft. For example FL003 takes SU003 on a 17mm shaft.

The Bolt Size option is the mounting bolt for the housing unit tables (inch equivalent in the Model Details).

Not sure which insert or housing suits your shaft?

See also: FL200 oval 2-bolt flange housings, LF200 lightweight oval 2-bolt flange housings, P000 pillow block housings.
