M5 Eye/eye Swivel, 316 Stainless Steel - SEEA4M5
The price shown is for the box.
Available

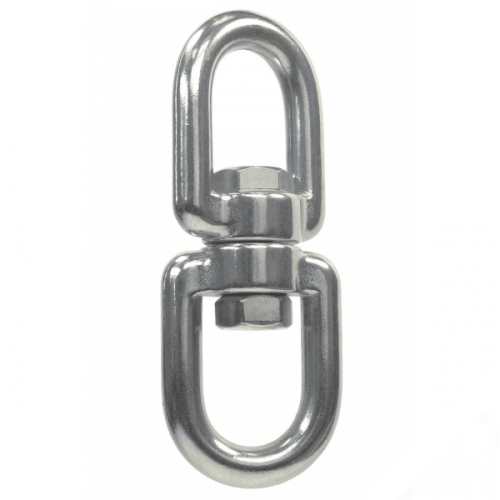

Made in 316 (A4) stainless steel, the Eye-Eye Swivel is a swivel with an eye at each end. The body turns so the line does not twist.
Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant.
You can choose from 4 variants, covering sizes M5 to M10. Variants are supplied in packs of 5 to 10, depending on size.
Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.
Where this product is used
- Architectural work near the coast
- Shade sails, awnings and tensioned structures
- Balustrade and wire fencing
- Food and beverage processing equipment
- Coastal and architectural fittings
Features
- Eye at each end
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Swivel body prevents line twist
- Pack quantities to suit trade and bulk buying: packs of 5 to 10
- Choice of 4 sizes, M5 to M10

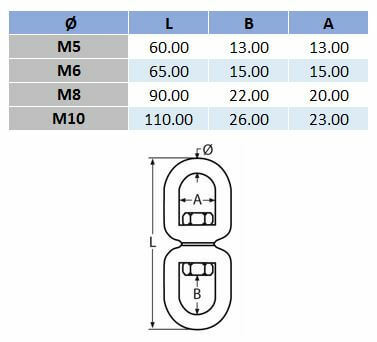

Key specifications
| Specification | Detail |
|---|---|
| Product | Eye-Eye Swivel |
| Type | Swivel with an eye at each end |
| Material | A4 (316) stainless steel |
| Size basis | Supplier's size code (the M prefix does not always mean a thread size) |
| Key features | Eye at each end; Swivel body prevents line twist |
| Environment | Coastal, marine, pool and food-processing use |
| Number of variants | 4 |
| Pack quantity | 5 to 10, by size |
| Sizes available | M5 to M10 |
Selecting the right option
Choose the swivel by the size shown on the variant.
Important
Do not use this product to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Eye-Eye Swivel - 316 Stainless Steel: M5
SKU: A0088130 | Model: SEEA4M5
SEEA4M5: M5 eye/eye swivel, 316 Stainless Steel. Sold in a box of 10. Suits marine rigging, boat and yacht fittings.
