Fenner Drives fenner NuTLink Link V-Belt, A

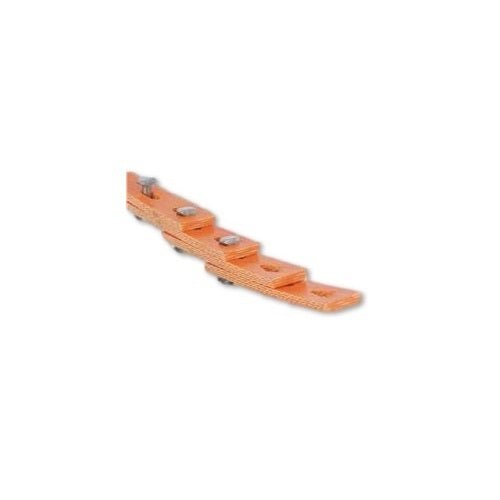

Fenner NuTLink is a link V-belt in a composite polyester/polyurethane construction, with the links joined by metal T-studs. The belt is made up to length and fitted without dismantling the drive.

It suits heavier, shock-loaded drives and drives powered by reciprocating engines. Choose the section that matches the pulley grooves: A/13, B/17, C/22 or Z/10.

Where this product is used

• Heavier, shock-loaded drives
• Drives powered by reciprocating engines
• Fixed-centre and captive drives where the pulleys cannot be moved
• Breakdown and emergency belt replacement

Features

• Links joined with metal T-studs, with no drive teardown for fitting
• Composite polyester/polyurethane links
• Resists abrasive materials, water, steam, oil and most chemicals
• Operating temperature range -40 to +116 °C (-40 to +240 °F)
• Four sections: Z/10, A/13, B/17 and C/22
• Orange belt, RoHS compliant

Key specifications

Supplied with

• Z/10, 10mm, 45mm, 1.6 to 4.6mm
• A/13, 13mm, 80mm, 2.0 to 7.8mm
• B/17, 17mm, 125mm, 2.2 to 9.3mm
• C/22, 22mm, 229mm, 0.1 to 5.4mm

Fitting and use

The links are joined with metal T-studs, so the belt is fitted without taking the drive apart. Add or remove links until the belt is the right length and tension for the drive.

Replace every belt on a multi-belt drive at the same time so the load is shared evenly, and check the pulley grooves for wear before fitting.

Choosing the right option

Section A/13 is 13mm wide, B/17 is 17mm, C/22 is 22mm and Z/10 is 10mm.

Do not run the belt on pulleys below the minimum pulley diameter for the section.
