FYH Cast iron 2-bolt flange housing, M16, 25mm (1")
Available

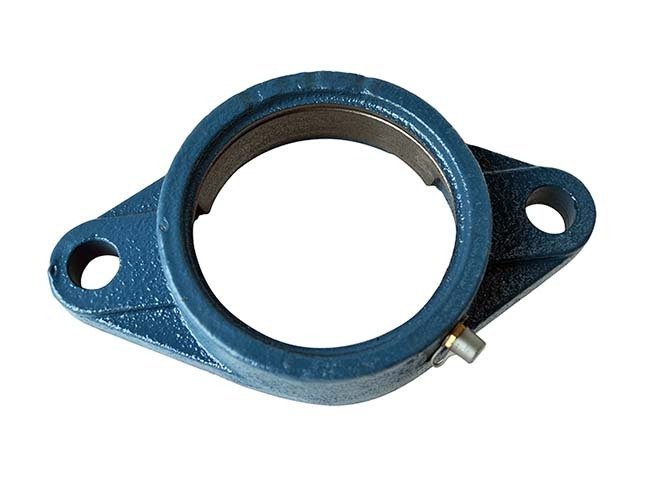

FYH FL300 is a cast iron oval 2-bolt flange bearing housing in the heavy duty range. Select the housing from the drop-down; each size has its own dimension set in the Model Details. These 2-bolt flange housings are supplied without an insert bearing. A complete unit such as UCFL313 is the FL313 housing fitted with a UC313 insert bearing, which is ordered separately (see Related products).
Where this product is used
- Machine frames with a flat mounting face
- Conveyors and drives
- Fans and pumps
- General industrial machinery
Features
- Cast iron housing, 300 series (diameter series code 3, heavy duty)
- Insert bearings for these housings: UC (set screw) in all sizes, UK (tapered bore, adapter sleeve) in 16 of 17 sizes
- Housing numbers: FL305 to FL324 (17 sizes)
- Shaft diameter, metric: 25 to 120mm
Key specifications
| Specification | Detail |
|---|---|
| Product type | Bearing housing (housing only, insert bearing ordered separately) |
| Housing numbers | FL305 to FL324 (17 sizes) |
| Series | 300 series (diameter series code 3, heavy duty) |
| Housing material | Cast iron |
| Shaft diameter, metric | 25 to 120mm |
| Shaft diameter, inch | 1 to 4" (7 of 17 housings are metric bore only) |
| Insert bearings | UC (set screw) in all sizes, UK (tapered bore, adapter sleeve) in 16 of 17 sizes |
| Mounting bolt size | M16 to M42 |
| Overall length H (mm) | 150 to 520 |
| Width L (mm) | 80 to 330 |
| Bolt hole spacing J (mm) | 113 to 430 |
| Bolt hole diameter N (mm) | 19 to 47 |
| Brand | FYH (FYH Inc., Japan) |
Fitting and use
The housing is supplied without an insert bearing. Order the insert separately and lock it to the shaft in the way its own type requires: a UC insert locks to the shaft with two set screws; a UK insert is a tapered bore insert that mounts on the shaft with an adapter sleeve.

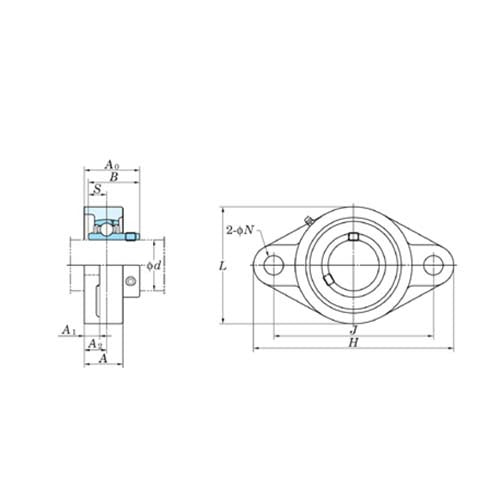

Mount the flange against a flat, rigid face and use the bolt size and bolt hole spacing J shown for the size. J is the bolt hole spacing and N the bolt hole diameter.
Choosing the right option
Match the housing to the insert bearing and the shaft. For example FL313 takes UC313 on a 65mm shaft.
Choose the metric size for a metric shaft; for an inch shaft pick the same housing and order the insert with the matching dash number (for example UC313-40). Sizes without an inch bore in the unit tables: FL306, FL307, FL310, FL316, FL317, FL322, FL324.
The Bolt Size option is the mounting bolt for the housing unit tables (inch equivalent in the Model Details).
Not sure which insert or housing suits your shaft?
See also: UC300 metric set screw insert bearings, UC300 inch set screw insert bearings, UK300 tapered bore insert bearings, FL200 oval 2-bolt flange housings.
| Option | Part number | SKU |
|---|---|---|
| M16 / 25mm (1") | A0202699 | |
| M20 / 30mm | A0202700 | |
| M20 / 35mm | A0202701 | |
| M20 / 40mm (1 1/2") | A0202702 | |
| M22 / 45mm (1 3/4") | A0202703 | |
| M22 / 50mm | A0202704 | |
| M22 / 55mm (2, 2 3/16") | A0202705 | |
| M27 / 60mm (2 7/16") | A0202706 | |
| M27 / 65mm (2 1/2") | A0202707 | |
| M30 / 70mm (2 3/4") | A0202708 | |
| M30 / 75mm (2 15/16 - 3") | A0202709 | |
| M33 / 80mm | A0202710 | |
| M33 / 85mm | A0202711 | |
| M33 / 90mm (3 1/2") | A0202712 | |
| M39 / 100mm (3 15/16 - 4") | A0202713 | |
| M39 / 110mm | A0202714 | |
| M42 / 120mm | A0202715 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
FYH FL300 Heavy Duty Oval 2-Bolt Flange Bearing Housing, FL305 to FL324, Cast Iron: M16 / 25mm (1")
SKU: A0202699 | Model: FL305/FYH
FYH FL305 oval 2-bolt flange bearing housing for UC305 inserts, 25mm (1") shaft. H 150 x L 80, J 113mm.
