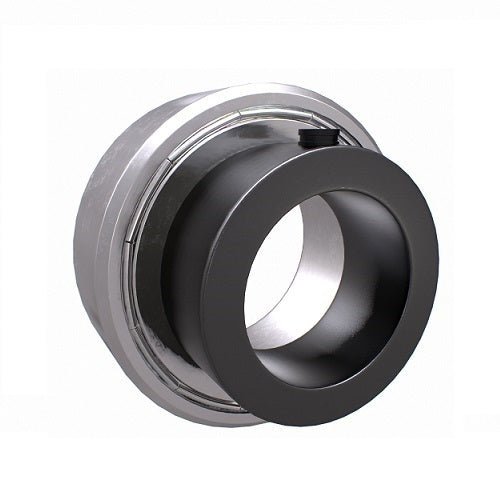

FYH SAA205-16FP7 Insert Bearing, Eccentric Collar, Cylindrical O.D., 1 in Bore (Imperial)

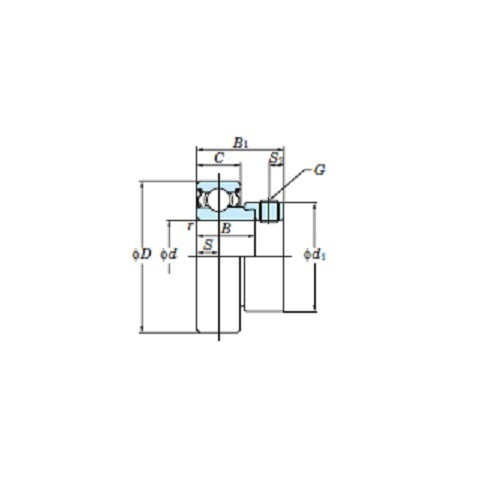

FYH SAA205-16FP7 is an eccentric collar insert bearing with cylindrical O.D. with a 1" bore (25.4mm). It measures 52mm (2.047") O.D. by 21.5mm (0.846") inner ring width, with a basic dynamic load rating of 14kN and a static rating of 7.85kN.

It has an eccentric locking collar and a cylindrical O.D. for press-fit mounting directly into machinery; it is not self-aligning and cannot be mounted in traditional housings.

Where this product is used

• Machinery with a machined bore that takes a cylindrical O.D. insert
• Conveyor rollers, drive shafts and idler stations
• Fans, blowers and pumps
• Agricultural, construction and general industrial machinery

Features

• Eccentric locking collar for a 1" shaft: the collar engages the inner ring and a set screw is tightened to hold it
• Cylindrical O.D. for press-fit mounting directly into machinery, not self-aligning and not for traditional housings
• Basic dynamic load rating Cr 14kN and static rating C0r 7.85kN
• Type: Insert bearing (deep groove ball bearing) with eccentric locking collar and cylindrical O.D

Key specifications

Fitting and use

Press-fit the insert into a machined bore. It is not self-aligning, so the bore must be machined square to the shaft. Fit the collar against the inner ring and tighten its set screw.

Choosing the right option

If you need another shaft size, the related pages below list the other sizes in this range.

Imperial (inch) bores are in fractions of an inch; the Model Details give the size in mm with the inch size in brackets: match the bore to the shaft you have.
