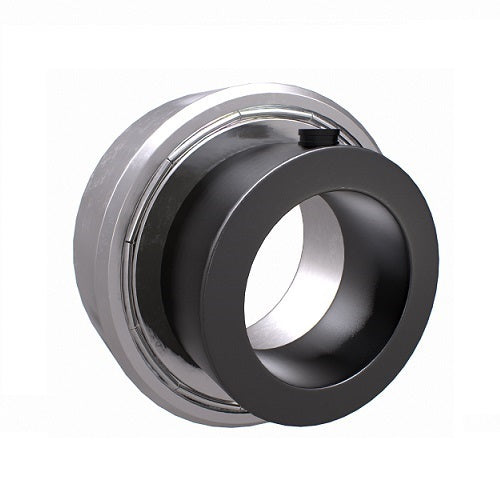

FYH SAA206-18FP7 Insert Bearing, 1 1/8 in Bore, Eccentric Collar, Cylindrical O.D.
Available
This page covers 4 FYH SAA200 series insert bearings (SAA202-10FP7 to SAA206-18FP7) with an eccentric locking collar and a cylindrical O.D., bore sizes 5/8 to 1 1/8 in (imperial). Choose the size from the drop-down: each variant has its own dimensions, load ratings and mass in the Model Details.
The SAA type is the SA eccentric collar insert made with a cylindrical O.D. It is for press-fit mounting directly into machinery and cannot be mounted in traditional housings.
Where this product is used
- Machinery with a machined bore that takes a cylindrical O.D. insert
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Cylindrical O.D. for press-fit mounting directly into component machinery
- Eccentric locking collar: the collar engages the inner ring and a set screw is tightened to hold it
- Not self-aligning and not for mounting in traditional housings
- Light duty series
- Basic dynamic load rating Cr 9.55 to 19.5 kN and static rating C0r 4.8 to 11.3 kN (see the Model Details for each size)
Key specifications
| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with eccentric locking collar and cylindrical O.D. |
| Models | SAA202-10FP7 to SAA206-18FP7 (4 sizes) |
| Bore diameter d | 5/8 to 1 1/8 in (imperial) |
| Outer diameter D | 40 to 62 mm |
| Inner ring width B | 21.5 to 23.8 mm |
| Outer ring width C | 15 to 18 mm |
| Locking | Eccentric locking collar with a set screw |
| Outer ring | Cylindrical O.D. |
| Duty | Light |
| Basic dynamic load rating Cr | 9.55 to 19.5 kN |
| Basic static load rating C0r | 4.8 to 11.3 kN |
| Brand | FYH (FYH Inc., Japan) |
Available sizes

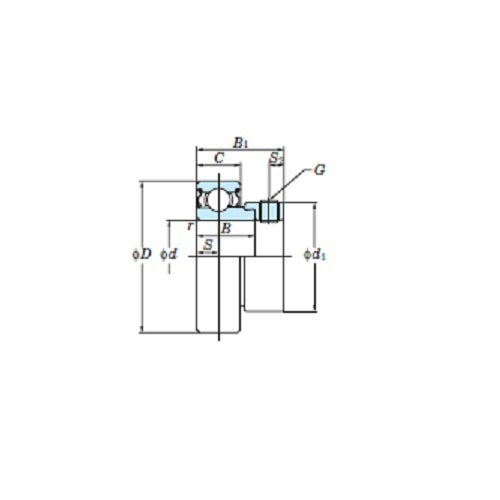

| Model | Bore d | O.D. D (mm) | Width B (mm) | Cr (kN) | C0r (kN) | Mass (kg) |
|---|---|---|---|---|---|---|
| SAA202-10FP7 | 15.88 mm (5/8 in) | 40 | – | 9.55 | 4.8 | – |
| SAA204-12FP7 | 19.05 mm (3/4 in) | 47 | 21.5 | 12.8 | 6.65 | 0.19 |
| SAA205-14FP7 | 22.22 mm (7/8 in) | 52 | – | 14 | 7.85 | – |
| SAA206-18FP7 | 28.57 mm (1 1/8 in) | 62 | 23.8 | 19.5 | 11.3 | 0.34 |
A dash means the catalogue gives no figure for that exact model number, so none is shown. The catalogue has no row under the designations SAA202-10FP7 and SAA205-14FP7: O.D., Cr, C0r and f0 are taken from the catalogue row of the same size number, and the width and mass are not shown.
Selecting the right option
Every size on this page has an imperial (inch) bore. The drop-down shows the shaft size in inches; the Model Details give the bore in mm with the inch size in brackets. Metric shafts need the metric version of the insert.
SAA inserts have a cylindrical O.D. for a press fit directly into machinery and are not self-aligning. For an insert that sits in a traditional housing, use the SA type.
Fitting and use
Check the load against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor.
Press-fit the insert into a machined bore. It is not self-aligning, so the bore must be machined square to the shaft. Fit the collar against the inner ring and tighten its set screw.
Related products
Related FYH insert bearing pages: SAA200 insert bearings, 20 to 40 mm bore (metric), SA200 insert bearings, 12 to 40 mm bore (metric), SA200 insert bearings, 1/2 to 1 1/2 in bore (imperial) and SA200 insert bearings, 7/8 to 1 7/16 in bore (imperial). Single-model pages in this range: SAA201-8FP7, SAA203, SAA205-16FP7, SAA206, SAA206-20FP7 and SAA207-20FP7.
