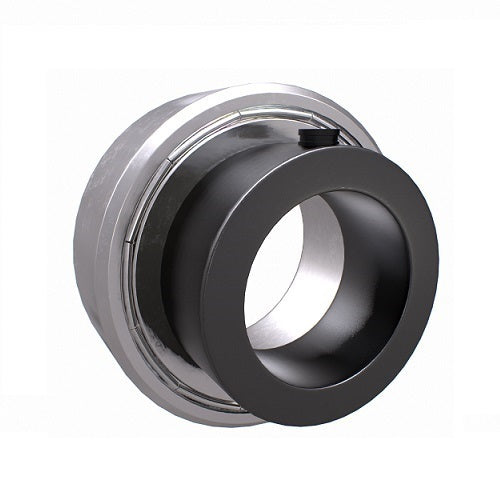

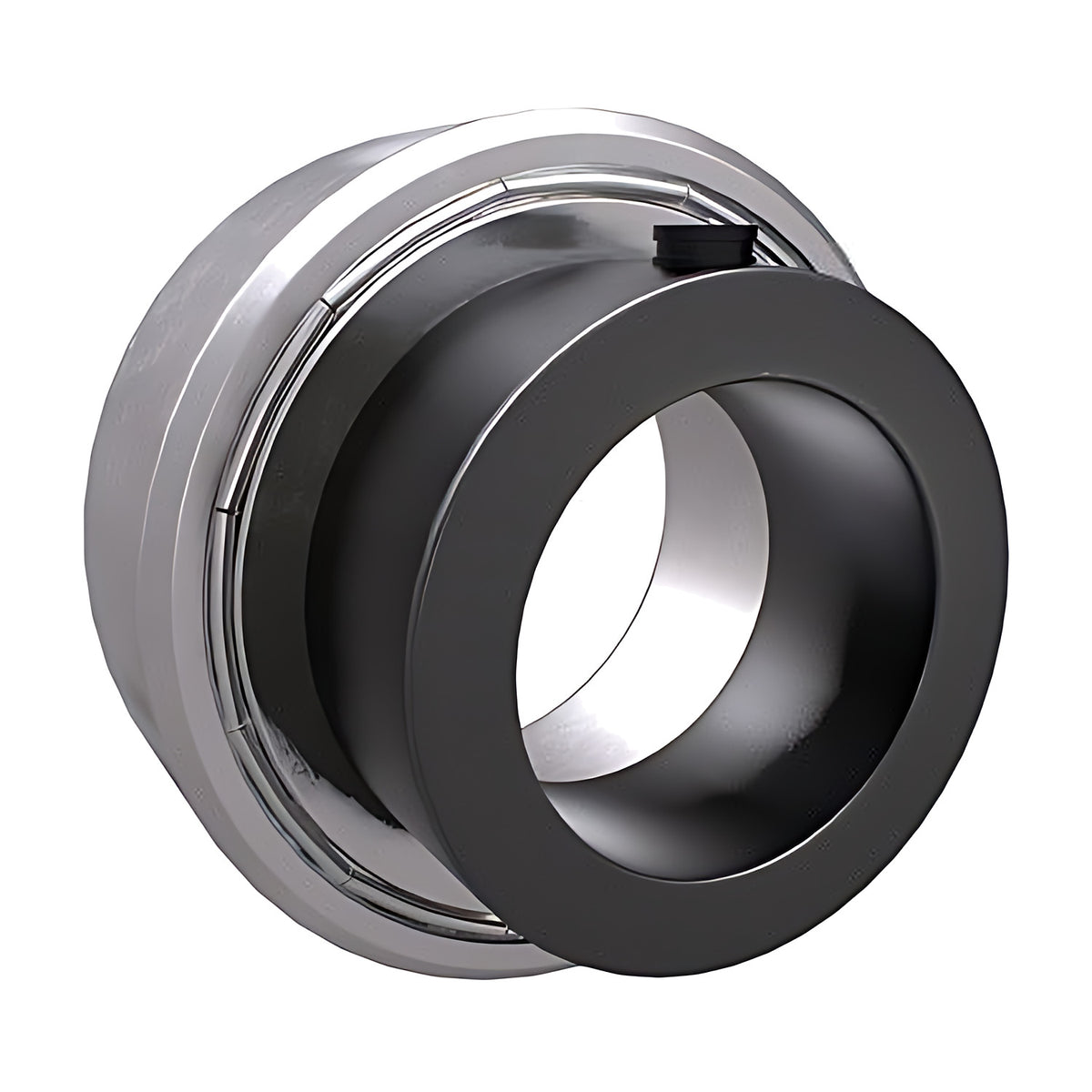

FYH SAA206 Insert Bearing, Eccentric Collar, Cylindrical O.D., 30 mm Bore (Metric)
Available
FYH SAA206 is an eccentric collar insert bearing with cylindrical O.D. with a 30mm bore. It measures 62mm O.D., with a basic dynamic load rating of 19.5kN and a static rating of 11.3kN. It has an eccentric locking collar and a cylindrical O.D. for press-fit mounting directly into machinery; it is not self-aligning and cannot be mounted in traditional housings.
Where this product is used
- Machinery with a machined bore that takes a cylindrical O.D. insert
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Eccentric locking collar for a 30mm shaft: the collar engages the inner ring and a set screw is tightened to hold it
- Cylindrical O.D. for press-fit mounting directly into machinery, not self-aligning and not for traditional housings
- Basic dynamic load rating Cr 19.5kN and static rating C0r 11.3kN
- Type: Insert bearing (deep groove ball bearing) with eccentric locking collar and cylindrical O.D

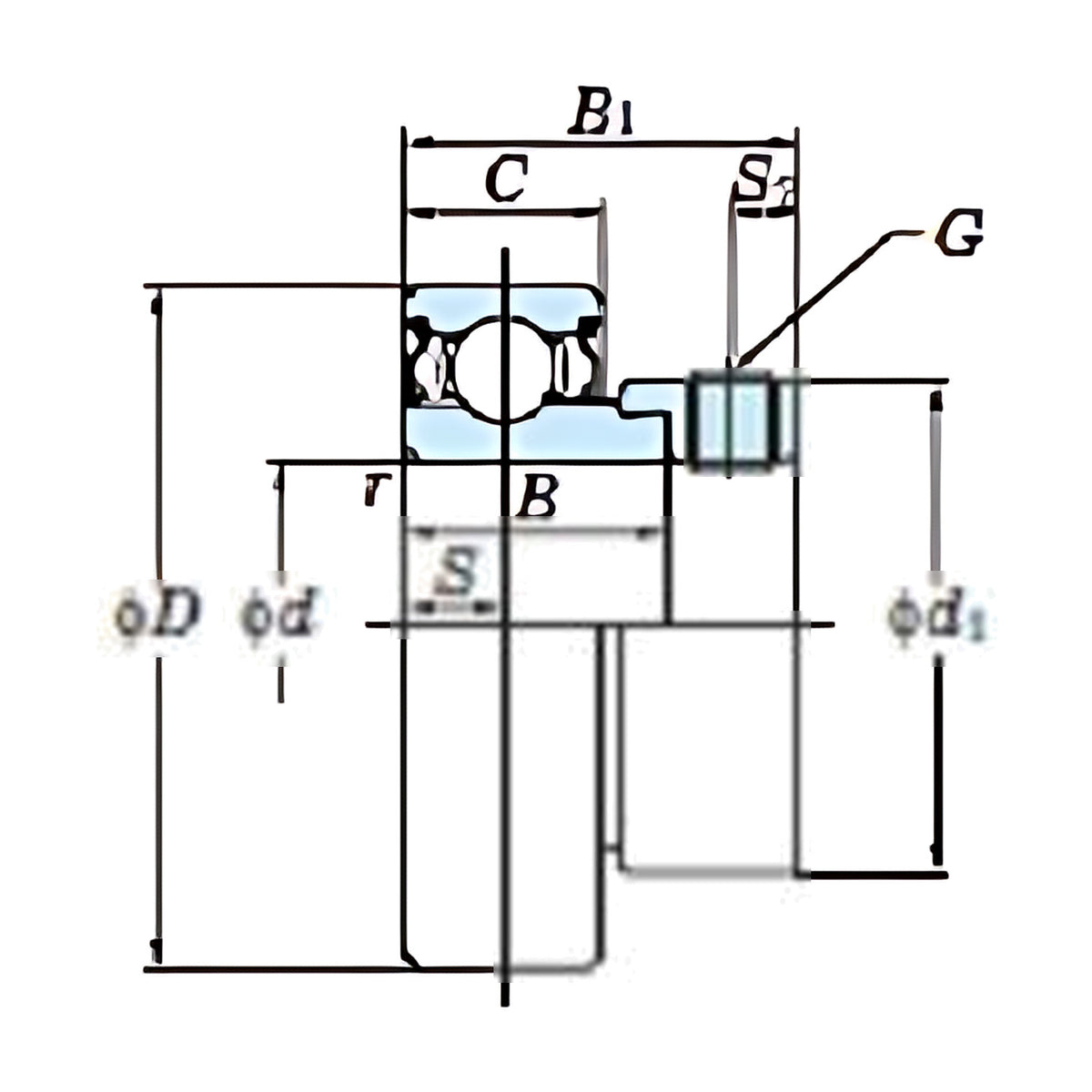

Key specifications
| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with eccentric locking collar and cylindrical O.D |
| Product type | Insert Bearing |
| Model | SAA206 |
| Bore diameter d | 30mm |
| Outer diameter D | 62mm |
| Locking | Eccentric locking collar with a set screw |
| Outer ring | Cylindrical O.D |
| Duty | Light |
| Basic dynamic load rating Cr | 19.5kN |
| Basic static load rating C0r | 11.3kN |
| Factor f0 | 13.9 |
| Data basis | SAA206FP7 but no row under the designation SAA206. O.D., Cr, C0r and f0 are taken row SAA206FP7 (same size number) |
| Brand | FYH (FYH Inc., Japan) |
Fitting and use
Press-fit the insert into a machined bore. It is not self-aligning, so the bore must be machined square to the shaft. Fit the collar against the inner ring and tighten its set screw.
Choosing the right option
If you need another shaft size, the related pages below list the other sizes in this range.
Metric bores are in mm: match the bore to the shaft you have.
O.D., Cr, C0r and f0 are taken row SAA206FP7 (same size number).
See also: SAA200 insert bearings, 5/8 to 1 1/8" bore (imperial), SAA200 insert bearings, 20 to 40mm bore (metric), SA200 insert bearings, 1/2 to 1 1/2" bore (imperial), SA200 insert bearings, 7/8 to 1 7/16" bore (imperial).
