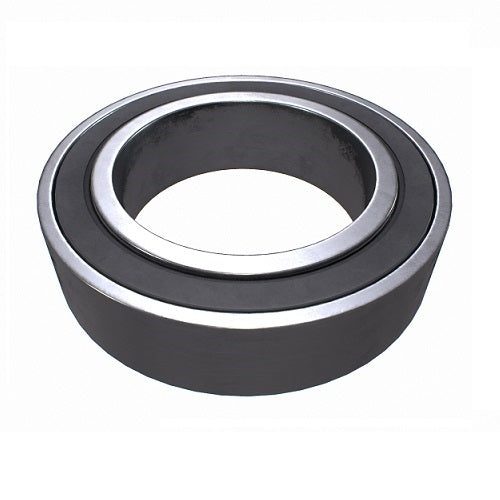

FYH SC203 Insert Bearing, 17 mm Bore, Spherical O.D., 40 mm O.D.
Available
This page covers 2 FYH SC200 series insert bearings (SC203 to SC204) with a non-extending inner ring and a spherical O.D., bore sizes 17 and 20 mm (metric). Choose the size from the drop-down: each variant has its own dimensions, load ratings and mass in the Model Details.
The SC insert has a non-extending inner ring and a spherical O.D., so it mounts in a traditional housing, and its bore tolerance is more precise than typical mounted bearings, which allows press-fit shaft mounting.
Where this product is used
- Replacement insert for a plummer block or pillow block unit
- Replacement insert for flange and take-up housings with a matching spherical bore
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Non-extending inner ring with a spherical O.D., so it mounts in a traditional housing
- More precise bore tolerance than typical mounted bearings, which allows press-fit shaft mounting
- Light duty series
- Basic dynamic load rating Cr 9.55 to 12.8 kN and static rating C0r 4.8 to 6.65 kN (see the Model Details for each size)
Key specifications

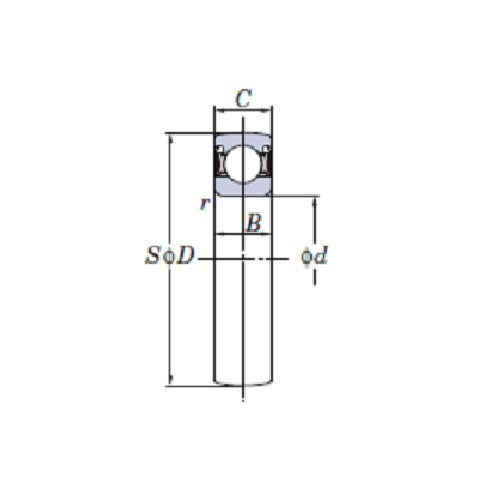

| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with non-extending inner ring and spherical O.D. |
| Models | SC203 and SC204 (2 sizes) |
| Bore diameter d | 17 and 20 mm (metric) |
| Outer diameter D | 40 to 47 mm |
| Inner ring width B | 12 to 14 mm |
| Outer ring width C | 12 to 14 mm |
| Locking | None built in (press-fit shaft mounting) |
| Outer ring | Spherical O.D. |
| Duty | Light |
| Basic dynamic load rating Cr | 9.55 to 12.8 kN |
| Basic static load rating C0r | 4.8 to 6.65 kN |
| Brand | FYH (FYH Inc., Japan) |
Available sizes
| Model | Bore d (mm) | O.D. D (mm) | Width B (mm) | Cr (kN) | C0r (kN) | Mass (kg) |
|---|---|---|---|---|---|---|
| SC203 | 17 | 40 | 12 | 9.55 | 4.8 | 0.1 |
| SC204 | 20 | 47 | 14 | 12.8 | 6.65 | 0.15 |
Selecting the right option
Every size on this page has a metric bore (shaft sizes in mm). Match the bore to the shaft you have: an inch shaft needs the imperial version of the same insert, which is a different size.
SC inserts have a spherical O.D. and a non-extending inner ring with no built-in locking device, so the shaft is press-fitted. If you need a built-in locking method, see the related pages below.
Fitting and use
Check the load against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor.
Because the inner ring is non-extending, plan for a press fit on the shaft, and keep the housing bore matched to the spherical O.D.
If you are unsure which insert suits a shaft and housing, send AIMS the part numbers or sizes and we will confirm the fit.
