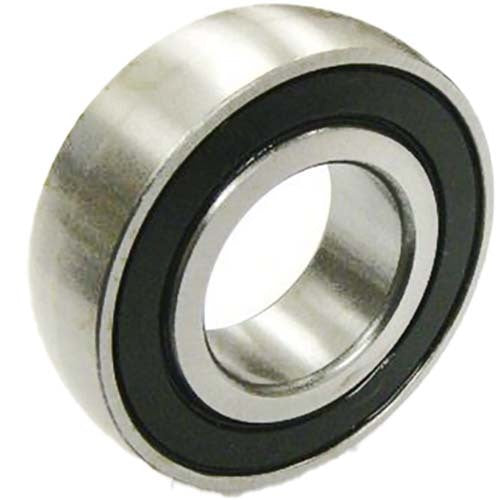

FYH SC206 Insert Bearing, Spherical O.D., 30 mm Bore (Metric)
Available
FYH SC206 is an insert bearing with non-extending inner ring with a 30mm bore. It measures 62mm O.D. by 16mm inner ring width, with a basic dynamic load rating of 19.5kN and a static rating of 11.3kN. It has a non-extending inner ring and a spherical O.D., so it mounts in a traditional housing, and the more precise bore tolerance allows press-fit shaft mounting. It belongs to the light duty SC series.
Where this product is used
- Replacement insert for a plummer block or pillow block unit
- Replacement insert for flange and take-up housings with a matching spherical bore
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Non-extending inner ring with a 30mm bore for press-fit shaft mounting
- Spherical O.D. for housings with a matching spherical bore
- Basic dynamic load rating Cr 19.5kN and static rating C0r 11.3kN
- Type: Insert bearing (deep groove ball bearing) with non-extending inner ring and spherical O.D
Key specifications
| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with non-extending inner ring and spherical O.D |
| Product type | Insert Bearing |
| Model | SC206 |

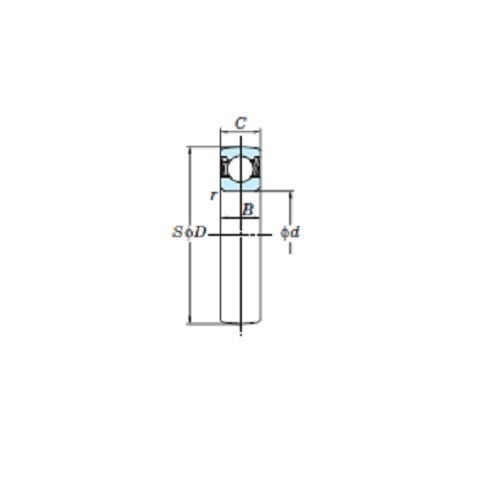

| Bore diameter d | 30mm |
| Outer diameter D | 62mm |
| Inner ring width B | 16mm |
| Outer ring width C | 16mm |
| Locking | None built in (press-fit shaft mounting) |
| Outer ring | Spherical O.D |
| Duty | Light |
| Basic dynamic load rating Cr | 19.5kN |
| Basic static load rating C0r | 11.3kN |
| Factor f0 | 13.9 |
| Mass | 0.27kg |
| Brand | FYH (FYH Inc., Japan) |
Fitting and use
Because the inner ring is non-extending, plan for a press fit on the shaft, and keep the housing bore matched to the spherical O.D.
Choosing the right option
If you need another shaft size, the related pages below list the other sizes in this range.
Metric bores are in mm: match the bore to the shaft you have.
See also: SC200 insert bearings, 17 and 20mm bore (metric), SC200 insert bearings, 25 and 35mm bore (metric), SA200 insert bearings, 1/2 to 1 1/2" bore (imperial), SA200 insert bearings, 7/8 to 1 7/16" bore (imperial).
