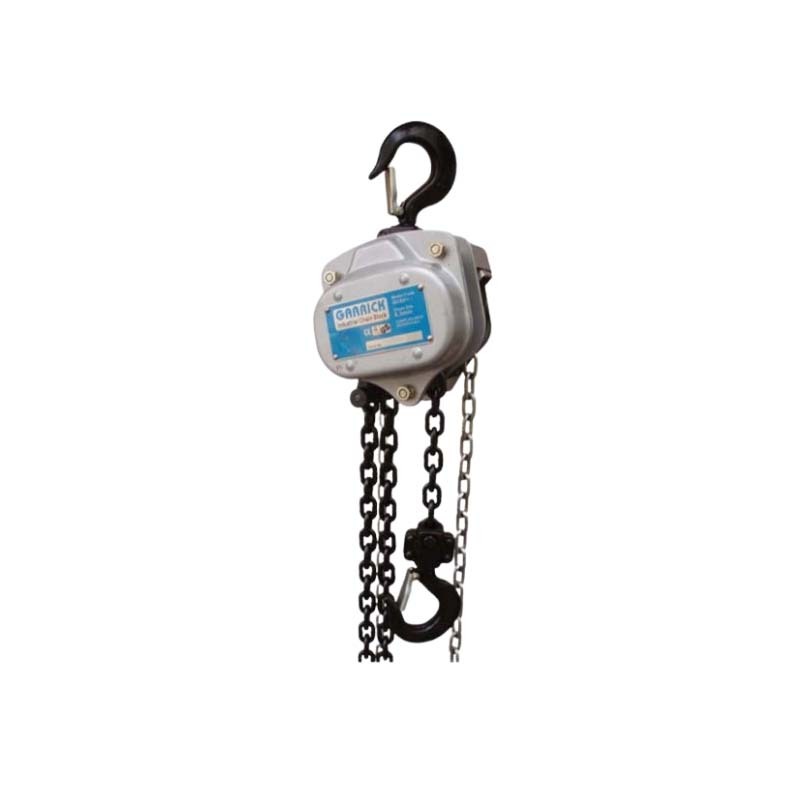

Garrick Herbert load limited chain block, 0.5T / 3m

The Garrick Industrial Chain Block Load Limited is an all steel chain block with factory-set overload protection, in capacities from 0.5T to 10T with a 3 m or 6 m lift. It uses Grade 80 alloy steel load chain, from 5.0mm to 9.0mm by capacity, with a spring safety latch on every hook.

A test certificate and instruction manual are supplied with every chain block. The blocks comply with AS/NZS 1418.2.

Where this product is used

• Lifting and lowering loads from a fixed point, beam or trolley in workshops and on site
• Maintenance lifts where a hand-operated chain block with overload protection is wanted

Features

• Overload protection factory set, designed to prevent abuse, damage or unsafe practice
• Robust all steel construction
• Super strength alloy steel chain, Grade 80
• Spring safety latch fitted to all hooks
• Durable stainless steel labels
• Test certificate and instruction manual supplied with every chain block

Key specifications

Choosing the right option

Select the capacity so the load never exceeds the rated capacity, and the lift so the chain reaches the working height. The 10T block is available in a 6 m lift only. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

For a compact 0.25T block see the: Garrick 0.25T chain block.

To hang a block from a beam see the: Garrick girder clamps, Garrick geared trolleys.
