*** This is old stock but in good condition. There are no returns. You are welcome to inspect at our office if required..***

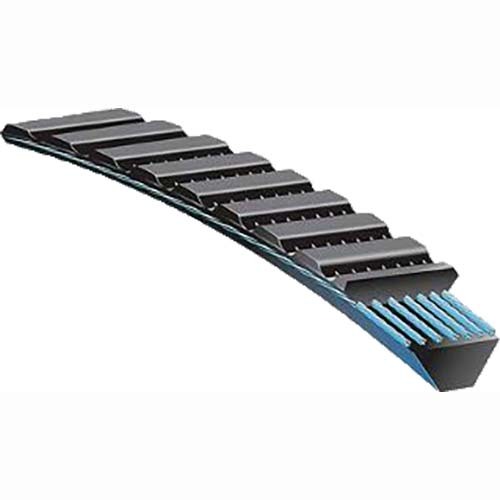

Gates Polyflex V-Belt

• This compact and strong belt with nominal top width from 3mm to 11mm transmits more power and allows high speed ratios
• Polyflex® is suited for extremely small diameter pulleys and very compact drives with high rotational speeds
• Ideal for use on machines and machine tools requiring high performance and smooth operation in limited space such as bench type milling machines, lathe drives, woodworking and metalworking machine spindle drives, computer peripheral equipment, small blowers, etc.

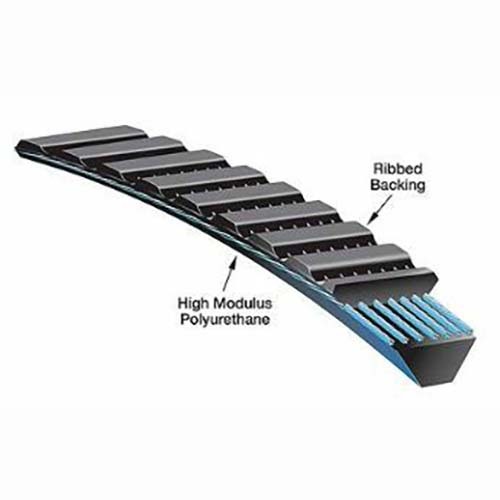

Construction

• Polyurethane compound, superior to conventional belt materials, offers high fatigue and wear resistance and high friction coefficient
• It also improves adhesion to the polyester tensile cords
• Polyurethane is extremely resistant to heat, chemicals and oil
• Uniformity throughout Polyflex® is ensured because the polyurethane compound is not layered but cast as a single unit after the positioning of the polyester tensile cords in the mold
• Ribbed top provides lateral rigidity without increasing bending stresses
• The ribs also help to keep Polyflex® belts running cool
• 60º angle results in better support of the tensile section and provides a more even load distribution

Advantages

• Design freedom and space savings which are not possible with conventional rubber construction belts
• Extremely smooth and cool running
• Low maintenance cost as belt needs less retensioning
• Long belt life on compact drives
• Back idlers can be used
• Smaller drive package

Temperature Range

• -54°C to +85°C
