*** This is old stock but in good condition. There are no returns. You are welcome to inspect at our office if required..***

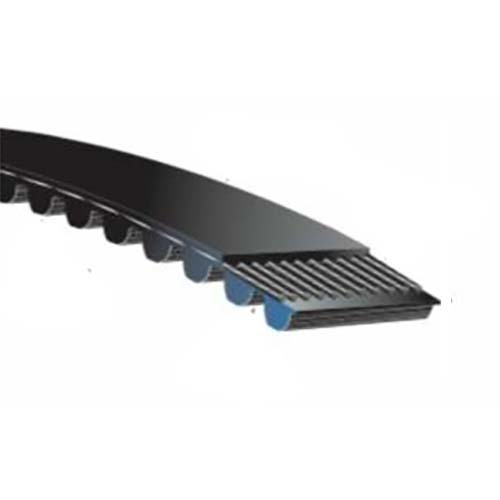

Gates PowerGrip GT3 Timing Belt, 8MGT Section

• This technically advanced belt covers the widest range of industrial applications. The Powergrip® GT3 synchronous belt transmits up to 30% more offer than previous generation belts. This entire belt range (8MGT & 14MGT) is designed to run on existing drives and does not require any adaptation of the system.
• The 8MGT and 14MGT pitches are the optimum choice for high performance drives in the machine tool, paper, and textile industries where durability and low maintenance are required.
• Ideally suited on ACHE (air cooled heat exchangers) for maximum efficiency and optimum air flow. 8MGT and 14MGT are static conductive to ISO 9563 and are the premium belt for use in petroleum and liquid natural gas plants. An easy upgrade to existing HTD systems without the need to change sprockets.

Construction

• GT® (Gates Tooth) modified curvilinear tooth profile
• Neoprene body provide protection against grime, grease, oil and moisture
• Fibreglass tensile cords
• Tough nylon facing protects and reinforces the tooth surface.

Advantages

• Static conductive to ISO 9563
• Substantially increased offer ratings: up to 30% more than previous constructions
• Reduced maintenance costs due to the belts longer service life
• Compact, light-weight, and cost effective drives
• High tooth jump resistance
• High efficiency positive drive
• Eliminates contamination
• Maintenance free
• operates on HTD® or PowerGrip® GT® Sprockets
• Back idlers can be used

Temperature Range

• Range: -30°C to + 100°C

Dimensions

• Section: 8MGT
• Pitch: 8 mm
• Pitch Length: 1200 mm
• Teeth: 150
• Belt Width: 20 mm
• Teeth Depth (T): 3.4 mm
• Depth (B): 5.6 mm
