Description +

** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

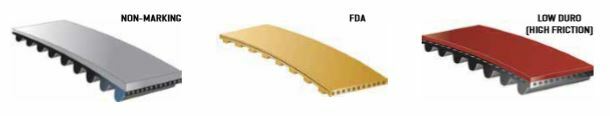

Gates offer a range of PowerGrip® synchronous belts with various style backings including Micro-V® and custom compounds
Micro-V® backings are used in synchronous applications that require synchronisation on one shaft and have the ability to run a pulley o? the back of the belt, as in ?our mill and some vacuum cleaner applications

Construction

Similar in construction to our standard PowerGrip® synchronous belts
Micro-V® backing
Neoprene body provide protection against grime, grease, oil and moisture
Fibreglass tensile cords
Tough nylon facing protects and reinforces the tooth surface.

Advantages

Micro-V® allows for slip due to shock loads
No lubrication required
No need for constant re-tensioning

Specifications +

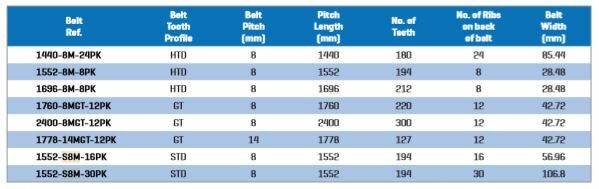

Dimensions

Section: S8M
Pitch: 8 mm
Pitch Length: 1552 mm
Teeth: 194
Belt Width: 106.8 mm

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

Gates 1552-S8M-30PK Micro-V Custom Backed S8M Section

SKU: A0026956

Type: Powergrip - Curvilinear Pitch

$488.57

Inc. GST

Out of stock

The Powergrip Gates 1552-S8M-30PK Micro-V Custom Backed S8M Section is a robust industrial timing belt. With a Micro-V backing, it's ideal for synchronous applications. Its neoprene body, 1552 mm pitch length, and 106.8 mm width resist grime and moisture.
