Gates 7401-0076 15kg Belt Tension Tester

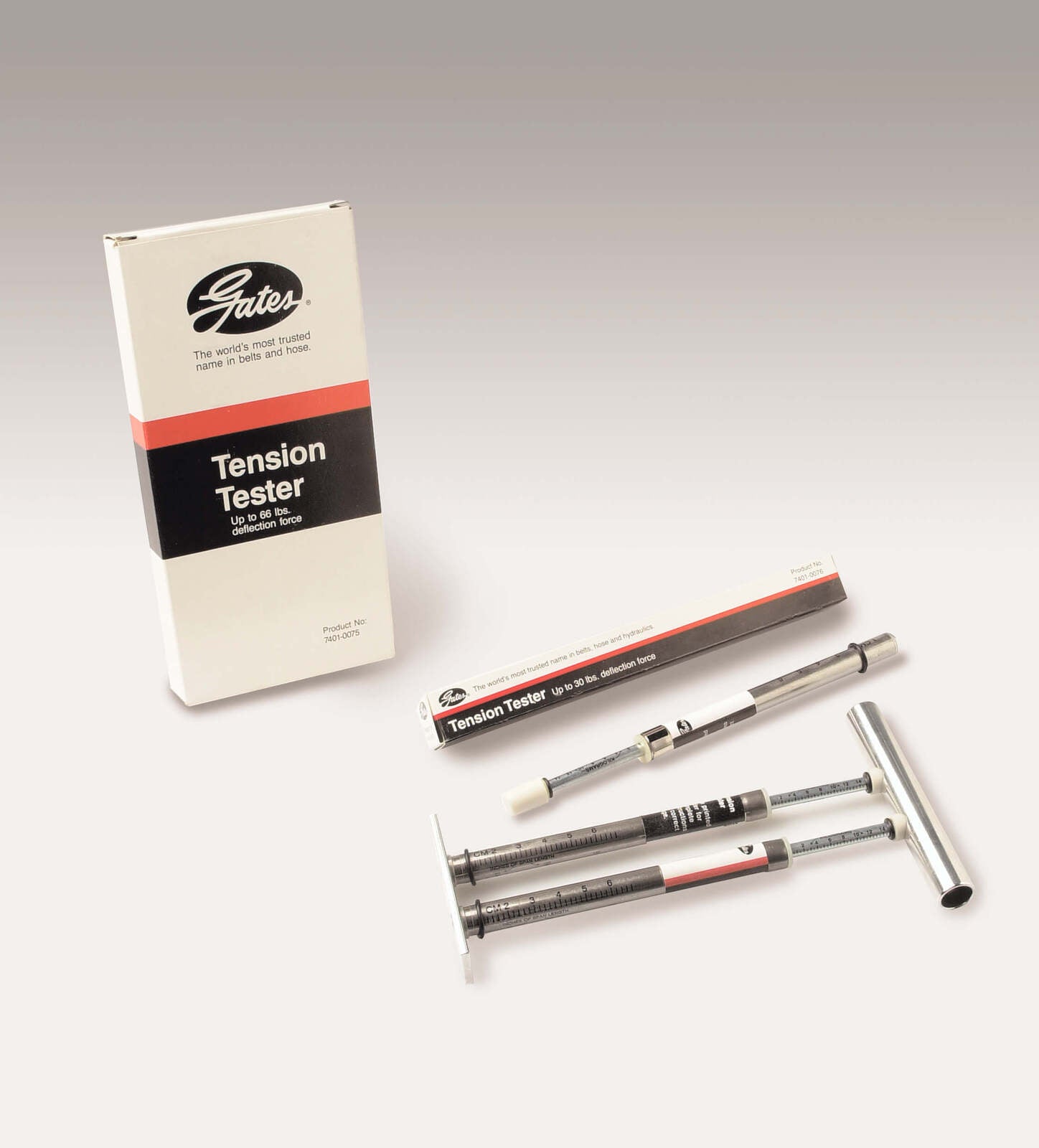

The Gates Single Barrel (Pencil Type) Tension Tester (15kg / 30lb) is a spring-barrel gauge used to accurately measure the tension of individual or joined belts during installation and maintenance. It is rated for small V-belts and synchronous belts, and is one of two barrel testers Gates offers for servicing belt drives — it is the lighter-duty companion to the 30kg double-barrel tester.

Where this product is used

Gates belt tension gauges ensure drives are set to the correct tension — a key factor in belt life and drive efficiency. Typical uses include:

• Belt tensioning and verification during scheduled drive maintenance and belt replacement
• Commissioning of new drives to confirm correct tension before start-up, reducing early-life belt failures
• Preventive maintenance programmes across fleet, mining and manufacturing facilities

Key specifications

Selecting the right option

Use the 30kg double-barrel tester for multiple (banded) V-belts and large synchronous belts; use the 15kg single-barrel (pencil type) tester for smaller individual V-belts and synchronous belts. For the most accurate reading on any belt type, the Gates 550C Sonic Tension Meter measures tension electronically without a barrel gauge. Correct tension avoids two failure modes — too loose causes slippage and belt wear, too tight overloads bearings and shortens belt and bearing life. Contact AIMS if you’re not sure which tester suits your drive.
