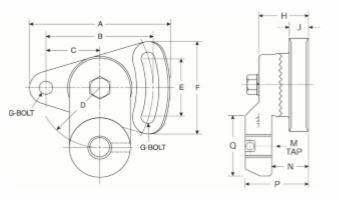

Gates 20-IDL-BRAK (7720-1020) Idler Bracket

This is the Gates 20-IDL-BRAK (7720-1020) Idler Bracket.

This Gates idler bracket is a precision drive component for maintaining correct belt tension and wrap angle in Gates belt drive systems. Using genuine Gates idler components ensures the drive geometry matches the published Gates drive design, maintaining belt life and power transmission efficiency, item 7720-1020.

Where this product is used

• Belt drive systems requiring a fixed or adjustable idler mounting point for correct belt wrap
• Gates Draftguard and enclosed belt drive assemblies where idler positioning is critical to performance

Features

• Compatible with 1610-IDL-BUSH 8mm pitch idler sprockets and 4.25" OD flat idler pulleys
• Also compatible with 2012-IDL-BUSH, 2517-IDL-BUSH and 20-IDL-BUSH (SK) bushings
• Compatible with 14mm pitch sprockets and 6.50" OD flat pulleys via 30-IDL-BUSH (SF) and 40-IDL-BUSH (E) bushings
• 1-14 UNC threaded mount

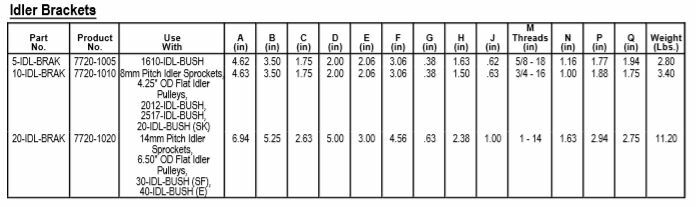

Key specifications

Choosing the right option

Select the idler bracket by the Gates drive series and idler size it is designed to support.

Product details
