Gates 375-3MGT-9 PowerGrip GT3 Timing Belt, 3MGT Section 9400-53320
Available
This is the Gates 375-3MGT-9 PowerGrip GT3 Timing Belt, 3MGT Section 9400-53320.
The Gates PowerGrip GT3 3MGT section synchronous belt features a modified curvilinear tooth profile for smooth, low-noise engagement and high positional accuracy. It is the standard industrial synchronous belt for precision drives in automation, robotics and packaging machinery, item 9400-53320.
Where this product is used
- Hand tools, business machines and domestic appliances
- High-precision servomotor drives and automation/robotics equipment
- New drive designs and performance upgrades on existing roller-chain or timing-belt drives
Features
- Zero-slip positive drive
- Fibreglass tensile cord for stretch resistance
- Compatible with matching Gates pulleys
- Industrial-grade synchronous transmission
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 3MGT |
| Series | PowerGrip GT3, optimised GT tooth profile synchronous belt |
| Available Stock Sizes (Gates range) | 99 to 2061mm pitch length |
| Belt Code | 375-3MGT-9 (pitch length + pitch + width in mm) |
| Drive Type | Industrial Synchronous |

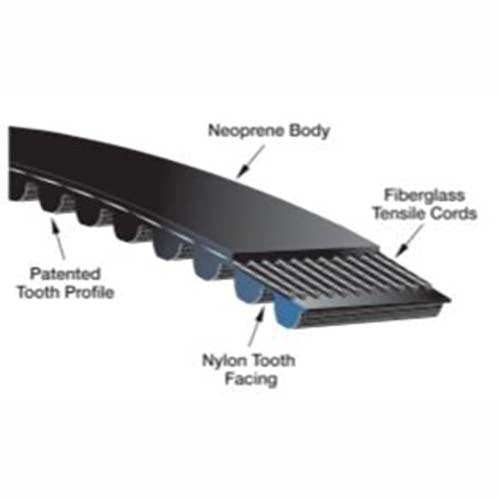

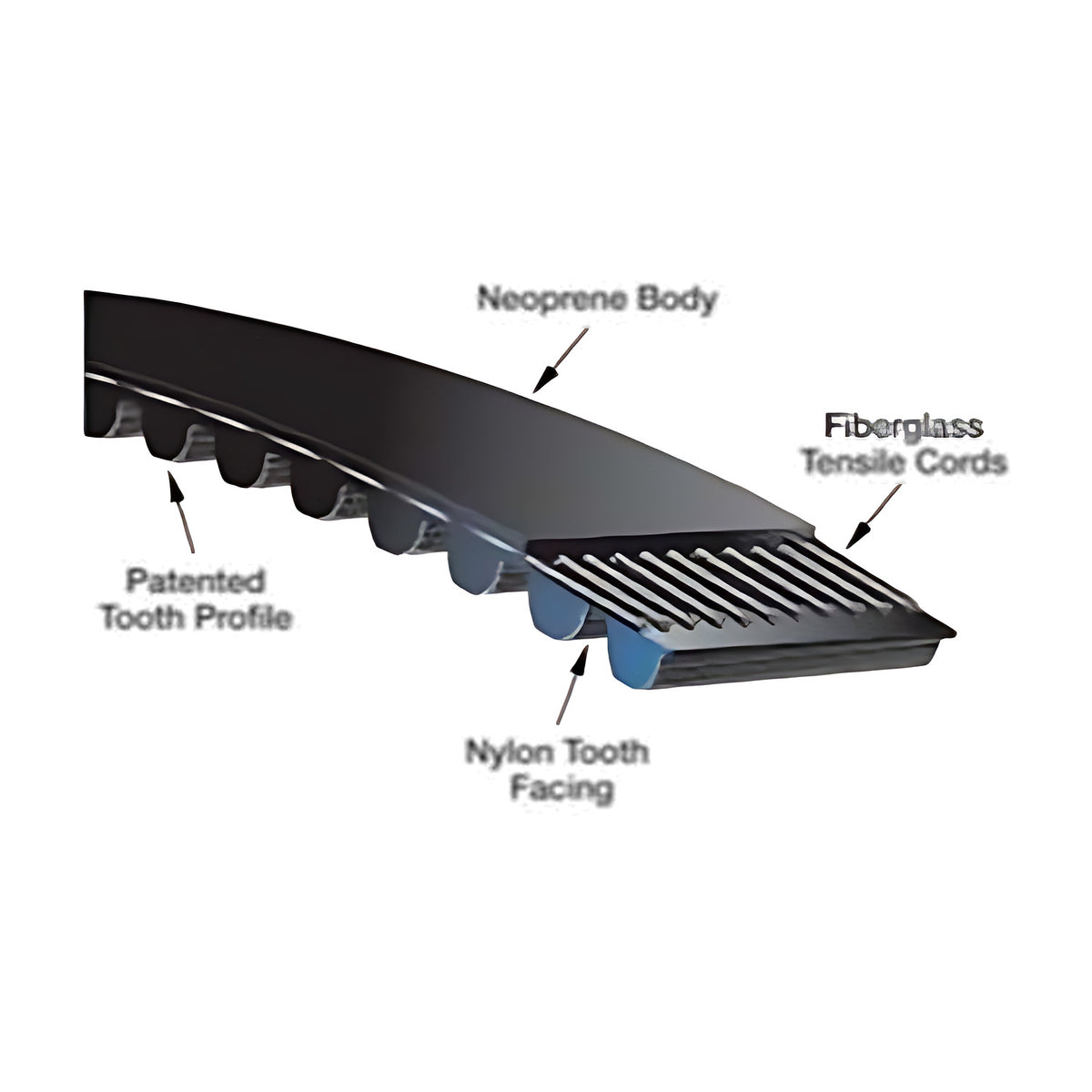

| Construction | Fibreglass tensile cord, neoprene body resists grime, grease, oil and moisture, nylon tooth facing |
| Temperature Range | -30°C (-22°F) to +100°C (+212°F) |
Choosing the right option
Select by pitch (2MGT/3MGT/5MGT for GT3; 3M/5M/8M/14M/20M for HTD) and belt width to suit your drive, or cross-reference by pitch length + pitch + width (e.g. 600-5MGT-15 = 600mm pitch length, 5MGT pitch, 15mm wide). See our Poly Chain GT Carbon range.
Product details
| Part number | 9400-53320 |
|---|---|
| Brand | Gates |
| Product type | Timing Belt |
