Gates 3L540 Truflex Light Duty V Belt (8400-1540)
Available

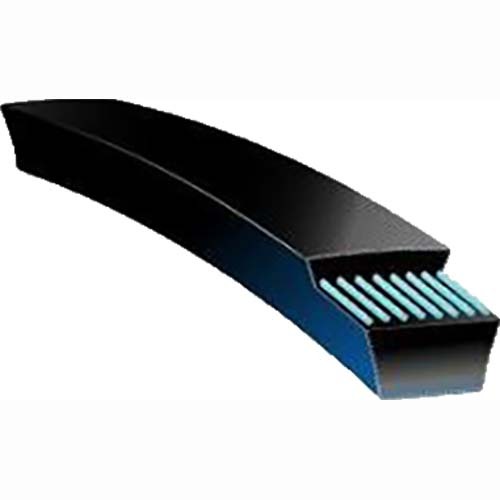

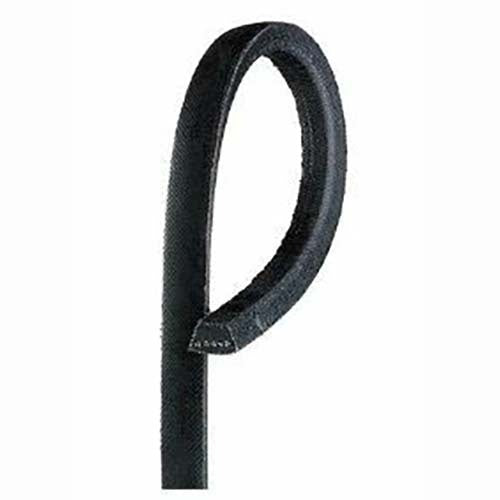

This is the Gates 3L540 Truflex Light Duty V Belt (8400-1540).
Gates Truflex is a light-duty, wrapped fractional-horsepower (FHP) V-belt built for small drives that don't need a heavy-duty section, such as auxiliary automotive drives (electric windows, wiper motors, central locking) as well as light industrial and domestic FHP equipment, item 8400-1540.
Where this product is used
- Auxiliary automotive drives, electric windows, wiper motors and central locking systems
- Small pumps, fans, power tools and domestic appliances built around FHP-section belts
- Backside-idler drives, where Truflex's low cord positioning improves performance
Features
- Bias-cut polyester cover for resistance to oil and heat
- Notched undercord for added flexibility
- Fractional HP applications
- Available in 2L, 3L, 4L and 5L sections
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 3L |
| Belt Series | Truflex, light-duty, wrapped FHP V-belt |
| Available Stock Sizes (Gates range) | 11 to 74" outside circumference |

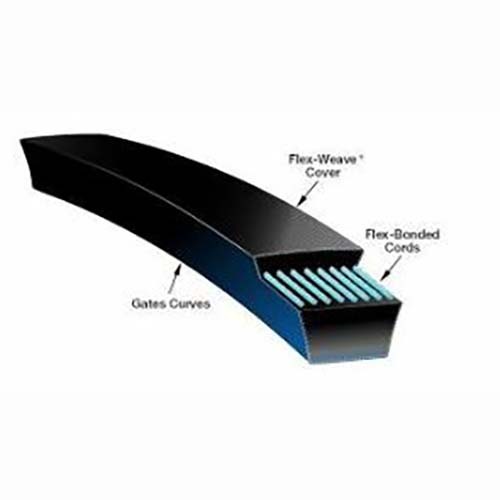

| Construction | Gates Curves for uniform sheave-groove loading, Flex-Bonded cords, Flex-Weave oil- and heat-resistant cover |
| Standards | Meets ARPM/RMA IP-3-2 oil and heat resistance, ARPM/RMA IP-3-3 static conductivity, REACH and RoHS 2 compliant |
| Temperature Range | -30°C (-22°F) to +60°C (+140°F) |
| Belt Code | 3L540 |
Choosing the right option

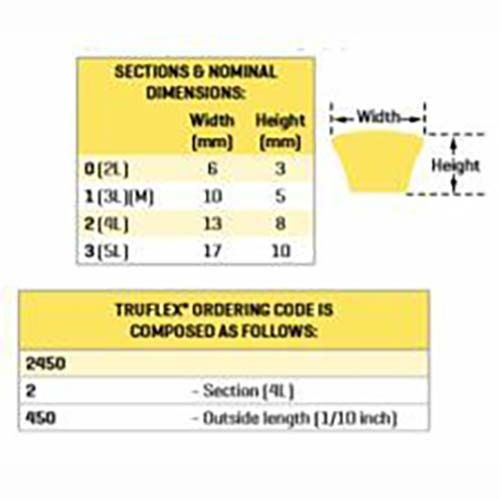

Select by section (2L, 3L, 4L or 5L, width increases with the number) then by outside circumference or the OE/existing belt part number.
Product details
| Part number | 8400-1540 |
|---|---|
| Section | 3L |
| Belt Length (mm) | 1372 |
| Material | Rubber compound with polyester tensile cord, fabric jacket |
| V-Belt Code | 3L540 |
