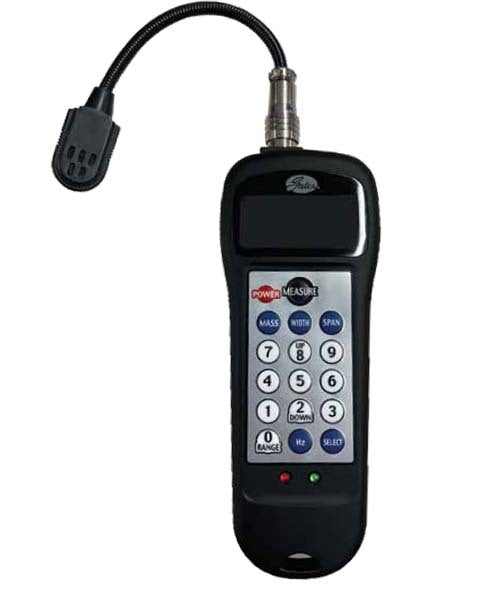

Gates 550C (7420-0550) Sonic Tension Meter
Available
The Gates 550C Sonic Tension Meter is an electronic instrument that reads the natural vibration frequency of a free belt span and instantly computes static belt tension from that frequency plus the belt span length, width and type. It works on V-belts and synchronous belts alike, reads out in pounds, kilograms, newtons or hertz, and shares its sensor range with Gates' 505C/507C/508C sonic meters, so existing Flat Flexible, Cord or Inductive sensors carry across the family.
Where this product is used
- Belt tensioning and verification during scheduled drive maintenance and belt replacement
- Commissioning of new drives to confirm correct tension before start-up, reducing early-life belt failures
- Preventive maintenance programmes across fleet, mining and manufacturing facilities
Features
- Reads sound waves from the belt via the sensor for an accurate, instant tension measurement
- Belt pretension data can be determined using Gates DesignFlex Pro drive design software
- Available in three variants: SONIC 550C (standard), SONIC 550C Cord Sensor, and SONIC 550C Inductive Sensor
- OLED display with optimised resolution
- Auto-shutdown after 5 minutes of inactivity
Key specifications
| Specification | Detail |
|---|---|
| Item Code | 7420-0550 |
| Measurement Method | Sonic, reads belt vibration frequency |
| Output Units | Lb, kg, N or Hz (switchable) |
| Frequency Range | 10 to 5,000 Hz |
| Compatible Belt Types | V-belts and synchronous (timing) belts |
| Auto Gain Control | Yes, automatically adjusts sensor sensitivity |
| Sensor Compatibility | Shares sensors with Gates 505C/507C/508C meters (Flat Flexible 7420-0205, Cord 7420-0206, Inductive 7420-0212) |
| Brand | Gates |
Choosing the right option
The 550C is the most accurate tension-measurement method Gates offers, it reads any belt type without contacting the belt, which makes it worth having on critical or high-value drives. For a lower-cost field option, see our 15kg (1-Barrel) and 30kg (2-Barrel) mechanical tension testers. If you already own a 505C, 507C or 508C meter, your existing sensors are compatible with the 550C.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates 550C (7420-0550) Sonic Tension Meter
SKU: A0167998 | Model: 7420-0550
Part No: 7420-0550. Accuracy: ±1%. Belt Types: V / Multi-ribbed / Synchronous.
