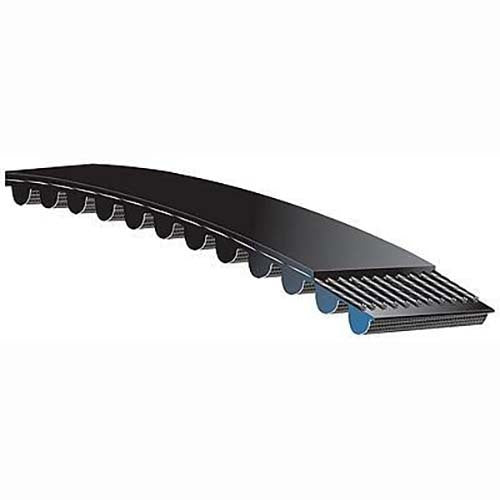

Gates Powergrip HTD Synchronous Belt

• PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, once machines, electric hand tools and for applications in the processing and chemical industry.

Construction

• Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
• Fibreglass tensile cords
• Tough nylon facing protects and reinforces the tooth surface
• Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt

Advantages

• No slippage. PowerGrip® HTD® belt teeth mesh smoothly with pulley grooves, reducing speed variations
• Wide speed range, 3M and 5M are designed for belt speeds up to 80m/s
• Constant angular velocity
• Economical operation. No lubrication is needed, no need for adjustment due to stretch and wear.
• High mechanical efficiency. The belt construction minimises heat build-up and since friction is not required to transmit the load, belt tensions are reduced
• Maintenance free
• Back idlers can be used

Temperature Range

• Range: -30°C to +100°C
