Gates 7M2240 (8903-2240) Polyflex Belt
Available

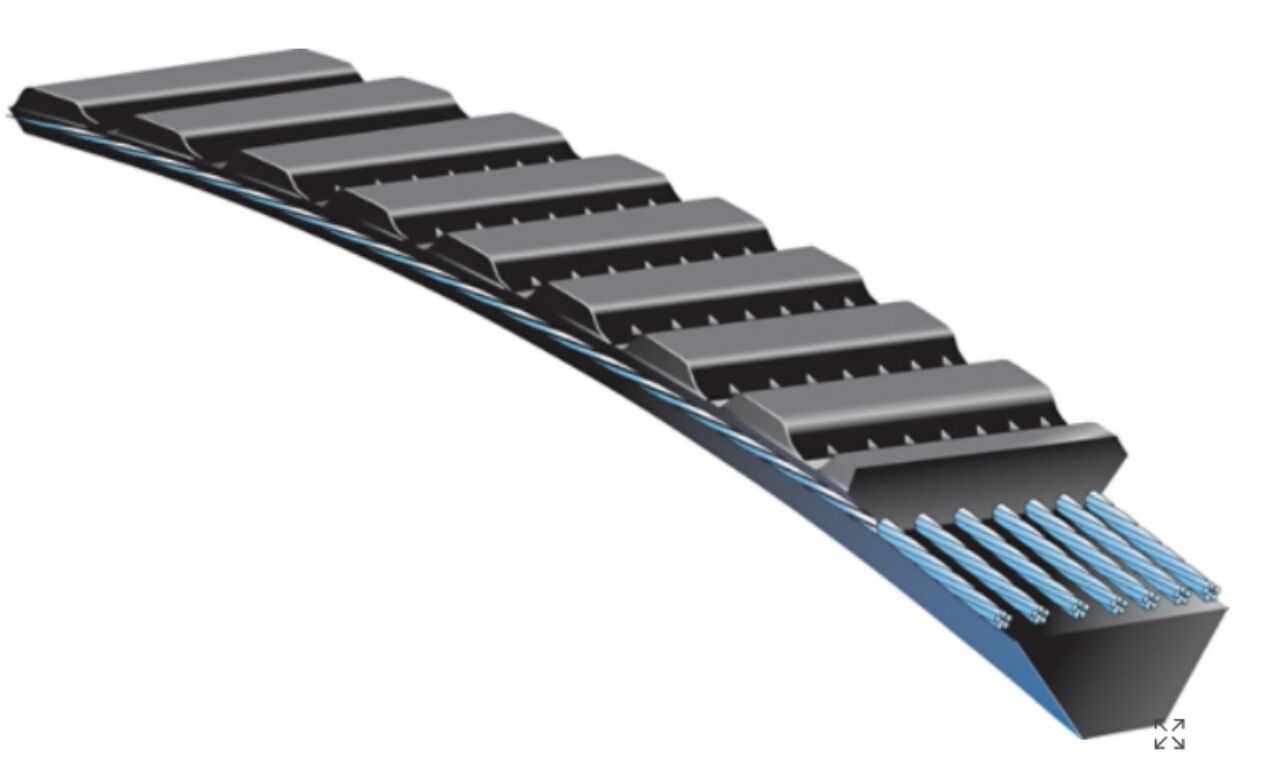

This is the Gates 7M2240 (8903-2240) Polyflex Belt.
Gates Polyflex is a ribbed-back, high-modulus polyurethane V-belt built for small, multiple-V-belt precision drives. It carries more load at higher speeds than a conventional rubber V-belt in the same space, with a precise cast construction (no layers or overlaps) for smooth, low-vibration running, item 8903-2240.
Where this product is used
- Bench-type milling machines, lathe drives and woodworking/metalworking machine spindle drives
- Computer peripheral equipment and small blowers
- Any multiple-V-belt precision drive needing more load capacity in a compact envelope
Features
- Belt Section: 7M
- Belt Series: Polyflex

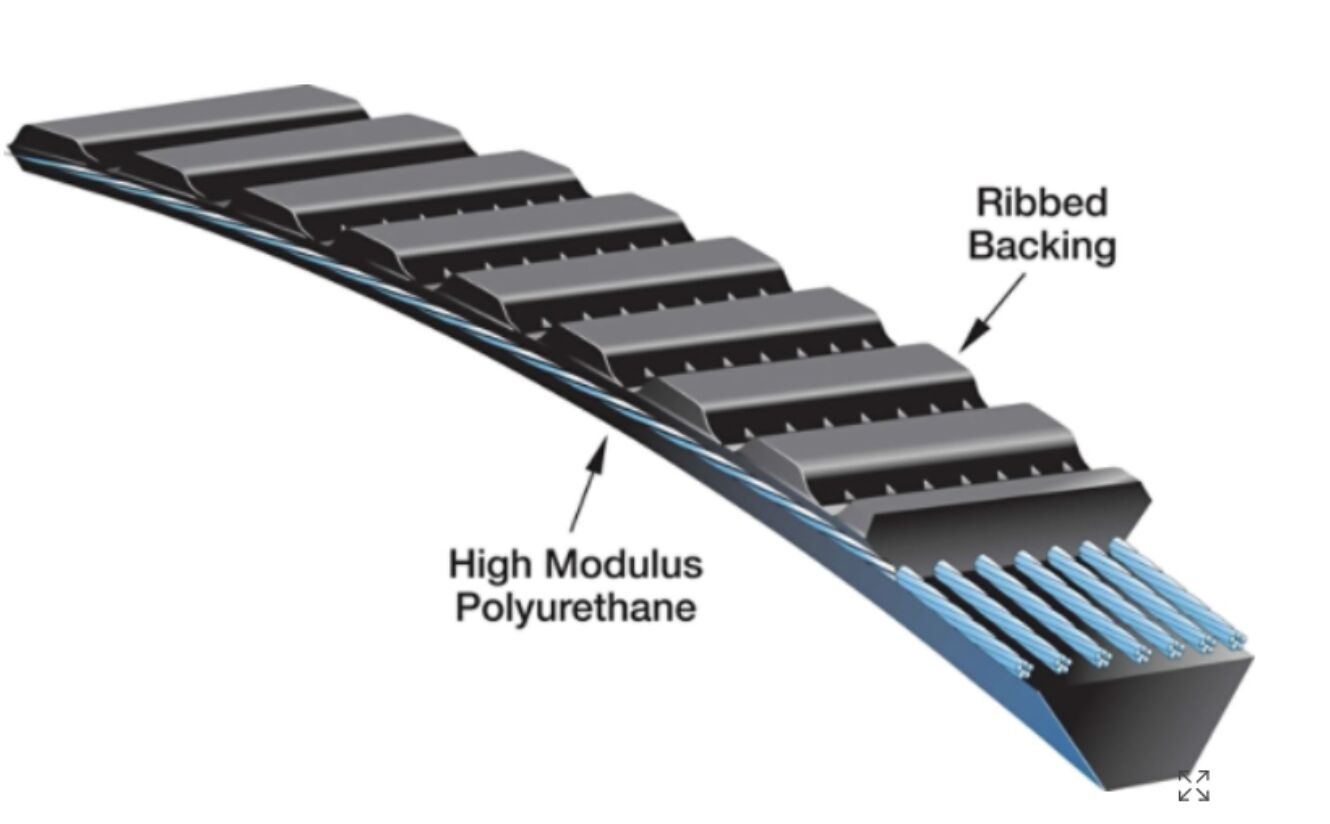

- Construction: High-modulus polyurethane body, ribbed backing for lateral stability, 60° angle construction for even load distribution
- Available Stock Sizes (Gates range): 16 to 90" (JB: 16 to 91")
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | 7M |
| Belt Series | Polyflex |
| Construction | High-modulus polyurethane body, ribbed backing for lateral stability, 60° angle construction for even load distribution |
| Available Stock Sizes (Gates range) | 16 to 90" (JB: 16 to 91") |
| Temperature Range | -54°C (-65°F) to +82°C (+185°F) |
Choosing the right option
Select by cross-section (3M, 5M, 7M or 11M, the number is the top width in mm) and effective length. Gates Polyflex JB (joined) belts are the banded equivalent for multi-groove sheaves, giving matched-set performance without the strand-to-strand variation of separately-fitted singles.
Product details
| Part number | 8903-2240 |
|---|---|
| Brand | Gates |
| Product type | V-Belt |
